Maytag JDS8860BDP17 Parts List

Popular Searches: (Click to search)    15k  2oz  anti  black  bracket  door  dual  gasket  holder  meat  module  orifice  paint  pressurized  spark  spray  superior  tip  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Door Parts

03 - Chassis Parts

04 - Manifold Parts

05 - Drawer And Rack Parts

06 - Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Door Parts 03 - Chassis Parts 04 - Manifold Parts 05 - Drawer And Rack Parts 06 - Optional Parts (not Included)

02 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP7701P475-60	Handle, Door	$182.50 Special Order
2	74006889	Nameplate	$40.90 Special Order
3	3804F293-45	Retainer, Door Glass	$11.70 Special Order
4	W10167659	Backplate	$17.60 Special Order

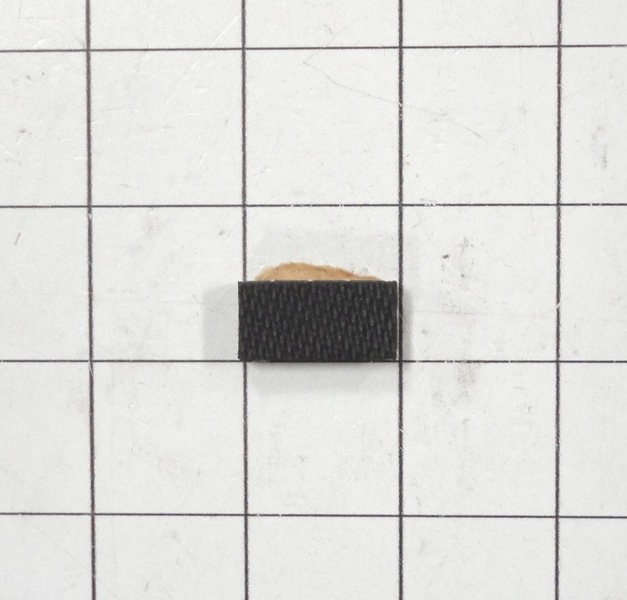

5	WP74005546	Spacer, Rubber	$6.10 Special Order
6	WP4159193	Screw	$2.40  In-Stock Retail: $2.25
7	WP90767	Screw	$4.80  In-Stock Retail: $4.59

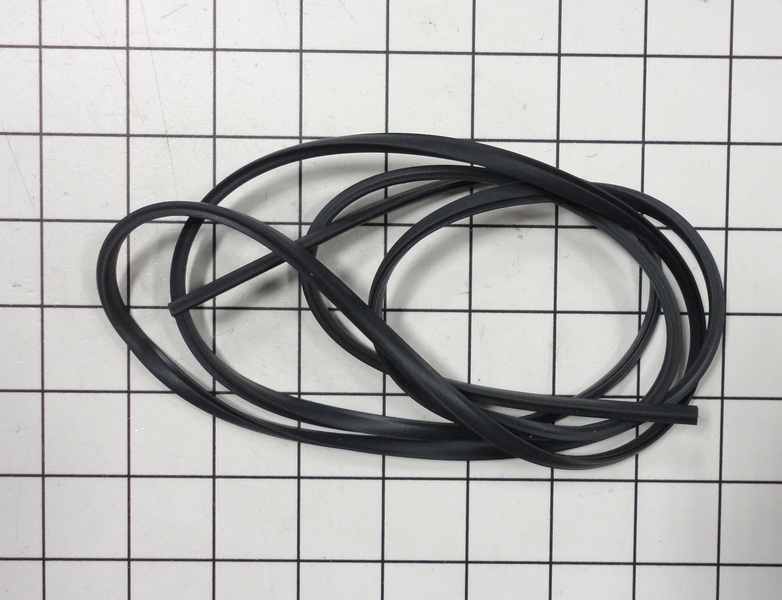

8	WP74009029	Gasket, Door Top	$97.10 Special Order
9	WPW10162384	Gasket, Door (Replaces: W10162384)	$92.10  In-Stock Retail: $89.78

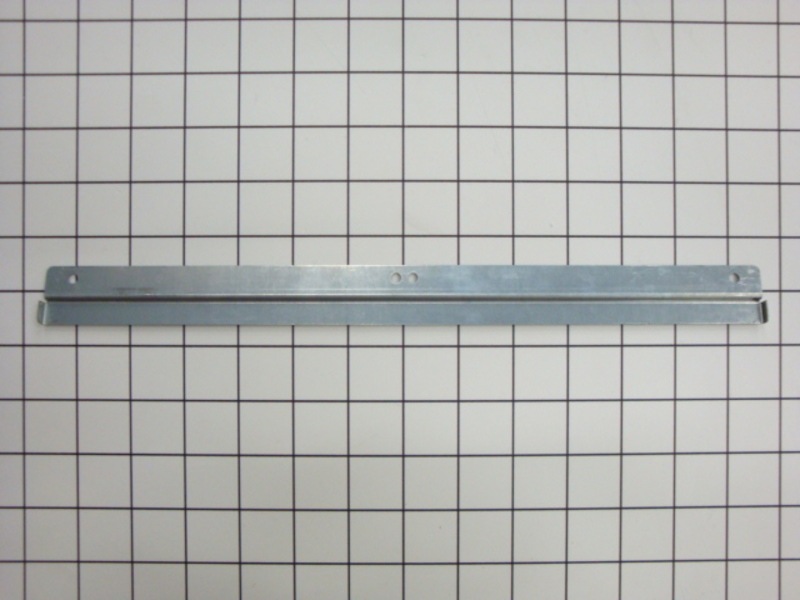

10	3801F886-51	Bracket, Glass	$24.80 Special Order
11	W11347848	Screw	$8.70 Special Order
12	74003645	Glass, Inner (2)	$134.00 Special Order
13	WP98008545	Screw	$11.60  In-Stock Retail: $11.31
14	3604F418-51	Shield, Door	$50.50 Special Order
15	74004857	Glass, Door (inner Coated)	$83.80 Special Order
16	7760P158-60	Panel, Door	$152.30 Special Order
17	3804F317-80	Retainer, Glass	$62.80 Special Order
18	3601F373-51	Baffle, Door	$167.00 Special Order

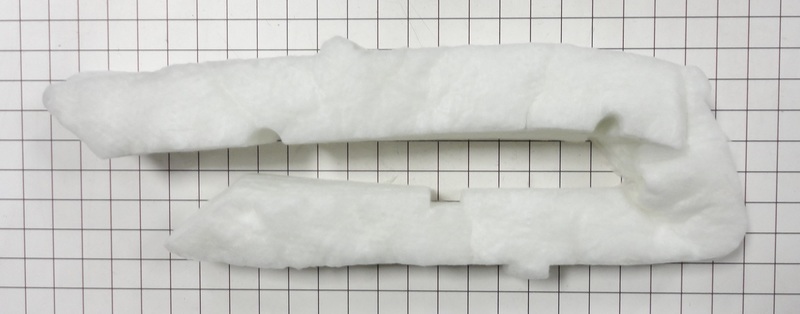

19	7002P246-60	Insulation, Door	$43.00 Special Order

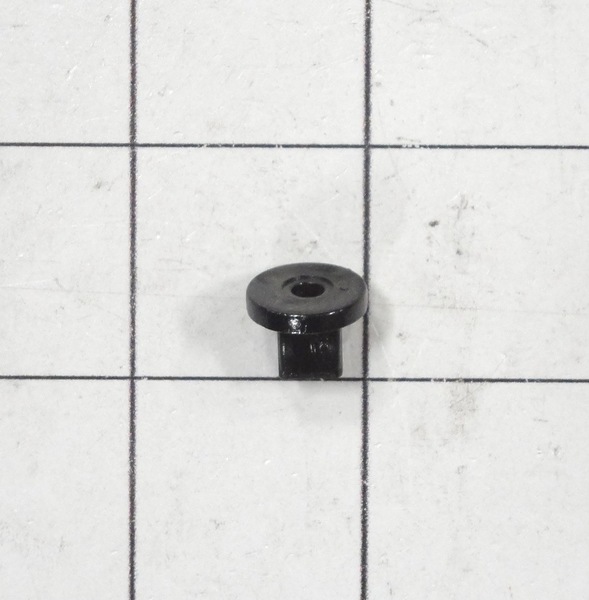

20	WP74001574	Nut, Snap	$6.70 Special Order
21	WP2402W312-19	Lining, Door   (Replaces: 2402W312-19)	$334.00 Special Order
22	74011475	Hinge, Door	$85.80  In-Stock Retail: $83.62
23	3804F307-51	Retainer, Glass (right Side)	$76.60 Special Order
	3804F308-51	Retainer, Glass (left Side)	$26.40 Special Order
