Frigidaire CRG3150LQE Parts List

Popular Searches: (Click to search)    assy  burner  front  harness  holder  ignitor  kit  module  mtg  orifice  oven  probe  right  screw  sealed  spark  temp  top  tube  valve


Select a Diagram

03 - Backguard

05 - Burner

07 - Body

09 - Top/drawer

11 - Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Burner 07 - Body 09 - Top/drawer 11 - Door 01 - Cover

03 - Backguard   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	316281800	Shield,backguard ,rear Wall	$38.00 Special Order
15	316411407	Support,backguard ,bisque ,rh	$65.60 Special Order
15A	316411406	Support,backguard ,bisque ,lh	$65.60 Special Order
19	316416094	Panel-back Guard,bisque	Call for Availability

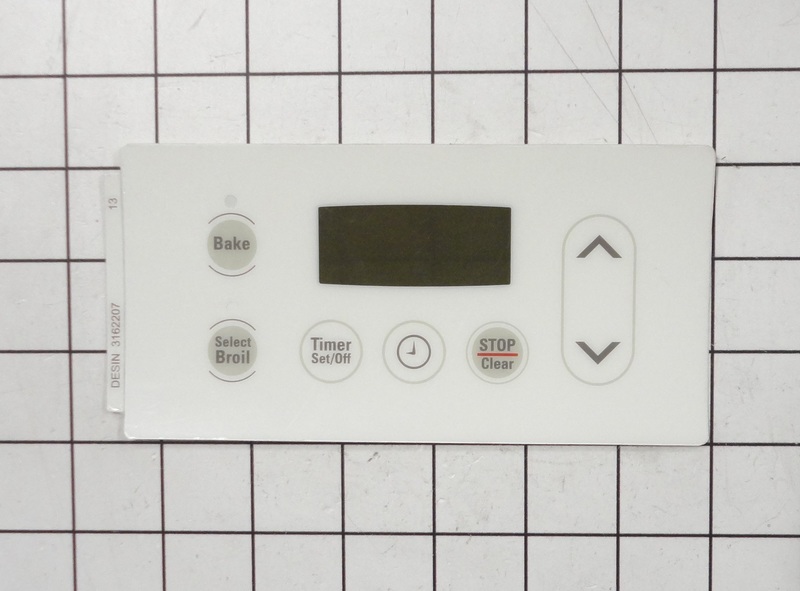

20A	316220702	Overlay,clock ,bisque	$34.90 Special Order
F20	5304518661	Clock/timer,electronic ,es100 (Replaces: 316455410)	$145.10  In-Stock Retail: $141.49
23	316266001	Bracket,clock Mtg	Call for Availability
F24	316448702	Switch,rocker ,bisque ,oven Light	$24.50  In-Stock Retail: $23.86
36	316220010	Knob,top Valve ,bisque ,(4)	$35.80 Special Order
40	316561943	Panel,manifold ,bisque	Call for Availability
42	316416202	Trim,extrusion ,tan	$77.30 Special Order
56	316230701	Shield,backguard ,inner	$44.60 Special Order
NI	316089500	Screw, 10-16 X .486	$9.80 Special Order
	316021109	Screw,8-18 X 0.5 ,black (Replaces: 316021110)	$10.30 Special Order
	316021109	Screw`8-18 X 0.5 ,chrome	$10.30 Special Order
	316021109	Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105)	$10.30 Special Order
	316021108	Screw,cup Pt ,8-18 X 0.375 ,chrome	$1.60 Special Order
