Frigidaire CFCH15LW2 Parts List

Popular Searches: (Click to search)    18x  assy  gasket  knob  lamp  light  0  capacitor  control  door  fiberglass  hinge  insulation  key  lock  ramp  run  screw  switch  temp


Select a Diagram

03 - Door

05 - Cabinet

07 - System

01 - Cover

Select Diagram ... 03 - Door 05 - Cabinet 07 - System 01 - Cover

03 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	216481211	Gasket-door,white	$155.30  In-Stock Retail: $151.49
2	297090100	Lock Assy	$16.40 Special Order
2A	297090900	Clip,spring	$7.70 Special Order
5	297147700	Key,lock	$5.20  In-Stock Retail: $4.99
9	216829104	Panel-lid	Call for Availability
10	216923001	Plug Button,1/4``,white	$7.20 Special Order
11	216129930	Lid,white	$196.20 Special Order
14	216822900	Switch,light/lamp ,ramp	$50.80  In-Stock Retail: $49.49
15	216846400	Light Bulb/lamp	$45.10 Special Order
16	297139501	Socket,light/lamp ,25 W	$13.90 Special Order
18	216205006	Handle	Call for Availability

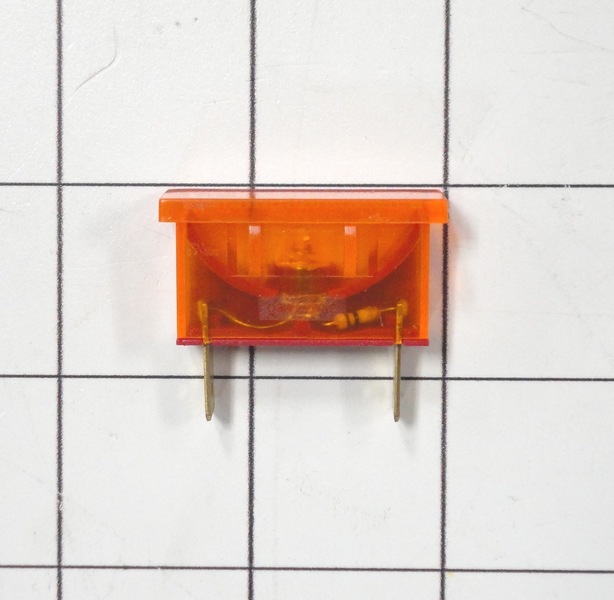

23	297181900	Light,signal ,amber	$12.30 Special Order
27	5303212828	Clip,panel Mtg	$11.80  In-Stock Retail: $11.49
34	297013900	Shield,light	$25.90 Special Order
40	216922700	Fastener,.330 Dia Stud ,handle ,(2)	$8.80 Special Order
56	297015600	Cap,sig Light Seal	$4.50 Special Order
NI	5304406520	Clip,panel Mtg Kit ,(40)	$32.80 Special Order
	216858001	Screw,8-18x.50 Ab ,no.10	$7.70  In-Stock Retail: $7.49
	5303917276	Insulation-door, Fiberglass, (bulk)	$240.40  In-Stock Retail: $234.49
47No.	216819900	Wiring Harness,lid/defrost ,with Light	$62.10 Special Order
