Whirlpool CAM2742TQ3 Parts List

Popular Searches: (Click to search)    agitator  and  brake  breakdown  clutch  complete  dog  drive  for  further  gearcase  includes  page  paint  pressurized  pump  refer  spray  tube  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Control Panel Parts

03 - Meter Case Parts

04 - Rear Panel Parts

05 - Agitator, Basket And Tub Parts

06 - Brake, Clutch, Gearcase, Motor And Pump Parts

07 - Machine Base Parts

08 - Brake And Drive Tube Parts

09 - Gearcase Parts

10 - Water System Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Control Panel Parts 03 - Meter Case Parts 04 - Rear Panel Parts 05 - Agitator, Basket And Tub Parts 06 - Brake, Clutch, Gearcase, Motor And Pump Parts 07 - Machine Base Parts 08 - Brake And Drive Tube Parts 09 - Gearcase Parts 10 - Water System Parts 11 - Optional Parts (not Included)

03 - Meter Case Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10461200	Meter Case   (Replaces: 3406994)	$214.40 Special Order
2	WP385421	Funnel, Coin (Replaces: 385421)	$47.50 Special Order
3	339805	Screw, 10-32 X 3/16	$8.70 Special Order
4	WP90406	Nut, Cage	$4.50 Special Order
5	279950	Plate, Adapter (includes Item 2)	$16.90 Special Order
6	W11715721	Bolt, Meter Case 5/16 - 24 X 1 (4)	$4.60 Special Order

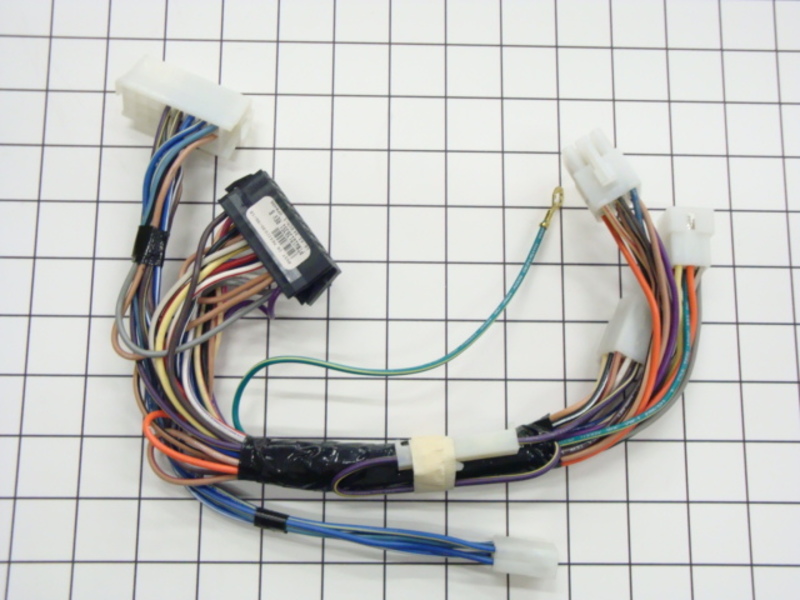

7	W10138351	Harness, Timer	$136.10 Special Order
8	W11283272	Door, Service   (Replaces: 3351136)	$67.40  In-Stock Retail: $65.68
9	WP3400029	Nut, Adapter Plate (3)	$4.80  In-Stock Retail: $4.59
10	WP3954812	Cushion, Case   (Replaces: 3954812)	$19.30  In-Stock Retail: $18.80
11	385575	Bracket, Timer	$69.80 Special Order

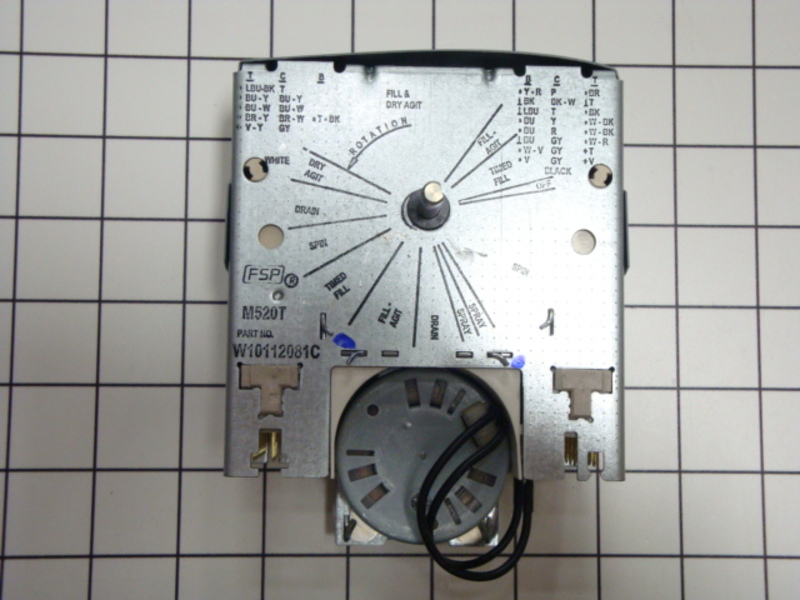

12	WPW10112081	Timer, 60 Hz. (Replaces: W10112081)	$210.80  In-Stock Retail: $205.61
13	90186	Screw, Set (2)   (Replaces: 98654)	$4.40 Special Order
14	WP354987	E-ring (Replaces: 354987)	$7.30 Special Order
	WP385571	Clutch, Timer	$60.60 Special Order
15	WP3400064	Screw, Timer	$4.80 Special Order
16	W10841059	Screw, 10-16 X 3/4	$1.80  In-Stock Retail: $1.74
17	3347825	Plate, Mounting	$4.60 Special Order
19	W11190039	Money Box (includes Key) (Replaces: 8316525)	$153.30  In-Stock Retail: $149.48
20	W11126319	Coin Chute (Replaces: 8316520)	$191.40  In-Stock Retail: $186.68
21	WPW10114740	Key, Service Door   (Replaces: W10114740)	$81.70 Special Order
22	W11315637	Security Lock & Cam Assembly	$43.70  In-Stock Retail: $42.56
23	WP8576635	Bolt, Coin Chute	$46.60  In-Stock Retail: $45.39
24	W11318367	Extension	$23.40  In-Stock Retail: $22.77
25	3400086	Screw, 10-32 X 3/8	$8.20 Special Order
26	4396670	Kit, Chute Decal	$9.30 Special Order
