Whirlpool CAM2742TQ3 Parts List

Popular Searches: (Click to search)    agitator  and  brake  breakdown  clutch  complete  dog  drive  for  further  gearcase  includes  page  paint  pressurized  pump  refer  spray  tube  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Control Panel Parts

03 - Meter Case Parts

04 - Rear Panel Parts

05 - Agitator, Basket And Tub Parts

06 - Brake, Clutch, Gearcase, Motor And Pump Parts

07 - Machine Base Parts

08 - Brake And Drive Tube Parts

09 - Gearcase Parts

10 - Water System Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Control Panel Parts 03 - Meter Case Parts 04 - Rear Panel Parts 05 - Agitator, Basket And Tub Parts 06 - Brake, Clutch, Gearcase, Motor And Pump Parts 07 - Machine Base Parts 08 - Brake And Drive Tube Parts 09 - Gearcase Parts 10 - Water System Parts 11 - Optional Parts (not Included)

01 - Top And Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8316532	Instructions, Coin Kit	Call for Availability
	W10422258	Energy Guide	Call for Availability
	W10135801	Wiring Diagram	Call for Availability
	8315954	Installation, Instructions	Call for Availability
2	WPW10193874	Lid	$212.40 Special Order
3	WP356908	Bumper, Lid	$6.80 Special Order
4	WP356907	Rivet, Plastic	$4.80 Special Order
5	WPW10119828	Screw, Lid Hinge Mounting (4) (Replaces: W10119828)	$4.80  In-Stock Retail: $4.59
6	WP54583	Hinge, Lid (r.h.)   (Replaces: 54583)	$18.40  In-Stock Retail: $17.88
7	WP19119	Bumper, Lid Hinge (Replaces: 19119)	$4.50 Special Order
8	WP8524784	Hinge, Lid (l.h.)	$20.50 Special Order
9	WP3351614	Screw, Ground	$4.80 Special Order
10	WP3400611	Screw, Lid Switch   (Replaces: 3400611)	$0.50 Special Order
11	WP62780	Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780)	$4.80  In-Stock Retail: $4.59
12	358473	Nut, Push-in (2)	$4.50 Special Order
13	WP8524688	Top	$18.30 Special Order
14	WP21258	Bearing, Lid Hinge (2) (Replaces: 21258)	$4.80  In-Stock Retail: $4.59
15	WP8054980	Switch, Lid (Replaces: 8054980)	$100.20  In-Stock Retail: $97.74
16	WP3390631	Screw, 10-16 X 3/8 (Replaces: 3390631)	$4.80  In-Stock Retail: $4.59

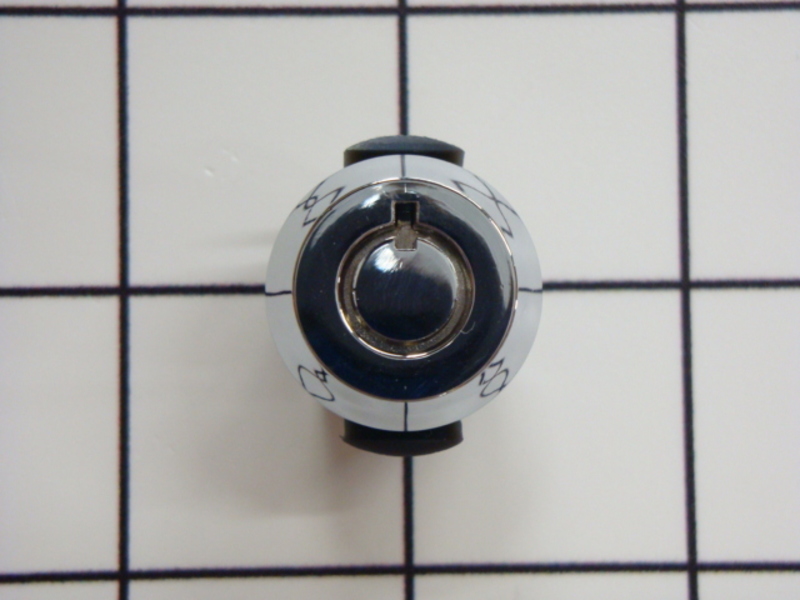

17	WP387371	Plug Lock (Replaces: 387371)	$36.00 Special Order
18	WP62750	Spacer, Cabinet To Top (4)   (Replaces: 62750)	$4.60  In-Stock Retail: $4.59
19	63424	Cabinet	$233.20 Special Order
