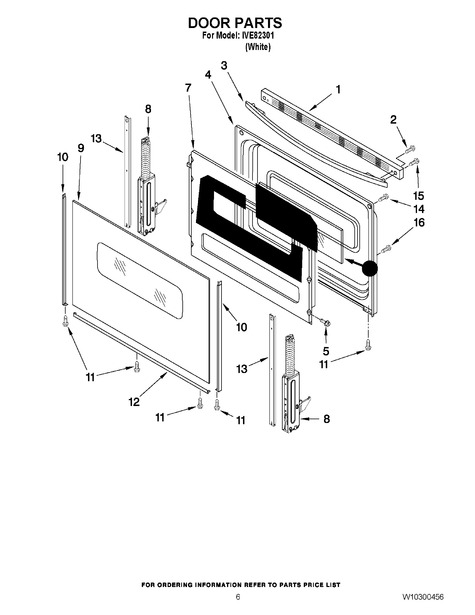

05 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10016370	Trim, Top (white)	$128.00 Special Order
2	WP3196175	Screw	$4.80  In-Stock Retail: $4.59
3	W10204246	Handle, Door (white)	$42.60 Special Order
4	WP9761344	Liner, Door	$212.80  In-Stock Retail: $207.60
5	WPW10031790	Screw (Replaces: W10031790)	$4.80  In-Stock Retail: $4.59
6	WP8053948	Window, Inner	$124.40  In-Stock Retail: $121.33
7	W11685635	Retainer, Insul.	$66.90 Special Order
8	W10347465	Hinge, Door (2)	$70.70 Special Order
9	WPW10118454	Glass,outer (white) (Replaces: W10118454)	$192.50 Special Order
10	WP8523172	Trim, Side (white Left Hand)   (Replaces: 8523172)	$67.00  In-Stock Retail: $65.32
	WP8523166	Trim, Side (white Right Hand)   (Replaces: 8523166)	$67.10  In-Stock Retail: $65.38
11	W10491985	Screw (Replaces: 3196160)	$4.80  In-Stock Retail: $4.59
12	WP8523175	Trim, Lower (white)   (Replaces: 8523175)	$87.30  In-Stock Retail: $85.11
13	W11502236	Strap, Door	$15.00  In-Stock Retail: $14.63
14	W10777162	Screw (Replaces: W10031780)	$4.80  In-Stock Retail: $4.59
15	WP3196164	Screw (Replaces: 3196164)	$4.80  In-Stock Retail: $4.59
16	W10200600	Screw	Call for Availability
