03 - Control Panel/top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74008714	Panel, Backguard (bsq) (Series: 10)	$25.80 Special Order
2	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
	3801F850-51	Bracket, Clock (Series: 10)	$45.40 Special Order
3	74008765	Switch, Rocker (bsq) (Series: 10)	$58.90 Special Order
4	WP74004153	Light, Indicator (Series: 10)   (Replaces: 74004153)	$4.80 Special Order
5	WP7730P011-60	Lens, Indicator Light (Series: 10)	$3.50 Special Order
6	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
	WP7403P239-60	Switch, Infinite (lrg Element) (Series: 10) (Replaces: 7403P239-60)	$33.50  In-Stock Retail: $49.21

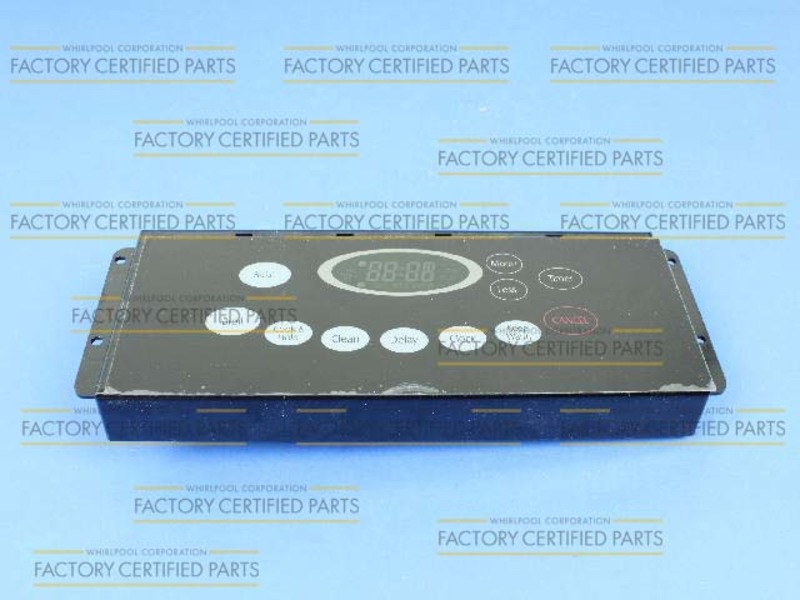

7	WP5701M719-60	Clock/overlay (bsq) (Series: 12)	$288.50 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
	WP5701M719-60	Clock/overlay (bsq) (Series: 10)	$288.50 Special Order
8	74008721	End Cap (lt-bsq) (Series: 10)	$5.70 Special Order
9	74009078	End Cap (rt-bsq) (Series: 10)	$25.20 Special Order
10	74008727	Shield, Vent (bsq) (Series: 10)	$23.80 Special Order
	74009207	Shield, Vent (bsq) (Series: 13)	$11.80 Special Order
11	74009204	Shield, Heat Visor (bsq) (Series: 13)	$25.70 Special Order
	12002309	Shield, Heat Visor (bsq) (Series: 10)	Call for Availability
12	4005F804-51	Cover, Backguard Wire (Series: 10)	$32.20 Special Order
	74006536	Cover, Wire (2 5/8`` X 2) (Series: 10)	$0.40 Special Order
	74008836	Insulation, Foil (bkgd) (Series: 10)	$4.40 Special Order

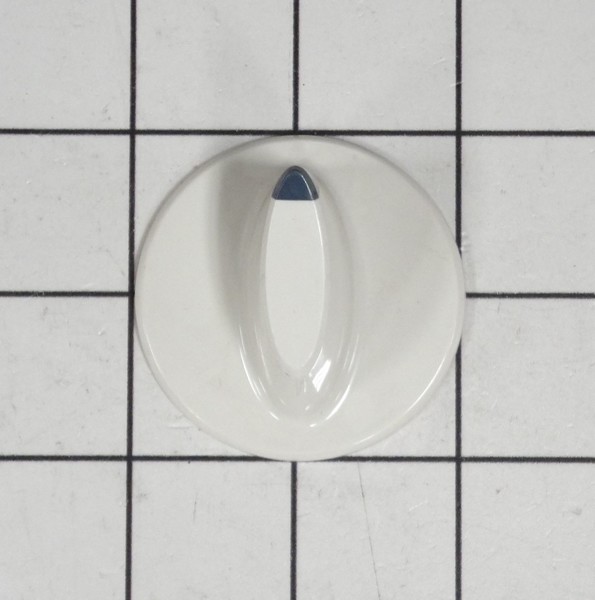

13	74008732	Knob (bsq) (Series: 10)	$25.60 Special Order
14	WP7101P309-60	Screw (Series: 10)	$4.80 Special Order
15	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
16	74008529	Top Assembly (bsq) (Series: 10)	$318.70 Special Order
17	W10823696	Element (2500w) (Series: 10)	$208.20  In-Stock Retail: $203.10
18	W10823711	Element (1200w) (Series: 10) (Replaces: 12002141 74008568)	$208.20  In-Stock Retail: $203.10
19	74009538	Screw (zinc) (Series: 10)	$13.70 Special Order
20	74008900	Bottom, Burner Box (Series: 10)	$25.80 Special Order
21	74007134	Spring, Element Support (Series: 10)	$7.60 Special Order
22	74008761	Spacer, Snap-in (Series: 10)	$5.40 Special Order
