Maytag JGRP436WP01 Parts List

Popular Searches: (Click to search)    adhesive  blade  electrode  fan  gas  hinge  jack  left  meat  module  orifice  polish  probe  receiver  reginitor  sealer  sensor  silastic  spark  steel


Select a Diagram

01 - Cooktop, Burner And Grate Parts

02 - Burner Box, Gas Valves, And Switches

03 - Chassis Parts

04 - Venting Parts

05 - Oven Parts

06 - Oven Door Parts

07 - Internal Oven Parts

08 - Optional Parts

Select Diagram ... 01 - Cooktop, Burner And Grate Parts 02 - Burner Box, Gas Valves, And Switches 03 - Chassis Parts 04 - Venting Parts 05 - Oven Parts 06 - Oven Door Parts 07 - Internal Oven Parts 08 - Optional Parts

02 - Burner Box, Gas Valves, And Switches   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10475147	Module, Spark (Replaces: 7431P038-60)	$239.90  In-Stock Retail: $233.98
2	WP90767	Screw	$4.80  In-Stock Retail: $4.59
3	4453115	Adapter, Female	$72.50 Special Order
4	W10189107	Bracket, Valve	$50.20 Special Order
5	W10367054	Bracket, Spark Module	$45.30 Special Order
6	W10115855	Holder, Strain Relief	$43.20 Special Order
7	WPW10402606	Manifold	$275.00 Special Order

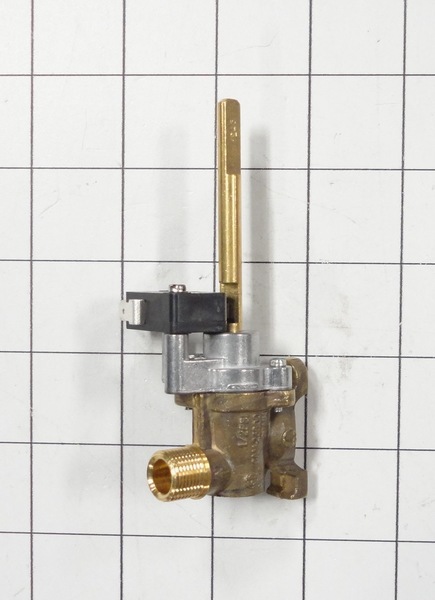

8	WPW10385582	Valve, Single (lr,cf,rr)	$212.40  In-Stock Retail: $207.15
9	W10189097	Bushing, Burner Box	$4.60 Special Order
10	W10189140	Screw, Valve Mtg	$4.40 Special Order
11	W11193822	Regulator,pressure   (Replaces: W10145584)	$178.50 Special Order
12	W10371520	Burner Box	$165.80 Special Order
13	W10308042	Bracket, Pressure Regulator	$43.40 Special Order

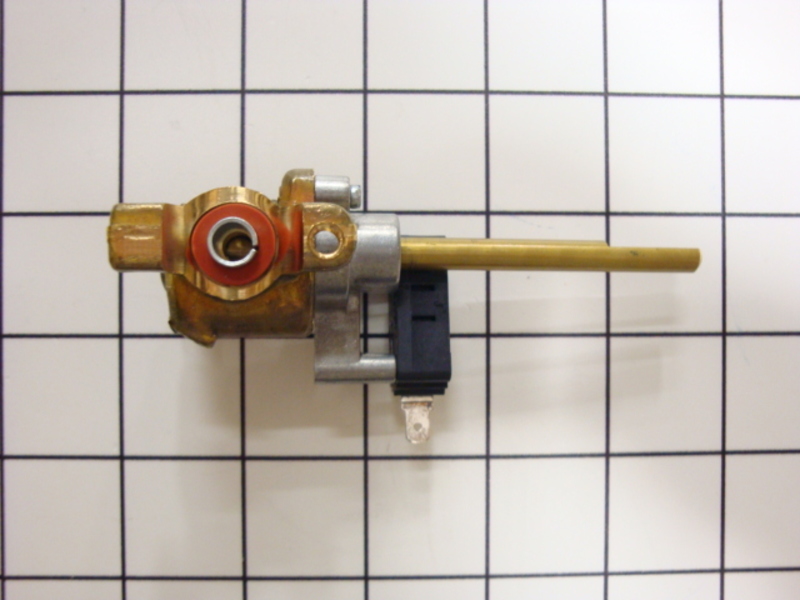

14	WPW10385583	Valve, Single (cr) (Replaces: W10385583)	$206.90 Special Order
15	8287102	Insulation, Spark Module	$28.50 Special Order
16	W10308051	Box, Broil	$181.30 Special Order
17	W10369547	Bracket, Orifice Holder	$20.90 Special Order
18	W10348600	Tube, Regulator	$124.30 Special Order
19	WP90767	Screw	$4.80  In-Stock Retail: $4.59
20	WPW10371235	Valve, Dual (lf,rf) (Replaces: W10371235)	$207.00 Special Order
21	W10115843	Cover, Ignition	$6.30 Special Order
22	W11601369	Reginitor, Gas   (Replaces: W10116108)	$62.80  In-Stock Retail: $61.20
23	W10423373	Seal, Switch Cover	$7.60 Special Order
25	W11688578	Insulation	$43.00 Special Order
29	8286930	Gasket, Orifice	$57.10 Special Order
NI	WPW10368165	Tubing, Gas (lr)	$46.10 Special Order
	W10368167	Tubing, Gas (lf-right)	$103.00 Special Order
	W10368166	Tubing, Gas (lf-left)	$31.50 Special Order
	WPW10368169	Tubing, Gas (rr)	$46.30 Special Order
	W10368177	Tubing, Gas (rf-right)	$45.50 Special Order
	W10353154	Tubing, Gas (rf-left)	$102.40  In-Stock Retail: $99.82
	W10145488	Tubing, Gas (cr)	$43.20 Special Order
	W10368168	Tubing, Gas (cf)	$45.50 Special Order
