02 - Control Panel And Latch Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

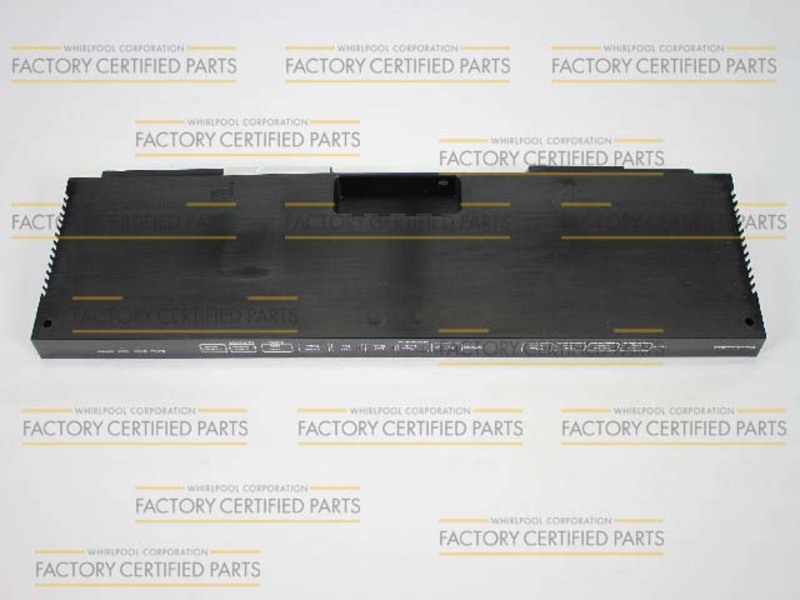

1	WPW10500088	Console Assembly (black)	$210.90 Special Order
2	W11256107	Clip, Control   (Replaces: W10195237)	$13.70 Special Order
3	W10356310	Cover, Control	Call for Availability
4	WPW10348409	Screw (Replaces: W10348409)	$4.80  In-Stock Retail: $4.59
5	W10619006	Latch Assembly (includes Switch) (Replaces: W10370003 W10195093)	$29.00  In-Stock Retail: $28.22
6	W11035586	Control, Electronic	$209.20  In-Stock Retail: $204.04
7	WPW10194937	Brace, Connector   (Replaces: W10194937)	$18.60 Special Order
8	W10783730	Box, Connector   (Replaces: W10401190)	$17.80 Special Order
