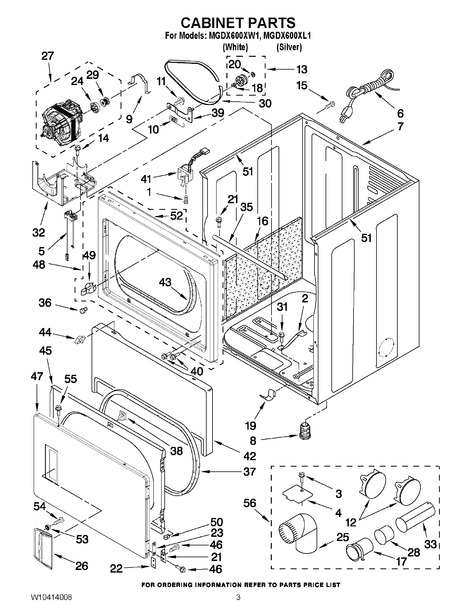

02 - Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP3395530	Screw, 6-20 X 7/8	$4.80 Special Order
2	W10181903	Bracket, Burner   (Replaces: 8529757)	$17.60 Special Order
3	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
4	WPW10354249	Plate, Cover	$4.80 Special Order
5	WPW10411937	Switch, Broken Belt (Replaces: W10246525)	$22.50  In-Stock Retail: $21.91
6	W11222083	Cord, Power (Replaces: 3392081 WP3401402 344020)	$84.10 Special Order
7	W11417441	Cabinet (white)	$228.70 Special Order
	W10292891	Cabinet (silver)	$254.10 Special Order
8	49621	Foot, Dryer (Replaces: 3392100)	$4.40  In-Stock Retail: $4.20
9	WP660658	Clamp, Motor (Replaces: 660658)	$4.80 Special Order
10	WPW10446781	Spring, Idler (Replaces: 3387374)	$16.10 Special Order
11	WP3389420	Retainer, Idler	$4.80 Special Order
12	WPW10404617	Plug, Multivent (white)	$44.70 Special Order
	WPW10404617	Plug, Multivent (midnight Grey)	$44.70 Special Order
13	279640	Pulley Assembly (Replaces: 3388672)	$20.50  In-Stock Retail: $20.49
14	WP681414	Screw, 10-16 X 1/2	$4.80 Special Order
15	WP90767	Screw Ground	$4.80  In-Stock Retail: $4.59
16	W10123956	Sound Panel	$21.00 Special Order
17	WP8563747	Exhaust Pipe & Bracket	$59.70 Special Order
18	WPW10512946	Tri Ring (Replaces: 690997)	$6.70  In-Stock Retail: $6.46
19	WPW10291934	Clip   (Replaces: W10291934)	$4.80  In-Stock Retail: $4.59
20	WPW10121334	Washer   (Replaces: W10121334)	$4.80 Special Order
21	W11175815	Hinge & Pin Assembly (Replaces: 3389247)	$54.90 Special Order
22	WP3390902	Clip, Door Hinge   (Replaces: 3390902)	$7.10 Special Order
23	W10191265	Plug, Hinge Screw (white)	$28.70 Special Order
	W10304147	Plug, Hinge Screw (silver)	$9.40 Special Order
24	WP3393657	Restrainer, Belt   (Replaces: 3393657)	$84.00  In-Stock Retail: $81.88
25	WPW10416072	4`` - 90° Elbow   (Replaces: 49026)	$14.90 Special Order
26	WPW10284182	Handle, Door (white)	$59.40 Special Order
	W10284183	Handle, Door (silver)	$36.90 Special Order
27	WPW10508324	Motor Assembly 60 Hz. (Replaces: W10281085)	$213.70  In-Stock Retail: $208.40
28	WPW10331278	Exhaust Pipe (short)	$51.40 Special Order
29	W10837625	Pulley, Motor (Replaces: W10460106 3389729)	$75.10  In-Stock Retail: $73.19
30	WPW10112954	Belt, Drive   (Replaces: W10112954)	$97.80  In-Stock Retail: $95.32
31	WP693995	Screw, 8-18 X 3/8   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
32	W11481730	Bracket, Motor	$50.90  In-Stock Retail: $49.62
33	WP8563749	Exhaust Pipe (long)	$57.70 Special Order
35	W10236068	Bracket, Cabinet	$18.20 Special Order
36	693152	Bumper	$7.20 Special Order
37	WP3390735	Door Seal (Replaces: 3390735)	$83.50 Special Order
38	279570	Catch, Door Assembly (Replaces: 3392538)	$13.50  In-Stock Retail: $13.45
39	W10837240	Idler Bracket (Replaces: 3388674)	$24.50  In-Stock Retail: $23.88
40	WP308685	Screw, 10-16 X 1/2 (Replaces: 3357011)	$4.80  In-Stock Retail: $4.59
41	WP3406107	Door Switch Assembly (Replaces: 3406107)	$21.20  In-Stock Retail: $21.19
42	WP3406797	Panel, Toe (includes Item. 36) (white)	$143.40 Special Order
	W10292896	Panel, Toe (includes Item. 36) (silver)	$83.40 Special Order
43	WP3387242	Seal, Front Panel (Replaces: 3387242)	$17.00  In-Stock Retail: $16.58
44	WP3388229	Retainer (Replaces: 3388229)	$4.80  In-Stock Retail: $4.59
45	280083	Door, Inner	$168.60  In-Stock Retail: $164.48
46	WP488627	Screw, 8-18 X 3/8 (Replaces: 342055)	$4.60  In-Stock Retail: $4.47
47	W10322551	Door, Outer (white)	$100.30 Special Order
	W10322552	Door, Outer (silver)	$214.70 Special Order
48	W10115218	Front Panel (white)	$210.10 Special Order
	W10115467	Front Panel (silver)	$114.40 Special Order
49	279570	Strike, Door (Replaces: 696144)	$13.50  In-Stock Retail: $13.45
50	3389249	Nut, Inner	$6.40 Special Order
51	W10336128	Seal, Cabinet	$9.30 Special Order
52	W10312811	Foam Seal	$43.20 Special Order
53	W10294344	Spacer, Handle	$9.30 Special Order
54	WPW10273971	Screw, 6-19 X 1/2	$4.80  In-Stock Retail: $4.59
55	WP694091	Screw, 8-18 X 3/8	$4.80  In-Stock Retail: $4.59
NI	W10823505	Foot - Optional (extended Length Package Of 2) (not Included) (Replaces: 279810)	$11.50  In-Stock Retail: $11.18
	W10331132	Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)	$44.70 Special Order
