Whirlpool GU3600XTVB4 Parts List

Popular Searches: (Click to search)    2oz  assembly  balance  black  bracket  dispenser  door  drain  fill  hose  link  metal  paint  pressurized  pump  spray  touch  undercounter  valve  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump, Washarm And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump, Washarm And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Optional Parts (not Included)

02 - Control Panel And Latch Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

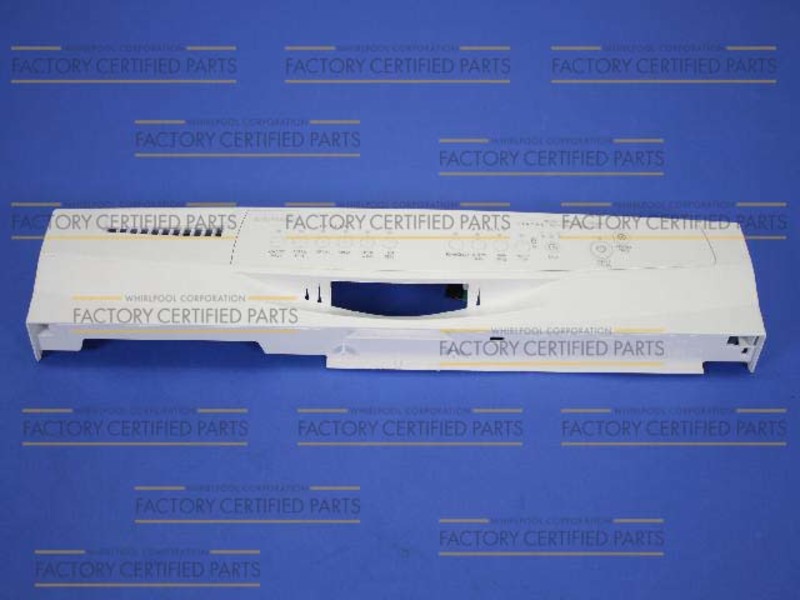

1	W10175351	Console Asm. (includes Active Overlay & Insert) (white)	$174.70 Special Order
	WPW10175352	Console Asm. (includes Active Overlay & Insert) (silver)	$207.40 Special Order
	WPW10175350	Console Asm. (includes Active Overlay & Insert) (black)	$151.50 Special Order
2	WP3400412	Screw	$4.80 Special Order
3	WP8524471	Actuator, Latch (Replaces: 8524471)	$60.20  In-Stock Retail: $58.71
4	W10258275	Bi-metal (Replaces: 661663)	$26.70  In-Stock Retail: $26.03
5	WPW10348409	Screw (Replaces: W10348409)	$4.80  In-Stock Retail: $4.59
6	8575334	Handle, Latch (gray)	$59.00 Special Order
	8575332	Handle, Latch (white)	$31.80 Special Order
	8575331	Handle, Latch (black)	$64.80 Special Order
7	8193882	Bolt, Latch	$69.60  In-Stock Retail: $67.81
8	WPW10285178	Control, Electronic   (Replaces: W10285178)	$167.00  In-Stock Retail: $162.89
9	WP8269209	Switch, Door (Replaces: 8269209)	$24.50  In-Stock Retail: $23.81
10	W10158350	Cover, Control Shield	$21.20 Special Order
11	8546546	Clip, Bi-metal	$6.00 Special Order
12	WPW10083167	Fuse In-line	$41.90 Special Order
