3 - Upper Rack Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
401	WD3X767	Washer St Stl	$10.50 Special Order
610	WD12X10353	Hub Spray Arm Mid (Replaces: WD12X10187)	$9.80 Special Order
611	WD02X10169	Scr B-16 Hxw 1/2 Ss	$10.50 Special Order
615	WD28X10410	Rack Roller Asm Upper	$416.10 Special Order
616	WD28X10263	Shelf Cup Full Length	$35.90 Special Order
617	WD12X10145	Conduit Mid Spray	$32.80 Special Order
618	WD22X10066	Arm Spray Mid Asm	$43.20 Special Order
620	WD12X10405	Bracket Spray Arm Mid	$10.50 Special Order
621	WD12X10114	Conduit Carrier Mid	$83.20 Special Order
622	WD02X10067	Scr 8-16 Hxw 1/2 Ss	$10.50 Special Order
623	WD12X10214	Indexer Front Asm	Call for Availability
624	WD12X10215	Indexer Rear	Call for Availability
650	WD30X10021	Inner Rail Upper Rack	$62.00 Special Order
652	WD12X10184	Cap End	$10.50 Special Order
680	WD12X10143	Bracket Wheel	$23.70 Special Order
681	WD01X10399	Lever Rack Asm Lh	Call for Availability
682	WD12X10144	Bracket Wheel	$21.30 Special Order
683	NLA ITEM	Lever Rack Asm Rh	Call for Availability
684	WD02X10166	Scr 8-18 Ab Hw 1/2 Ss	$10.50 Special Order
685	WD02X10112	Scr 10-16 B Rnp 18/25 Ss	$10.50 Special Order
689	WD01X10398	Touch Pad Ss	$5.00 Special Order

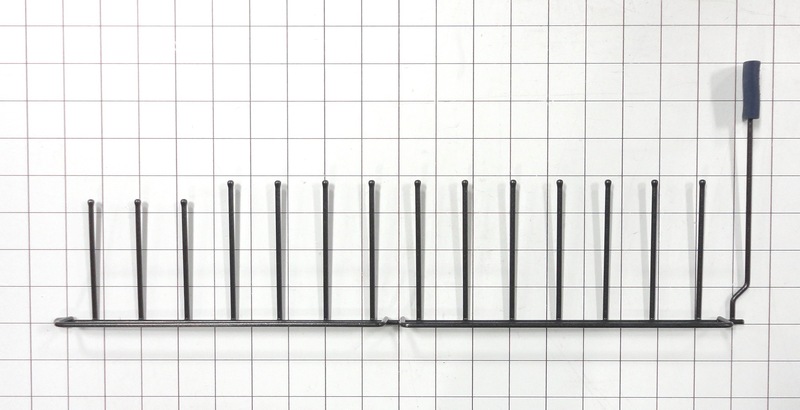

694	WD28X10267	Support Comb Upper Rack	Call for Availability
695	WD28X10410	Support Comb Upper Rack	$416.10 Special Order
696	WD12X10116	Retainer Comb	Call for Availability
697	WD12X10118	Retainer Comb	$10.50 Special Order
700	WD35X21036	Roller Upper Rack (Replaces: WD12X10138)	$38.50  In-Stock Retail: $37.49
806	NLA ITEM	Handle Rear Cover	Call for Availability
825	NLA ITEM	Handle Cover Asm	Call for Availability
826	WD02X10130	Scr 8-18 B Por 1/4 Ss	$10.50 Special Order
827	NLA ITEM	Gripper Support Comb	Call for Availability
851	WD30X10020	Cage Roller Bearing Asm	$51.80 Special Order
