Whirlpool WRT5L1SMYW00 Parts List

Popular Searches: (Click to search)    air  assembly  brush  can  complete  customer  drier  enamel  fan  filter  gasket  icemaker  kit  material  motor  spray  thermistor  touch  valve  white


Select a Diagram

01 - Cabinet Parts

02 - Liner Parts

03 - Shelf Parts

04 - Freezer Door Parts

05 - Refrigerator Door Parts

06 - Unit Parts

07 - Icemaker Parts

08 - Optional Parts

Select Diagram ... 01 - Cabinet Parts 02 - Liner Parts 03 - Shelf Parts 04 - Freezer Door Parts 05 - Refrigerator Door Parts 06 - Unit Parts 07 - Icemaker Parts 08 - Optional Parts

05 - Refrigerator Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LW10300059	Refrigerator Door (includes No.6) (white)	$464.80 Special Order
	LW10353880	Refrigerator Door (includes No.6) (black)	$464.80 Special Order
	LW10354005	Refrigerator Door (includes No.6) (sparkle)	$464.80 Special Order
2	W11745278	Bracket, Door Stop	$8.40  In-Stock Retail: $8.16
3	WP681249	Screw, 8 X 1/2	$4.80  In-Stock Retail: $4.59
4	W11189115	Thimble	$8.00 Special Order
5	WP2254517	Hole Plug, Hinge (grey)	$14.30 Special Order
	WP2212648	Hole Plug, Hinge (white) (Replaces: 2212648)	$4.80 Special Order
	WP2212651	Hole Plug, Hinge (black)	$14.30 Special Order
6	2159061	Door Gasket, Magnetic (mist Beige)	$120.90  In-Stock Retail: $117.87
	2177311	Door Gasket, Magnetic (black) (Replaces: 2202882)	$213.40  In-Stock Retail: $208.17
	W10249195	Door Gasket, Magnetic (grey)	$201.40  In-Stock Retail: $196.45
7	W10308809	Utility Compart	$28.40 Special Order

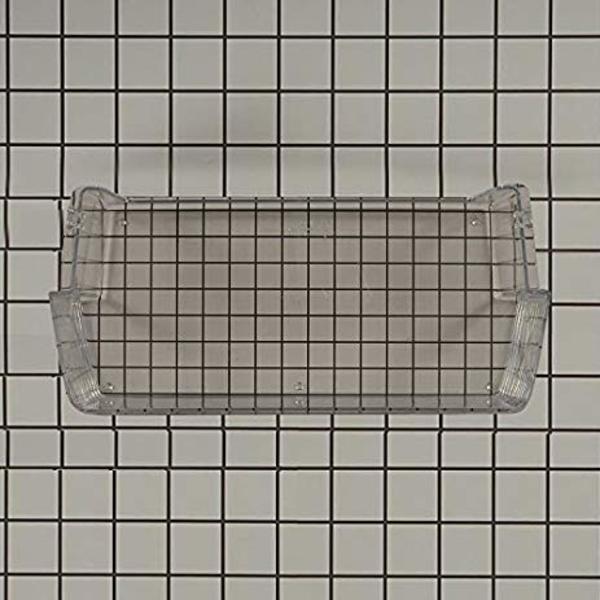

8	WPW10308868	Bin Long (Replaces: W10308868)	$53.50  In-Stock Retail: $52.12
9	WPW10646617	Handle (sparkle)	$159.70  In-Stock Retail: $155.74
	WPW10498430	Handle (black)	$72.80  In-Stock Retail: $70.96

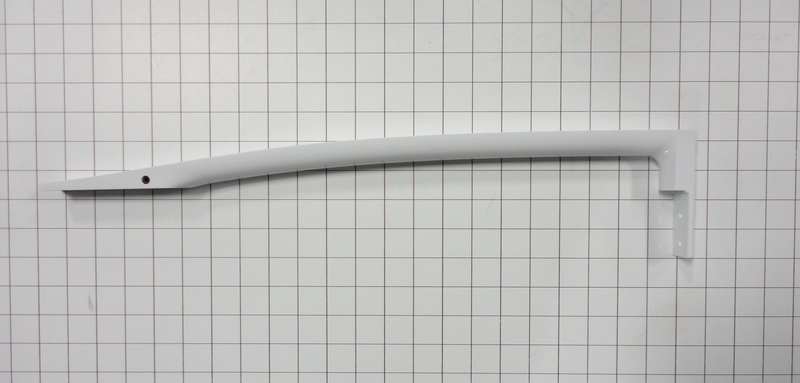

	WPW10498429	Handle (white)	$105.00 Special Order
10	WPW10308869	Bin Medium   (Replaces: W10308869)	$46.90 Special Order
11	W10356445	Bin, Tilt Out	$35.90 Special Order
12	WPW10308843	Utility Flip Lid	$47.40 Special Order
13	WPW10469911	Trim, Door Shelf	$64.90  In-Stock Retail: $63.29

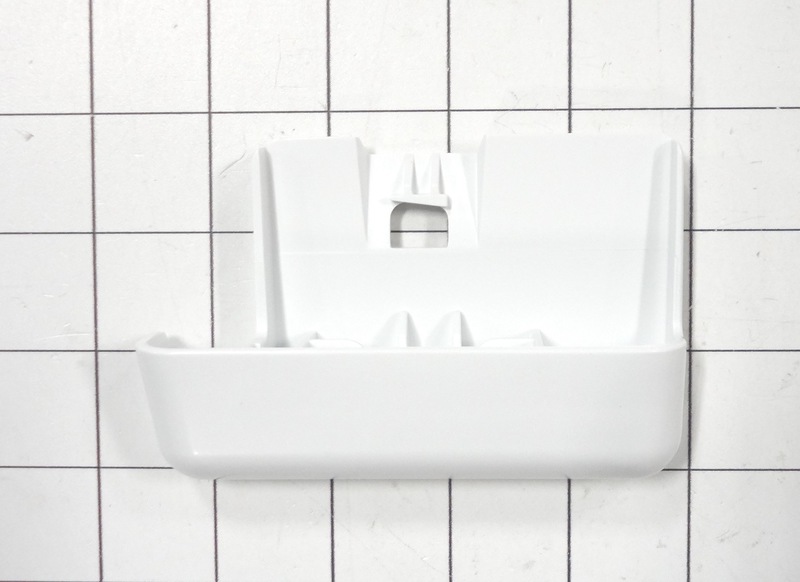

15	WPW10338485	Endcap Trim (ls) (Replaces: W10338485)	$36.30  In-Stock Retail: $35.40

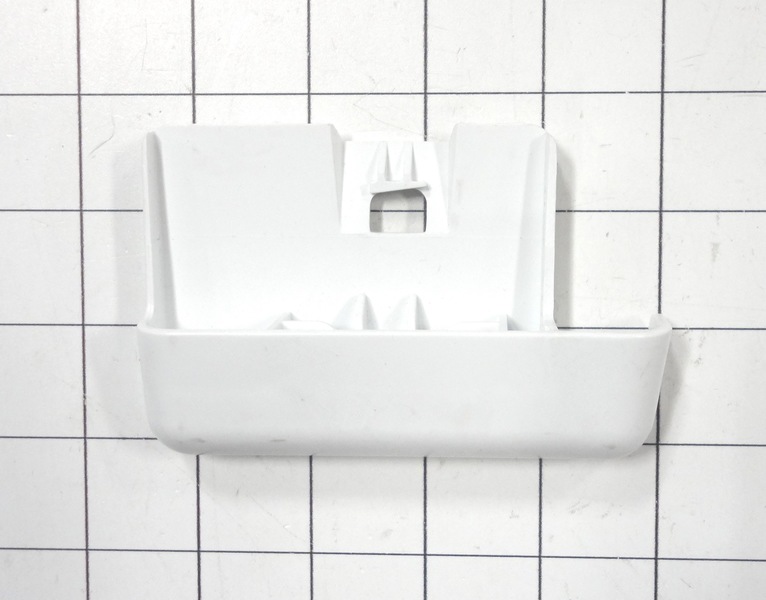

	WPW10308871	Endcap Trim (rs)	$10.50 Special Order
17	WPW10170540	Screw (Replaces: W10170540)	$6.70  In-Stock Retail: $6.52
18	W10278738	Set Screw	$8.20 Special Order
19	8534058	Screw	$6.70 Special Order
