Frigidaire CFD28WIS3 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    115v  assy  blade  board  carbon  control  defrost  dispenser  evaporator  fan  filter  icemaker  position  valve  0  motor  red  solenoid  thermostat  water


Select a Diagram


07 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 241859701 Cover-fan $38.00
Special Order
1A 242052101 Duct-air Call for Availability
F5 5308000010 5308000010 Fan Blade,red ,evaporator Fan $41.60
 In-Stock
Retail: $40.49
8 215474201 Washer,``slinger`` ,nylon ,evap Fan Shaft $13.40
Special Order
9 241518301 241518301 Bushing,motor Mounting $48.20
Special Order
10 242072001 Cover-air Duct $112.40
Special Order
10A 241860402 Cover-evap Coil,lower $94.90
Special Order
F10A 241860105 Gasket-coil Cover $12.00
Special Order
241860104 Gasket-coil Cover $21.00
Special Order
11 5303208309 Plug-hole, Factory Test $30.80
 In-Stock
Retail: $29.99
12 242072401 Insulation-air Duct $53.30
Special Order
F13 809069220 Motor,evaporator Fan   (Replaces: 241509402) $92.70
 In-Stock
14 242060201 242060201 Switch-light/lamp,frzr Door $29.80
Special Order
F15 5304517886 5304517886 Light Bulb
(Replaces: 241552807 297114000 241552801)
$52.30
 In-Stock
Retail: $50.99
16 242072101 Cover-damper $34.00
Special Order
F16A 240590402 Socket-light,top & Mid $17.50
Special Order
F16B 241510802 Harness-wiring,frz Light $30.30
Special Order
241622802 241622802 Socket-light,frz Light $43.10
 In-Stock
Retail: $41.99
17 242071901 Gasket-air Duct/liner $30.50
Special Order
19 242072601 Support-eps Damper $32.30
Special Order
20 242072201 Cover-air Duct,rear $68.50
Special Order
21 241732101 Screw,10-32 X 1/2 $11.30
Special Order
21A 241953901 Screw,no.8-18 $10.80
Special Order
21C 218252201 Screw,no.8 Truss Hd ,10-32ca X 0.500 $10.30
 In-Stock
Retail: $9.99
25 241949502 Clip,air Vent $13.50
Special Order
28 240335006 240335006 Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special
(Replaces: 240335502)
$17.00
 In-Stock
Retail: $16.49
30 241778701 Bracket-anti Tip $18.00
Special Order
34 241868301 Washer,hinge ,nylon ,(2) $22.60
Special Order
35 241763005 Hinge-lower,zinc ,rh Call for Availability
35A 241763006 Hinge-lower,zinc ,lh $68.50
Special Order
36 241868201 Spacer,door ,lower Rh $35.00
Special Order
36A 241868202 Spacer,door ,lower Lh $15.50
Special Order
37 5304494164 5304494164 Trim-cabinet Corner,gray ,(2)
(Replaces: 240337615)
$3.10
 In-Stock
Retail: $2.99
38 241761301 241761301 Bracket-upper Hinge,rh $47.70
 In-Stock
Retail: $46.49
38A 241761302 241761302 Bracket-upper Hinge,lh $46.70
Special Order
40 241778009 Cover-upper Hinge,grey ,rh $48.20
Special Order
40A 241778010 Cover-upper Hinge,grey ,lh $47.20
Special Order
40B 241862404 Cover-upper Hinge,gray ,center $74.00
Special Order
42 240578902 240578902 Screw,hex Head ,1/4-20 X 5/8 $10.30
Special Order
43 240335006 240335006 Roller Assy,front ,(2) $17.00
 In-Stock
Retail: $16.49
45 241500303 Screw,hex Washer Head ,8-18ab X 1/2 $3.10
Special Order

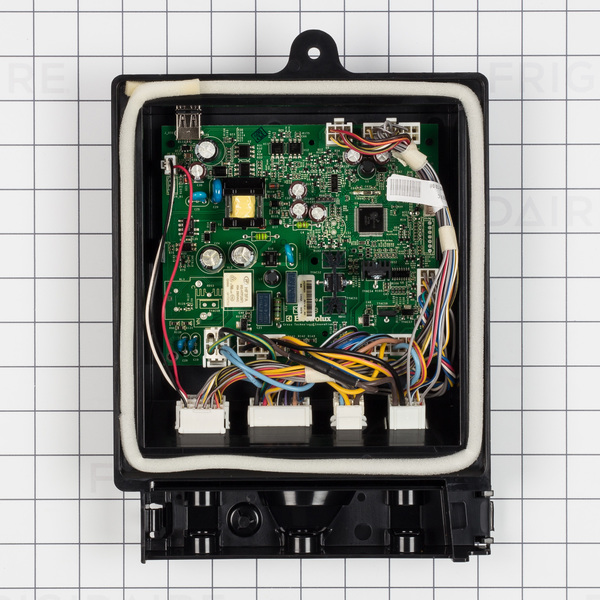

F50 242115239 242115239 Board-main Power
(Replaces: 242115203)
$204.00
Special Order
54 241532401 241532401 Channel $22.10
Special Order
58 241853202 Screw $7.00
Special Order
59 240442706 240442706 Screw-no.10-32 X 3/4,zinc $5.70
Special Order
60 218362501 Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2) $8.80
Special Order
63 216396900 216396900 Screw, Leveling Foot, Plastic, Adjustable $17.00
Special Order
72 242054801 Grille/kickplate $60.50
Special Order
73 242075701 Cam-lower Hinge $15.40
Special Order
74 242026701 Screw,no.6-32 X 9/16 Call for Availability
81 242025601 242025601 Screw,hex Head ,no.10-32 X 3/8 $10.80
Special Order
89 241733905 Cover-access,w/label $57.40
Special Order
90 240597220 Sensor,(2)   (Replaces: 240597203) $3.40
 In-Stock
92 241710601 241710601 Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg $9.80
 In-Stock
Retail: $9.49
93 241835505 Switch-light,grey $46.20
Special Order
96 241860601 Shroud-evap Fan Mtg $95.40
Special Order
F107 241971202 241971202 Shield-light,upper $24.60
Special Order
241971601 Shield-light,frzr $24.10
Special Order
108 241971401 Cover-wiring,top Air Duct Call for Availability
F108 241971801 Cover-wiring,freezer Light $64.90
Special Order
115 5303918899 Damper,motorized   (Replaces: 241518501) $54.60
 In-Stock
Retail: $53.26
116 241518601 Seal-damper,foam $6.70
 In-Stock
Retail: $6.49
121 241860103 241860103 Gasket-evap,upper $2.50
Special Order
122 241860102 Gasket-evap,bottom $7.70
Special Order
123 242135301 242135301 Clip,evap Fan Motor
(Replaces: 241517701)
$5.70
Special Order
124 242006902 Duct-air,freezer $87.20
Special Order
125 242071201 Cover,sump $83.10
Special Order
126 242081301 Screw-shoulder $8.50
Special Order
FNI 242061602 Harness-wiring,air Duct Call for Availability
5303918416 5303918416 Thermistor Kit,t-3 Suction Lin ,icemaker $70.80
Special Order
242015904 Harness-wiring $68.70
Special Order
242119001 Harness-wiring $82.60
Special Order
NI 241953905 Screw,8-18 X 1.25 $7.70
Special Order
242072501 Cover-eps,damper $13.00
Special Order
241953904 Screw,no.8-18 $7.50
Special Order
240494001 Plug,button ,cab Liner Holes   (Replaces: 240479601) $12.30
 In-Stock
Retail: $11.99
241810104 Seal,housing $8.00
Special Order
241969001 Cap,screw $11.30
Special Order
242025201 Pipe,foam Call for Availability
