GE GSHS6NGBBHSS Parts List

Popular Searches: (Click to search)    asm  bracket  canister  cond  crank  disp  door  fan  filter  heater  ice  maker  mech  motor  recess  sensor  solenoid  spring  temp  temperature


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Freezer Shelves

6 - Ice Maker & Dispenser

7 - Fresh Food Section

8 - Fresh Food Shelves

9 - Sealed System & Mother Board

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Freezer Shelves 6 - Ice Maker & Dispenser 7 - Fresh Food Section 8 - Fresh Food Shelves 9 - Sealed System & Mother Board

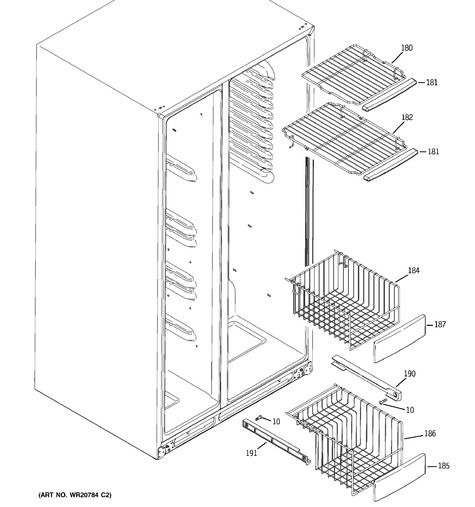

5 - Freezer Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
10	WR01X10065	Scr 8-18 Ba Por 5/8 Ss	$10.50 Special Order
180	WR71X10965	Shelf Fixed Fz	$38.00 Special Order
181	WR38X10456	Trim Shelf Fz (Replaces: WR38X10214)	$15.50 Special Order
182	WR71X10703	Shelf Slideout Fz	$65.60 Special Order
184	WR21X10060	Basket Wire Fz	$159.20 Special Order
185	WR12X10625	Handle	$29.70 Special Order
186	WR21X10035	Basket Wire Fz	$126.40 Special Order
187	WR12X10626	Handle Basket	$32.30 Special Order
190	WR17X10916	Support Slide Basket	$15.70 Special Order
191	WR17X10917	Support Slide Basket	$18.20 Special Order
