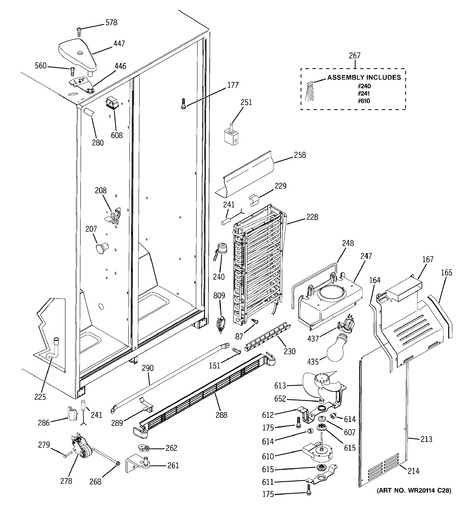

3 - Freezer Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
87	WZ04X0241	Scr 8-18 Ab Pa 1/2 Ss	Call for Availability
151	WR1X1505D	Screw	$34.50 Special Order
164	WR14X10049	Gasket Duct Fz	$10.00 Special Order
165	NLA ITEM	Gasket Duct Fz	Call for Availability
167	WR17X12081	Duct Air Fz	$46.80 Special Order
175	WR01X10652	Scr 8-18 Ab Ihw 5/8 S	$10.50 Special Order
177	WR01X10606	Scr 8-18 Ca Hx 1/2 S	$10.50  In-Stock Retail: $10.22
207	WR2X4676	Grommet Shelf	$10.50  In-Stock Retail: $10.22
208	WR02X11561	Support Fz	$10.50 Special Order
213	WR14X10045	Gasket Cover Evap	$14.50 Special Order
214	WR17X12141	Cover Evap	$40.20 Special Order
225	WR02X11476	Tube Drain	$12.70 Special Order
228	WR87X29147	Evap Repl Kit (Replaces: WR85X10022)	$482.10 Special Order
229	WR02X10552	Clip Evap Thermistor	$3.20 Special Order
230	WR51X10055	Heater & Bracket Asm	$85.30  In-Stock Retail: $109.64
240	WR50X10065	Thermostat Def	$55.30  In-Stock Retail: $66.29
241	WR55X10025	Sensor Temperature (Replaces: WR55X10735)	$15.30  In-Stock Retail: $27.09
247	WR17X12080	Orifice Evap Fan	$18.50 Special Order
248	WR14X10050	Gasket Foam	$10.50 Special Order
251	WR02X10632	Twist Support	$4.60 Special Order
258	WR17X10724	Shield Light Fz	$16.30 Special Order
261	WR13X11005	Fz Hinge Btm & Pin Asm (Replaces: WR13X10313)	$75.70 Special Order
262	WR02X11743	Hinge Cam Riser	$10.50 Special Order
267	WR23X10476	Harness Fz Fan Htr	$173.90 Special Order
268	NLA ITEM	Screw Mobility	Call for Availability
278	WR02X12454	Mobility Front Asm	$63.40 Special Order
279	WR02X12254	Pin Pivot Asm	$10.50 Special Order
280	WR02X10549	Cap Corner Oc Wh	$9.30 Special Order
	WR02X10610	Cap Corner Oc Bk	$9.80 Special Order
	WR02X10613	Cap Corner Oc Bq	$9.30 Special Order
286	WR17X10728	Thermistor Cover Fz	$10.50 Special Order
288	WR74X10151	Grille Base Asm Bk	$74.40 Special Order
	NLA ITEM	Grille Base Asm Bq	Call for Availability
	WR74X10145	Grille Base Asm Wh	$39.20 Special Order
289	NLA ITEM	Clip Grille	Call for Availability
290	WR17X11428	Bar Curb Handling	$16.10 Special Order
435	40A15	Lamp (Replaces: 60A15RVL 40A15RVL 40A15-2PK WR02X12289)	$7.30  In-Stock Retail: $14.72
437	WR02X10591	Socket & Terminal	$10.50 Special Order
446	WR13X10712	Hinge Top & Pin Asm	$14.90 Special Order
447	WR02X11482	Cover Hinge Bk	$10.30  In-Stock Retail: $10.22
	WR02X11623	Cvr Hng Wh	$48.80 Special Order
	NLA ITEM	Cvr Hng Bq	Call for Availability
560	WR01X10650	Scr 12-24 Ca Hx 7/8 S	$10.00 Special Order
578	WR01X10379	Screw Hinge Cover	$10.50 Special Order
607	WR02X10322	Cap Dust	$19.00 Special Order
608	WR23X21444	Switch Light (Replaces: WR23X10179)	$10.50  In-Stock Retail: $10.22
610	WR60X10185	Motor Evap Dc	$91.20  In-Stock Retail: $135.87
611	WR02X11622	Bracket Evap Fan Btm	$12.00 Special Order
612	WR02X11124	Bracket Evap Fan Top	$40.40 Special Order
613	WR60X30922	Blade Evap Fan Asm (Replaces: WR60X10208)	$75.80  In-Stock Retail: $73.95
614	WR02X10540	Bumper Lid	$10.50  In-Stock Retail: $10.22
615	WR02X11331	Grommet Evap Fan	$10.50 Special Order
652	WR02X12149	Ring Compression	$10.50  In-Stock Retail: $10.22
809	WR1X1936	Fastener Water Tube	$10.50 Special Order
