GE JBP62BM3WH Parts List

Popular Searches: (Click to search)    2585w  73"  asm  bake  block  broil  bulb  control  elem  element  gasket  leg  lens  light  oven  ovn  radiant  surf  terminal  unit


Select a Diagram

1 - Control Panel

2 - Cooktop

3 - Body Parts

4 - Door

5 - Door Lock

Select Diagram ... 1 - Control Panel 2 - Cooktop 3 - Body Parts 4 - Door 5 - Door Lock

4 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
101	WB35T10085	Insulation Door	$13.80 Special Order
111	WB04T10022	Gasket Ovn 73"	$76.70  In-Stock Retail: $76.61
112	WB55T10157	Liner Oven Dr Asm	$78.30 Special Order
113	NLA ITEM	Insln Retainer	Call for Availability
119	WB07X42966	Trim Dr Btm Chnl Bk   (Replaces: WB07T10477)	$21.40 Special Order
121	NLA ITEM	Glass Ovn Dr (bk)	Call for Availability
132	WB01T10026	Door Pad	$10.50  In-Stock Retail: $10.22
134	WB07X27233	Trim Vent Door	$29.80 Special Order
136	WB15T10183	Handle (bk)	$260.80 Special Order
140	WB56T10287	Frame Door Side (bk)	$20.20 Special Order
142	WB34X42027	Bracket Ovn Hdl Vnt Trm	$16.70 Special Order
143	WB34X42670	Bracket Ovn Hdl Vnt Trm	$9.80 Special Order
281	WB10T10070	Hinge Door	$73.20 Special Order

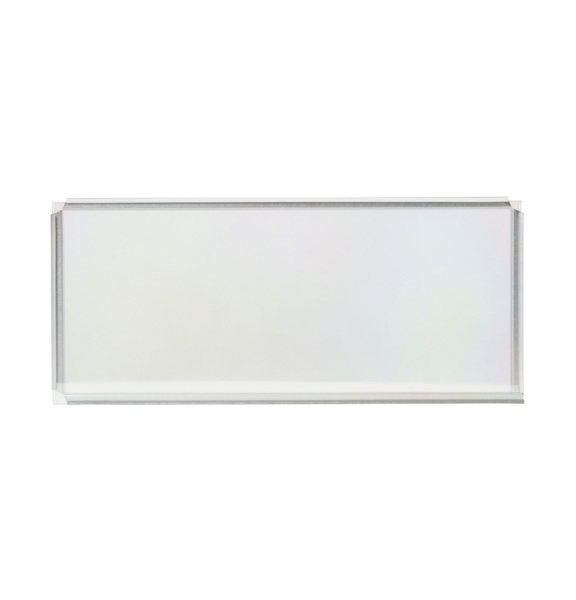

338	WB55T10065	Frame Window Pack Asm	$211.90 Special Order
696	WB01T10103	Scr 10-16 Ab Hxw .532	$10.50  In-Stock Retail: $10.22
699	WB1M1	Screw St10-16 X 7/16"	$10.10  In-Stock Retail: $9.83
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
	WZ4X245D	Scr 8-18 Ab Hw 9/16 Blk	$25.30 Special Order
919	NLA ITEM	Spacer	Call for Availability
927	WB1X119D	Contoured Washer (Replaces: WB1X119)	$14.80  In-Stock Retail: $14.42
1003	WB01T10067	Scr 10-16 Pl Pnt 2.5 S	$10.50 Special Order
1005	WB01T10008	Scr 10-32 Tr T	$10.50 Special Order
