GE PSK27NHSBCCC Parts List

Popular Searches: (Click to search)    asm  canister  cond  cover  crank  damper  defrost  door  evap  fan  filter  inlet  motor  recess  sensor  solenoid  spring  temp  thermostat  water


Select a Diagram

10 - Custom Cool

1 - Freezer Door

2 - Sealed System & Mother Board

3 - Fresh Food Door

4 - Freezer Section

5 - Evaporator Instructions

6 - Freezer Shelves

7 - Ice Maker & Dispenser

8 - Fresh Food Section

9 - Fresh Food Shelves

Select Diagram ... 10 - Custom Cool 1 - Freezer Door 2 - Sealed System & Mother Board 3 - Fresh Food Door 4 - Freezer Section 5 - Evaporator Instructions 6 - Freezer Shelves 7 - Ice Maker & Dispenser 8 - Fresh Food Section 9 - Fresh Food Shelves

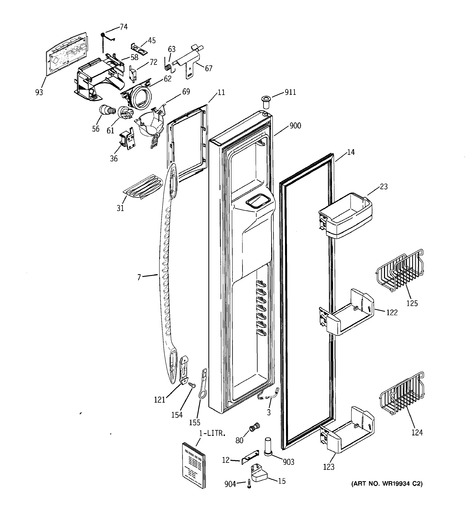

1 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-60243	Pm Guide Owners	Call for Availability
	31-46223	Pm Mini Wiring Manual	Call for Availability
3	WR09X10132	Harness Jumper Door	Call for Availability
7	WR12X10731	Handle Asm Sxs Wh	$124.80 Special Order
	WR12X10731	Handle Asm Sxs	$124.80 Special Order
	WR12X10742	Handle Door Sxs	Call for Availability
11	WR38X10353	Trim Recess Disp Bow	Call for Availability
	WR38X10356	Trim Recess Disp Bow	Call for Availability
12	WR02X10690	Stop Door Wh	$12.90 Special Order
	WR02X10786	Stop Door Bq	$17.10 Special Order
14	WR24X10156	Gasket Door Fz Wh	$104.30  In-Stock Retail: $101.72
15	WR02X10638	Cam Closure Fz Wh	$14.50 Special Order
23	WR71X10254	Module Shelf Fz Fixed	$56.60 Special Order
31	WR17X11656	Grille Recess Bq	Call for Availability
	WR17X11654	Grille Recess Wh	$15.00 Special Order
36	WR62X10055	Solenoid Asm (Replaces: WR62X10020)	$49.80  In-Stock Retail: $65.19
45	WR2X8818	Retainer Recess Door	$10.50 Special Order
56	WR01X37886	Light Dispenser (Replaces: WR02X12208)	$15.30  In-Stock Retail: $19.04
	WR01X37886	Bulb Recs 12v (Replaces: WR02X12208 WR02X10675)	$15.30  In-Stock Retail: $19.04
58	WR17X12033	Housing Shield Disp	Call for Availability
	WR49X10227	Housing Shield Disp	$70.30 Special Order
62	WR17X11653	Door Recess Asm	$10.60  In-Stock Retail: $16.09
63	WR02X10585	Spring Recess Door	$6.50  In-Stock Retail: $10.55
67	WR17X10706	Crank Door Recess	$10.50  In-Stock Retail: $10.22
69	NLA ITEM	Ice Assembly	Call for Availability
	NLA ITEM	Funnel Ice Disp   (Replaces: WR17X11883)	Call for Availability
	NLA ITEM	Ice Assembly	Call for Availability
72	WR23X10783N	Switch   (Replaces: WR23X10224)	$58.50  In-Stock
74	WR49X10233	Spring Funnel (Replaces: WR02X10584)	Call for Availability
80	WR02X11330	Union Connector	$13.10  In-Stock Retail: $12.71
93	WR55X10547	Interface Disp Asm Bq	$123.00 Special Order
	WR55X10546	Interface Disp Asm Ww	$112.50 Special Order
121	WR02X12022	Lever Lock Handle	$10.50 Special Order
122	WR71X10256	Module Support Fz	$73.30 Special Order
123	WR02X12187	Support Shelf	$13.40  In-Stock Retail: $12.98
	WR71X10255	Module Support Fz	Call for Availability
124	WR21X10111	Basket Wire Tiltout Fz	$40.60 Special Order
125	WR21X10110	Basket Wire Tiltout Fz	$50.80 Special Order
154	WR01X10632	Scr 10-18 Pl Ph 1/2 S	$10.00 Special Order
	WR01X10632	Scr 8-18 Bt Ph	$10.00 Special Order
	WR13X10216	Hinge Top Fz	$32.30 Special Order
155	WR02X10643	Bracket Handle Lock	$15.70 Special Order
900	WR78X11466	Door Asm Fz Kit Wh	$458.10 Special Order
	WR78X11468	Door Asm Fz Kit Bq	$372.70 Special Order
903	WR01X10237	Thimble Door Btm Fz Bq	$10.50 Special Order
	WR01X10208	Thimble Door Btm Fz Wh	$10.50 Special Order
904	WR01X10611	Screw Door Stop T20	$10.50  In-Stock Retail: $10.22
911	WR01X10957	Thimble Door Top Bq	$10.50 Special Order
	WR01X10955	Thimble Door Top Wh   (Replaces: WR01X10207)	$10.50 Special Order
