GE PT956SR1SS Parts List

Popular Searches: (Click to search)    appliance  asm  board  clean  erc  high  holder  lamp  limit  oven  ovn  screw  switch  tco


Select a Diagram

1 - Control Panel

2 - Upper Oven

3 - Center Spacer

4 - Lower Oven

5 - Door

6 - Door Lock

7 - Convection Fan

Select Diagram ... 1 - Control Panel 2 - Upper Oven 3 - Center Spacer 4 - Lower Oven 5 - Door 6 - Door Lock 7 - Convection Fan

4 - Lower Oven   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
20	WB02T10152	Bracket Capacitor	$10.50 Special Order
133	WB01T10022	Frt Fr Door Bumper	$10.50 Special Order
157	WB24T10081	High Limit Switch Ovn Bk	$38.20  In-Stock Retail: $37.25
201	NLA ITEM	Wrapper Ovn Cav Asm(l)	Call for Availability
	NLA ITEM	Wrapper Ovn Cav Asm(u)	Call for Availability
202	NLA ITEM	Frame Front	Call for Availability
211	WB02T10284	Retainer Insln Sde	$63.90 Special Order
212	WB02T10372	Retainer Insln Btm	$108.30 Special Order
218	WB02T10380	Cover Wire Lwr	$45.50 Special Order
219	WB02X20948	Retainer Insln Back	$61.10 Special Order
220	WB02T10502	Duct Btm Air	$83.40 Special Order
223	WB35T10090	Ov Insulation Support	$109.30 Special Order
230	WB35T10183	Insulation Top	$30.00 Special Order
231	WB35T10186	Insulation	$35.50 Special Order
232	WB35T10182	Insulation	$71.40 Special Order
233	WB35T10181	Insulation Btm	$39.50 Special Order
240	WB48T10050	Rack Oven Upper	$92.00 Special Order

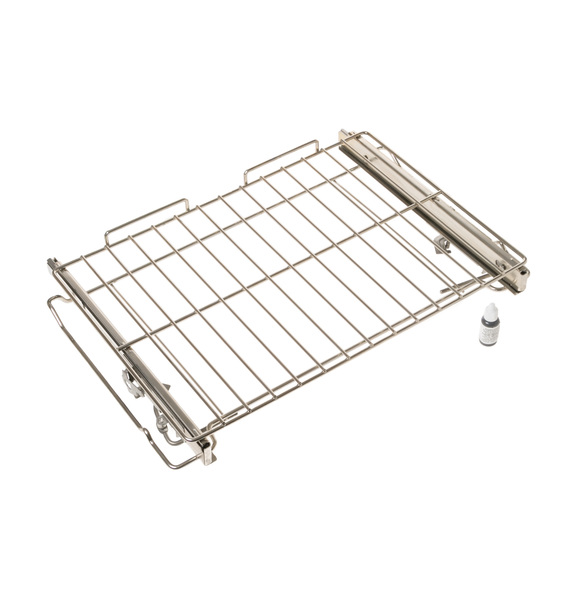

241	NLA ITEM	Rack Ovn Slide Asm	Call for Availability
251	WB44T10110	Element Bake Asm (2100w)	$82.70 Special Order
252	WB44T10106	Unit Broil Asm	$86.30 Special Order
253	WB21T10018	Sensor Asm	$26.20 Special Order
257	40A15	Lamp Appliance (Replaces: WB08T10022)	$7.30  In-Stock Retail: $14.72
258	WB08T10002	Oven Lamp Holder Asm	$29.20  In-Stock Retail: $29.14
259	WB25T10002	Oven Bulb Lens	$10.50 Special Order
262	WB07T10591	Trim Vert Sde Asm Rt	$59.50 Special Order
	WB07T10592	Trim Vert Sde Asm Lt	$59.50 Special Order
265	WB02T10421	Divider Air (bk)	$47.60 Special Order
268	WB07T10583	Trim Btm Cab (bk)	$89.80 Special Order
273	WB2X8309	Pr0be Cover	$17.30 Special Order
277	WB10T10083	Receiver Hinge	Call for Availability
282	WB28T10215	Tube Vnt Asm	$42.20 Special Order
291	WB2X9152	Cover	$25.70 Special Order
489	WB49T10019	Pan Reflector Hdn Bake	$65.20 Special Order
490	WB49T10018	Pan Reflector Side	$11.40 Special Order
534	WB26T10015	Support Ovn Cav	$21.80 Special Order
578	WB27T10662	Capacitor Motor	$10.30 Special Order
752	WB1K5200	Screw	$10.50 Special Order
809	WB1X1137	Screw	$10.50 Special Order
810	WB1X1130	Screw	$10.50 Special Order
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
887	WB1K5173	Trim Screw-blk	$10.50 Special Order
935	WB1K5174	Washer	$10.50 Special Order
945	WB1K5046	Lockwasher	$10.00 Special Order
1002	WB01T10072	Scr 10-16 Ab Ihw .625 Ni	$10.50 Special Order
1005	WB01T10008	Scr 10-32 Tr T	$10.50 Special Order
