GE JGB80XSER1SS Parts List

Popular Searches: (Click to search)    6+0  anti  bracket  burner  0  asm  cap  ckt  control  electrode  front  glowbar  igniter  medium  mid  small  top  trim  valve  1


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

4 - Door & Drawer Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
200	WB48T10095	Rack Oven (Replaces: WB48K5019)	$64.80  In-Stock Retail: $78.63
	WB48X20249	Rack Oven (Replaces: WB48K10034)	$70.40  In-Stock Retail: $68.61
300	WB58K10008	Drawer Body	Call for Availability
306	NLA ITEM	Panel Drawer	Call for Availability
312	WB1X119D	Washer Contoured (Replaces: WB1X119)	$14.80  In-Stock Retail: $14.42
314	NLA ITEM	Cover Glass Door Asm	Call for Availability
315	NLA ITEM	Liner Asm Weld Door	Call for Availability
318	WB35X29668	Gasket Asm Door   (Replaces: WB04K10022)	$30.70  In-Stock Retail: $29.86
322	NLA ITEM	Trim-door Right (blk)	Call for Availability
	NLA ITEM	Trim-door Left (blk)	Call for Availability
327	WB01K10093	Speednut	$10.50 Special Order
329	WB1X558D	Screw Nail Point	$21.80 Special Order
330	WB35K22	Reflector 9.5 Inch	Call for Availability
332	WB35K10149	Insulation Side Door	$15.90 Special Order
	NLA ITEM	Insulation Door	Call for Availability
	WB35K10150	Insulation Bottom Door	$14.90 Special Order
338	WB56K20	Window Pack Kit Lg	$291.80  In-Stock Retail: $447.05
339	WB56K10037	Guard Insulation Door	$68.20 Special Order
340	WB55K10033	Panel Asm Weld	$87.70 Special Order
343	WB39K10022	Slide Internal	Call for Availability
344	WB39K20	Bracket Mounting Drawer	$10.50 Special Order
345	WB55K10055	Liner Drawer	$38.60 Special Order

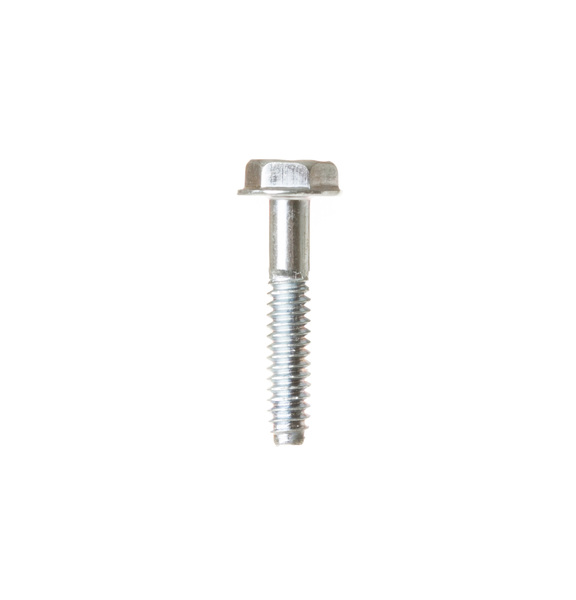

353	WB01K10099	Screw #6-32	$10.00 Special Order
356	NLA ITEM	Clip Window	Call for Availability
361	WB01K10047	Scr 10-32 Hxw 9/16 S	$10.50 Special Order
	WB1K65	Screw 10-16	Call for Availability
365	WB15T10163	Handle Ss(door)	$125.30 Special Order
	WB15K10105	Handle Ss	$90.80 Special Order

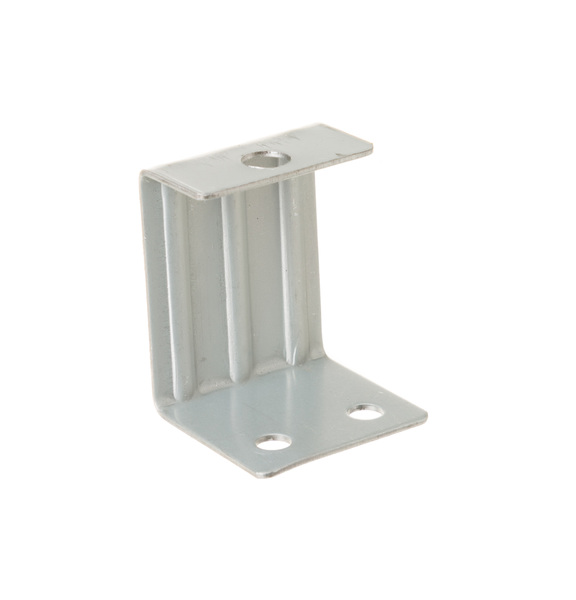

375	WB02K10268	Bracket Door	$10.50 Special Order
	WB02K10275	Bracket Drawer	$9.30 Special Order
400	WB34K10087	Window Spacer Asm	$123.80 Special Order
721	WB1X536	Screw - Door Asm (4 Per)	$12.00  In-Stock Retail: $11.66
