GE WBVH5200J2WW Parts List

Popular Searches: (Click to search)    asm  board  clamp  control  dispenser_seal  door_lock  driving  driving_belt  gasket  inverter  kit  motor  out  outside  pulley  pump  suspension_spring  valve  water  water_inlet_pipe


Select a Diagram

1 - Controls & Dispenser

2 - Cabinet & Top Panel

3 - Front Panel & Door

4 - Tub & Motor

Select Diagram ... 1 - Controls & Dispenser 2 - Cabinet & Top Panel 3 - Front Panel & Door 4 - Tub & Motor

1 - Controls & Dispenser   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-16536-1	Mini Manual	Call for Availability
	49-90387	Owner's Manual	Call for Availability
101	NLA ITEM	Power Button	Call for Availability
102	NLA ITEM	Start Pause Button	Call for Availability
103	WH01X10241	Child Lock Button	$13.80 Special Order
104	NLA ITEM	Control Board Asm   (Replaces: WH12X10380)	Call for Availability
105	WH02X10181	Screw_st3.5 X 11	$10.00 Special Order
107	WH02X10183	Screw St4*13	$10.50 Special Order
108	NLA ITEM	Control_rear_cover	Call for Availability
109	WH02X10184	Screw_st4.2 X 13	$9.30 Special Order
110	NLA ITEM	Front Top Bracket	Call for Availability
112	WH02X10185	Screw_st4*25	$10.50 Special Order
113	WE04X21014	Select Cycle Knob Asm	$22.90  In-Stock Retail: $22.32
115	WH42X10778	Control Panel Asm Ww	$124.80 Special Order
120	NLA ITEM	Rinse Button Silver Grey	Call for Availability
121	NLA ITEM	Soil_speed_temp_button	Call for Availability
123	NLA ITEM	Spray Hose	Call for Availability
125	NLA ITEM	3_way_pipe_clamp	Call for Availability
126	WH01X10324	Inlet Pipe Clamp	$10.00 Special Order
128	WH41X10112	Siphon_pipe	$10.50 Special Order
129	WH41X10138	Liquid Detergent Insert	$12.00 Special Order

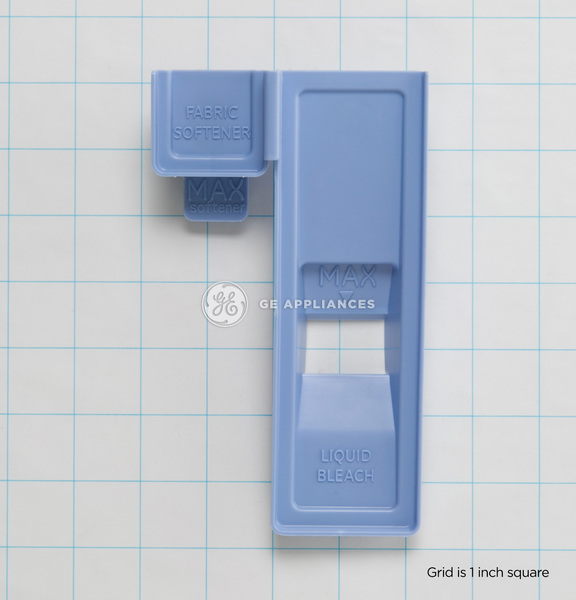

131	WH41X10155	Softener Bleach Cover	$19.90 Special Order
132	WH01X10245	Drawer Latch Level	$10.50  In-Stock Retail: $10.22
134	NLA ITEM	Dispenser Dwr Front Ww	Call for Availability
135	NLA ITEM	Drawer Dispenser	Call for Availability
136	NLA ITEM	Water_inlet_pipe	Call for Availability
137	NLA ITEM	Dispenser_seal	Call for Availability
145	NLA ITEM	Dispenser_vent_hose_clam	Call for Availability
146	NLA ITEM	Dispenser_vent_hose	Call for Availability
150	NLA ITEM	Main Box Diverter Asm	Call for Availability
151	NLA ITEM	Main Inlet Water Hose	Call for Availability
152	WH41X10157	Bleach Inlet Water Hose	$19.90 Special Order
153	WH41X10158	Hot Inlet Water Hose	$21.30  In-Stock Retail: $20.70
257	WH02X10201	Screw_st4.2*13	$9.80 Special Order
304	NLA ITEM	Gasket_nozzle	Call for Availability
305	NLA ITEM	Gasket_nozzle_washer	Call for Availability
9999	WE25X10028	Kit -stacking Wash/dryer	$117.90 Special Order
