GE GDSL0KCXARLS Parts List

Popular Searches: (Click to search)    asm  combo  comp  compression  cond  def  defrost  fan  grille  heater  icemaker  kit  lid  motor  r134a  repl  sensor  temp  thermostat  tsd


Select a Diagram

1 - Doors

2 - Freezer Section

3 - Freezer Shelves

4 - Fresh Food Section

5 - Fresh Food Shelves

6 - Case Parts

7 - Machine Compartment

Select Diagram ... 1 - Doors 2 - Freezer Section 3 - Freezer Shelves 4 - Fresh Food Section 5 - Fresh Food Shelves 6 - Case Parts 7 - Machine Compartment

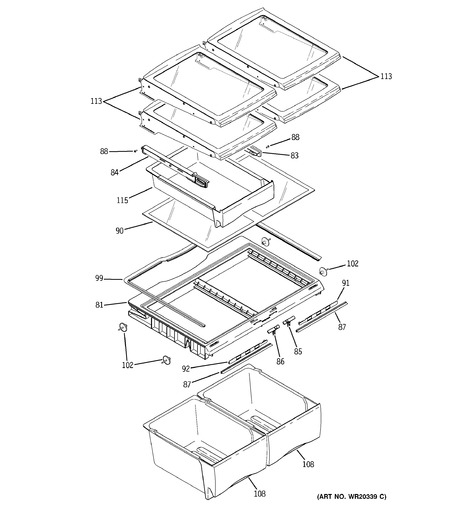

5 - Fresh Food Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
81	WR72X10331	Frame Cover Veg Pan (Replaces: WR72X10307)	Call for Availability
83	WR72X10072	Slide Pan Rh	$28.60  In-Stock Retail: $27.82
84	WR72X10073	Slide Pan Lh	$21.40 Special Order
85	WR17X12572	Knob Humidity Ctrl	Call for Availability
86	WR17X12571	Knob Humidity Ctrl	Call for Availability
87	WR14X10270	Gasket Deli Pan	Call for Availability
88	WR01X10621	Scr 8-18 Dg Trt20 5/8 S	$10.50 Special Order
90	WR32X10696	Glass Cover Veg Pan	Call for Availability
91	WR17X12570	Damper Humidity Ctrl	Call for Availability
92	WR17X12569	Damper Humidity Ctrl	Call for Availability
99	WR14X10275	Gasket Pan Veg Frame	Call for Availability
102	WR02X13504	Support Veg Pan Asm	$10.50 Special Order
108	WR32X10697	Pan Veg	$140.40  In-Stock Retail: $136.92
113	WR71X10823	Shelf Fixed & Cant Asm	Call for Availability
115	WR32X10698	Snack Pan	Call for Availability
