GE DPXH46EA3WW Parts List

Popular Searches: (Click to search) belt door drum dryer felt glide handle limiter lower plug thermal upper

Select a Diagram

1 - Controls & Top Panel

2 - Front Panel & Door

3 - Cabinet & Drum

4 - Motor

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	31-15415	Mini Manual	Call for Availability
	49-90380	Use&care Inst Manual	Call for Availability
	NLA ITEM	Kit-stacking-dryer/washe	Call for Availability
7	WE02X10009	Clip-top Front/panel	$32.30 Special Order
11	WE13X10017	Bracket - Control Board	$19.00 Special Order
12	NLA ITEM	Control Board/sensor	Call for Availability
13	WE04X10135	Switch - Temp/start (Replaces: WE04X10062)	$54.40 Special Order
14	WH12X10058	Switch X-tra Rinse/temp	$87.60 Special Order
15	NLA ITEM	Switch-push/start	Call for Availability
16	NLA ITEM	Screw	Call for Availability
17	NLA ITEM	Brkt-control Mtg-stack	Call for Availability
23	WE08X10045	Harness-control	$136.30 Special Order
27	WE20X10082	Console,frame,wh	$171.80 Special Order
	WE20X10081	Console,frame,bq	$153.80 Special Order
29	NLA ITEM	Knob-rotary Cc	Call for Availability
	NLA ITEM	Knob-rotary Wh	Call for Availability
31	NLA ITEM	Knob-timer Wh	Call for Availability
	NLA ITEM	Knob-timer Cc	Call for Availability
38	WE04X10063	Beeper	$156.30 Special Order
100	NLA ITEM	Timer - Dryer	Call for Availability
224	NLA ITEM	Panel-top	Call for Availability
	WE04X10098	Panel-top	$156.30 Special Order

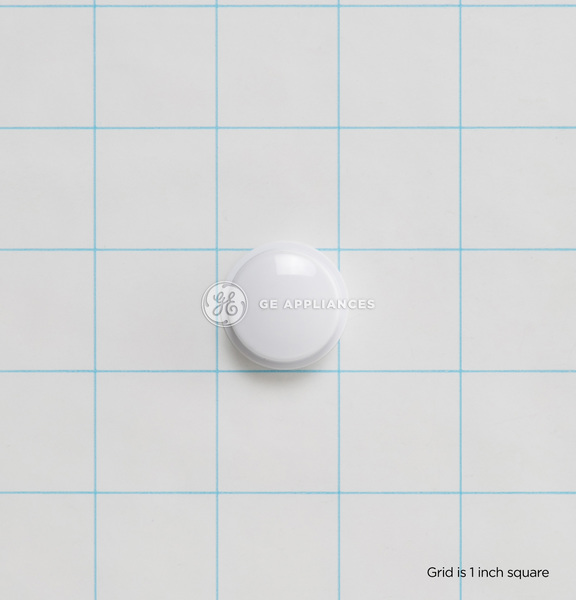

1110	WE01X10161	Button Start Switch	$20.70 Special Order
	NLA ITEM	Button Start Switch Wh	Call for Availability
