GE PDWT500P00BB Parts List

Popular Searches: (Click to search)    and  arm  asm  cable  cap  flood  gasket  hinge  inlet  link  lower  module  rack  rinse  roller  stud  switch  tub  valve  water


Select a Diagram

1 - Escutcheon & Door Asssembly

2 - Body Parts

3 - Upper Rack Assembly

4 - Lower Rack Assembly

5 - Motor-pump Mechanism

Select Diagram ... 1 - Escutcheon & Door Asssembly 2 - Body Parts 3 - Upper Rack Assembly 4 - Lower Rack Assembly 5 - Motor-pump Mechanism

4 - Lower Rack Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
625	WD28X22600	Basket Small Items Asm	$54.80 Special Order

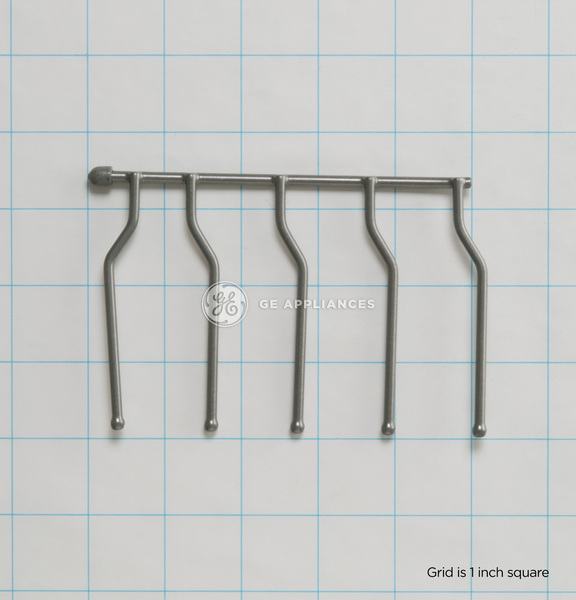

690	WD28X10161	Comb Lower Rack Asm	Call for Availability

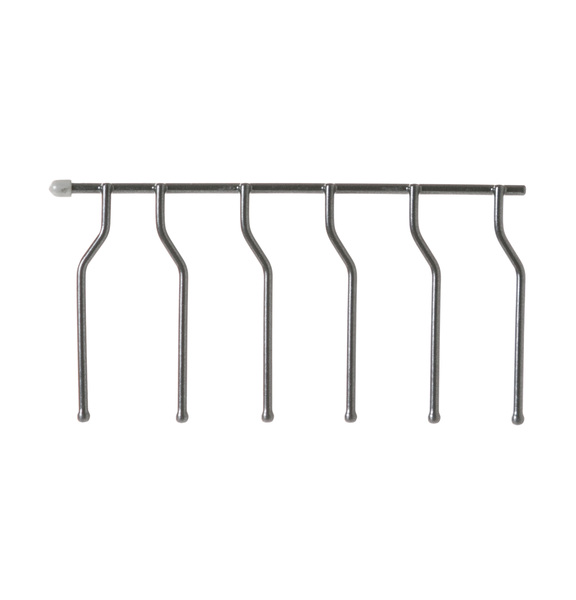

691	WD28X10117	Comb Lower Rack Asm	Call for Availability

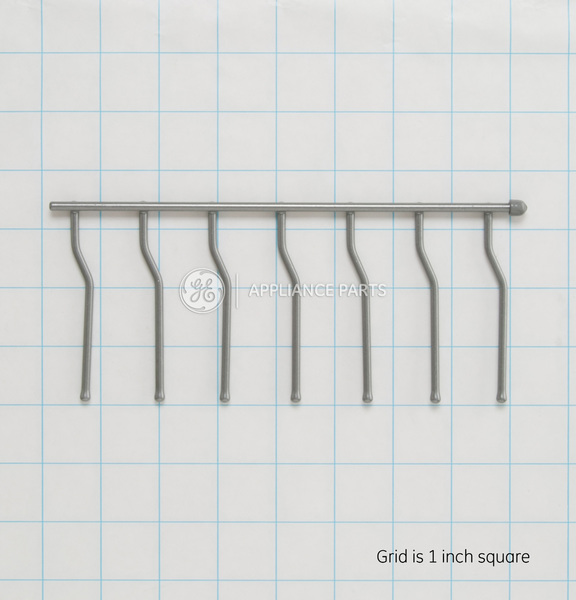

692	WD28X10116	Comb Lower Rack Asm	Call for Availability
693	WD28X10145	Comb Lower Rack Asm	$32.30 Special Order
696	WD12X10116	Retainer Comb	Call for Availability

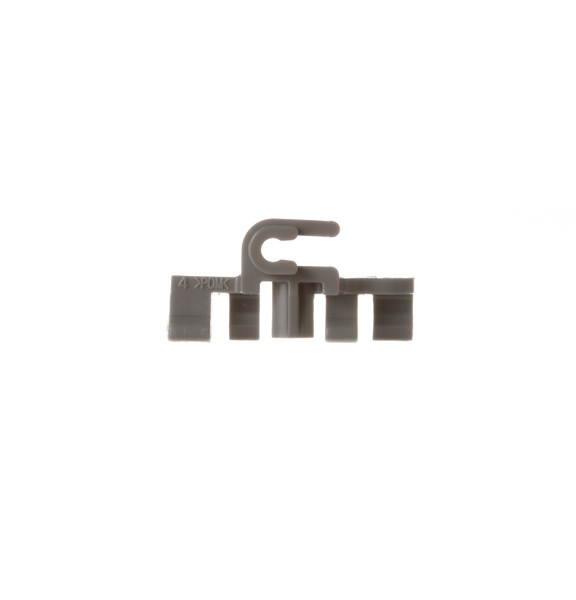

698	WD12X10117	Retainer Comb	Call for Availability
701	WD28X25960	Rack Roller Asm Lower (Replaces: WD28X10388 WD28X10387 WD28X10221)	$198.40 Special Order
703	WD35X21041	Stud Roller - Lower (Replaces: WD12X10277)	$31.00  In-Stock Retail: $37.49
705	WD35X21041	Roller Lower Rack (Replaces: WD12X10136)	$31.00  In-Stock Retail: $37.49
761	WD28X24469	Basket 7 Pc Asm	$29.80 Special Order
762	WD28X24469	Basket Silverware End	$29.80 Special Order
763	WD28X24469	Basket Silverware Middle	$29.80 Special Order
764	WD28X24469	Handle Basket	$29.80 Special Order
765	WD28X10112	Lid Basket	$10.50 Special Order
766	WD28X10113	Lid Basket	$10.50 Special Order
767	WD28X10114	Lid Basket	Call for Availability
806	NLA ITEM	Handle Rear Cover	Call for Availability
825	NLA ITEM	Handle Cover Asm	Call for Availability
826	WD02X10130	Scr 8-18 B Por 1/4 Ss	$10.50 Special Order
