GE GDSC0KBXARWW Parts List

Popular Searches: (Click to search)    asm  blade  combo  comp  compression  cond  def  defrost  fan  grille  heater  kit  motor  r134a  repl  sensor  temp  terminal  thermostat  tsd


Select a Diagram

1 - Doors

2 - Freezer Section

3 - Freezer Shelves

4 - Fresh Food Section

5 - Fresh Food Shelves

6 - Case Parts

7 - Machine Compartment

Select Diagram ... 1 - Doors 2 - Freezer Section 3 - Freezer Shelves 4 - Fresh Food Section 5 - Fresh Food Shelves 6 - Case Parts 7 - Machine Compartment

1 - Doors   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	49-60539	Pm Guide Owners	Call for Availability
	31-51740	Pm Mini Wiring Manual	Call for Availability
2	WR01X10844	Scr 8-32 Ab Ihws 3/8 S	$10.50 Special Order
3	WR02X12870	Bracket Support	$21.80 Special Order
4	WR01X10843	Screw Bracket Support	$13.10 Special Order
11	NLA ITEM	Door Foam Fz Drawer Asm	Call for Availability
	WR78X12247	Door Foam Fz Drawer Asm	$424.60 Special Order
	NLA ITEM	Door Foam Fz Drawer Asm	Call for Availability

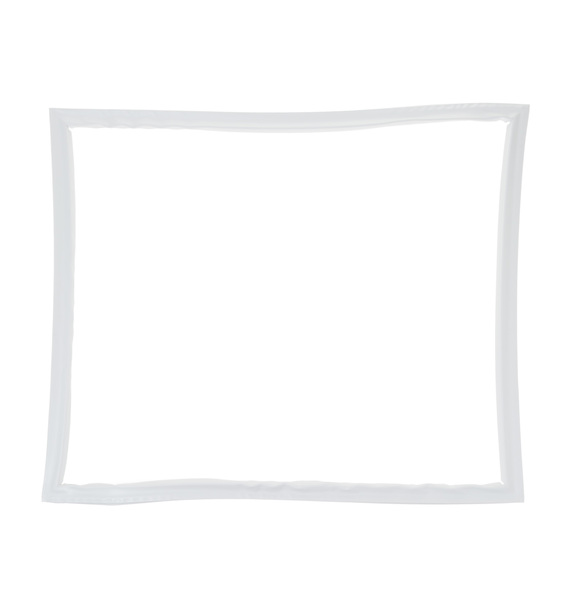

12	WR14X10326	Gasket (Replaces: WR14X10278)	$86.60 Special Order
	WR14X10324	Gasket	$56.60 Special Order
13	NLA ITEM	Handle Tubular Asm	Call for Availability
	NLA ITEM	Handle Tubular Asm	Call for Availability
	NLA ITEM	Handle Tubular Asm	Call for Availability
15	NLA ITEM	Cam Closure Fz Rh	Call for Availability
	WR02X12408	Cam Closure Fz Rh	$10.00 Special Order
	WR02X12361	Cam Closure Fz Rh	$10.00 Special Order
16	WR02X12425	Cam Closure Fz Lh	$10.00  In-Stock Retail: $9.72
	WR02X12409	Cam Closure Fz Lh	$10.00 Special Order
	WR02X12362	Cam Closure Fz Lh	$10.00 Special Order
17	WR01X10611	Scr 10-16   (Replaces: WR01X10582)	$10.50  In-Stock Retail: $10.22
18	NLA ITEM	Bracket Lower	Call for Availability
19	NLA ITEM	Bracket Lower	Call for Availability
20	WR01X10885	Scr 1/4-20 Gx Rt 3/4 S	$10.60 Special Order
27	WR49X20767	Slide Holder Asm (Replaces: WR72X10297)	$209.50 Special Order
28	WR49X20767	Slide Holder Asm (Replaces: WR72X10298)	$209.50 Special Order
30	WR21X10182	Basket Lower	$139.50 Special Order
34	WR78X12246	Door Foam Ff Asm	$492.80 Special Order
	WR78X27162	Door Foam Ff Asm	$509.30 Special Order
	NLA ITEM	Door Foam Ff Asm	Call for Availability
35	WR14X10346	Gasket	$98.70 Special Order
	WR14X10345	Gasket   (Replaces: WR14X10277)	$102.10 Special Order
36	NLA ITEM	Handle Tubular Asm	Call for Availability
	NLA ITEM	Handle Tubular Asm	Call for Availability
	WR12X10910	Handle Tubular Asm	$154.80 Special Order
37	NLA ITEM	Fastener Handle	Call for Availability
38	WR02X12880	Stop Door	$15.70  In-Stock Retail: $15.30
	WR02X12876	Stop Door	Call for Availability
	WR02X12802	Stop Door	$17.00 Special Order
39	NLA ITEM	Badge Asm	Call for Availability
40	WR02X10582	Snugger Module	$15.70 Special Order
41	NLA ITEM	Thimble Door Plastic	Call for Availability

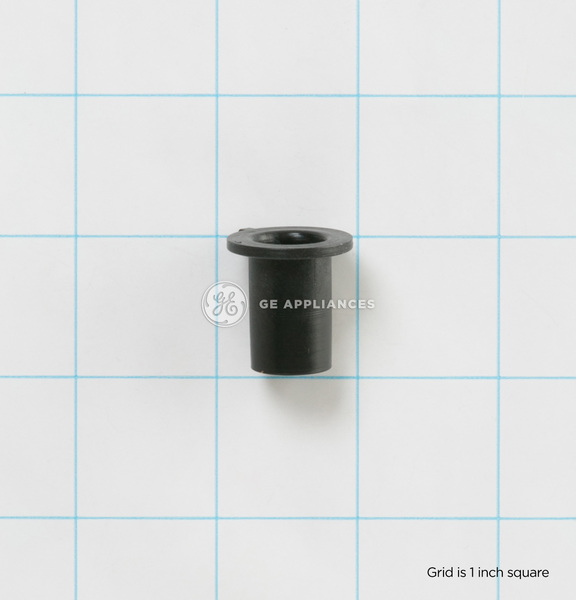

	WR02X12804	Thimble Door Plastic	$10.50 Special Order
	NLA ITEM	Thimble Door Plastic	Call for Availability
44	NLA ITEM	Door Dairy	Call for Availability
45	WR22X10062	Compartment Dairy	$70.80  In-Stock Retail: $69.05

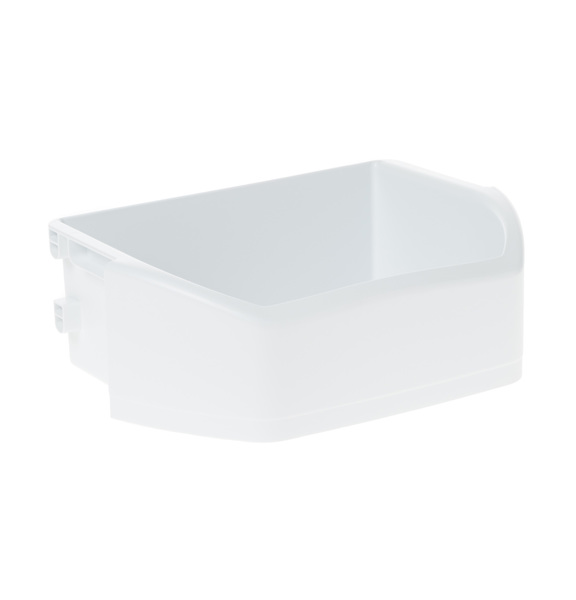

47	WR71X20333	Shelf Module	$70.80 Special Order
50	NLA ITEM	Shelf Fixed	Call for Availability
58	WR01X10588	Scr 8-18 Ab Ihxw 9/16 S	$10.50 Special Order

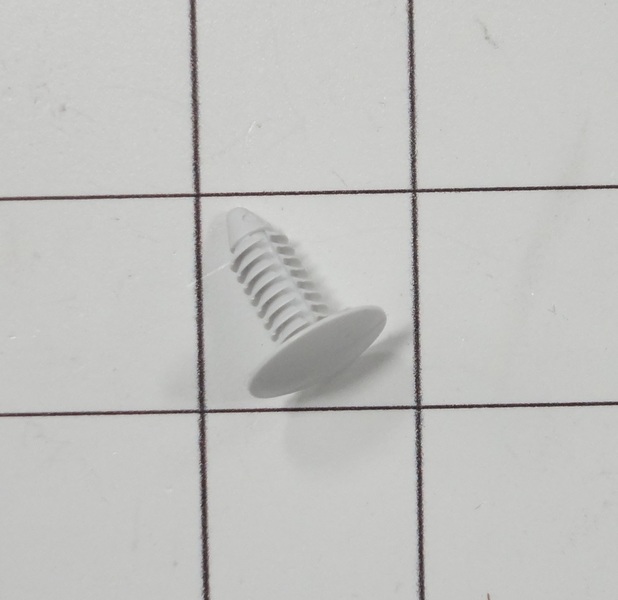

60	WR02X13058	Plug Button	$10.50 Special Order
	WR02X13056	Plug Button	$10.50 Special Order
	NLA ITEM	Plug Button	Call for Availability
62	WR01X10450	Set Screw	$10.50  In-Stock Retail: $10.22
