GE GSHS5PGXCESS Parts List

Popular Searches: (Click to search)    asm  bracket  cond  cover  crank  disp  door  evap  fan  heater  icemaker  inlet  motor  recess  sensor  solenoid  spring  temp  temperature  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Freezer Shelves

6 - Ice Maker & Dispenser

7 - Fresh Food Section

8 - Fresh Food Shelves

9 - Sealed System & Mother Board

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Freezer Shelves 6 - Ice Maker & Dispenser 7 - Fresh Food Section 8 - Fresh Food Shelves 9 - Sealed System & Mother Board

1 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-51660	Pm Mini Manual Wiring	Call for Availability
	46-60542	Pm Guide Owners	Call for Availability
6	WR01X10450	Set Screw	$10.50  In-Stock Retail: $10.22
7	WR12X10855	Tubulur Handle Asm	$222.70 Special Order
9	WR02X12800	Fastener Handle Ss (Replaces: WR02X12390)	$17.80 Special Order
11	WR38X10430	Trim Asm Bowed	$166.10 Special Order
13	WR02X12353	Stop Door	$17.50 Special Order
14	WR24X10156	Gasket Door Fz Wh	$104.30  In-Stock Retail: $101.72
15	WR02X10780	Cam Closure Fz Bk	$13.80 Special Order
26	WR71X10706	Ice Guide	$89.40 Special Order
27	WR01X10857	Scr 8-18 Ab Flp 7/8 S	$10.50 Special Order

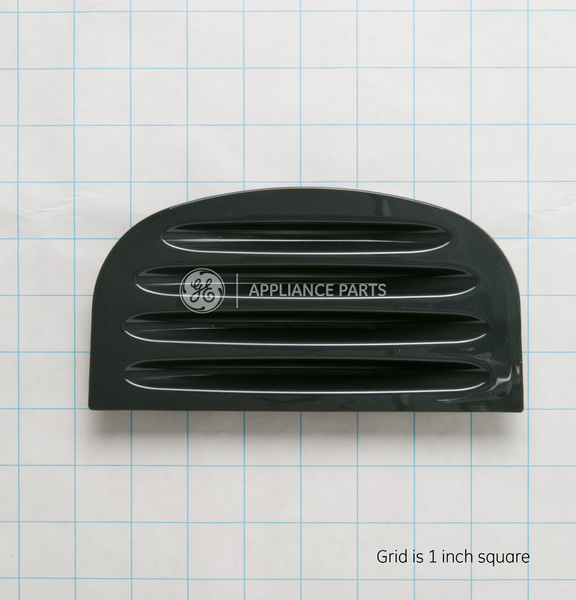

31	WR17X12320	Grille Recess	$70.40 Special Order
36	WR62X10055	Solenoid Asm	$47.60  In-Stock Retail: $74.12
45	WR2X8818	Retainer Recess Door	$10.50 Special Order
56	WR01X37886	Light Dispenser (Replaces: WR02X12208)	$14.60  In-Stock Retail: $19.41
58	NLA ITEM	Housing Shield Disp	Call for Availability
61	WR2X9561	Socket Lamp	$17.50 Special Order
62	WR17X11653	Door Recess Asm	$10.10  In-Stock Retail: $15.44
63	WR02X10585	Spring Recess Door	$6.20  In-Stock Retail: $10.98
67	WR17X10706	Crank Door Recess	$10.50  In-Stock Retail: $10.22
69	NLA ITEM	Funnel Ice Disp	Call for Availability
72	WR23X10783	Switch (Replaces: WR23X10224)	$58.50  In-Stock Retail: $57.04
74	WR49X10233	Spring Funnel (Replaces: WR02X10584)	$12.70  In-Stock Retail: $12.39
80	WR02X11330	Union Connector Reg	$13.10  In-Stock Retail: $12.71
93	NLA ITEM	Interface Dispenser Asm	Call for Availability
122	WR71X10291	Module Shelf Fz	$78.90 Special Order
123	WR71X10501	Module Shelf Fz Fixed	$84.00 Special Order
212	WR02X10689	Grommet Base Grille	$10.50 Special Order
900	NLA ITEM	Door Foam Asm Fz	Call for Availability
903	WR01X10234	Thimble Door Btm Fz Bk	$10.50 Special Order
904	WR01X10611	Scr 10-16   (Replaces: WR01X10582)	$10.50  In-Stock Retail: $10.22
911	WR01X10956	Thimble Door Top Bk (Replaces: WR01X10233)	$10.50 Special Order
