GE ZPRASHANT Parts List

Popular Searches: (Click to search)    asm  bck  door  gasket  lmt  lwr  oven  screw  sensor  switch


Select a Diagram

1 - Control Panel

2 - Upper Oven

3 - Center Spacer

4 - Lower Oven

5 - Door

6 - Door Lock

7 - Convection Fan

Select Diagram ... 1 - Control Panel 2 - Upper Oven 3 - Center Spacer 4 - Lower Oven 5 - Door 6 - Door Lock 7 - Convection Fan

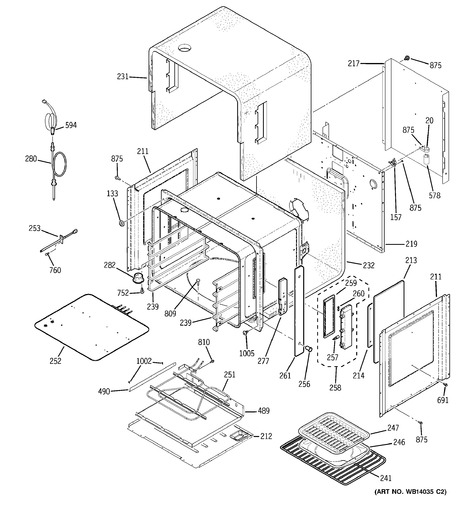

2 - Upper Oven   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
20	WB02T10152	Bracket Capacitor	$10.50 Special Order
133	WB01T10022	Frt Fr Door Bumper	$10.50 Special Order
	WB01T10052	Tape Foam	$10.50 Special Order
157	WB24T10081	Switch Hg Lmt Ov Bck Lwr	$38.20  In-Stock Retail: $37.25
211	WB02T10284	Retainer Insln Sde	$63.90 Special Order
212	WB02T10372	Retainer Insln Btm	$108.30 Special Order
213	WB35T10136	Paper Insulation	$67.50 Special Order
214	WB02T10309	Plate Insulation Mount	$31.80 Special Order
217	WB02T10373	Cover Wire Upr	$41.00 Special Order
219	WB02T10388	Retainer Insln Back	$62.80 Special Order
231	WB35T10184	Insulation Side & Top	$132.20 Special Order
232	WB35T10127	Insulation Back & Btm	$93.50 Special Order
239	WB48T10041	Rack Guide Pk Asm	$236.10 Special Order
241	NLA ITEM	Rack Oven Pk Asm	Call for Availability
246	NLA ITEM	Broiler Pan Grid (lg)	Call for Availability
247	WB48T10089	Broiler Pan (lg)	$49.90 Special Order
251	WB44T10056	Unit Bake Asm (deluxe)	$155.00  In-Stock Retail: $151.20
252	WB44T10057	Element Broil	$307.70 Special Order
253	WB23T10015	Sensor Asm	$26.80  In-Stock Retail: $26.08
256	WB31X10010	D Simmer Ring	$124.80 Special Order
	WB01T10107	Retainer Bolt	$10.50 Special Order
257	WB25T10064	Lamp Halogen 20w	$17.80 Special Order
258	WB25T10061	Lamp Halogen Asm (lt)	$220.40 Special Order
	WB25T10062	Lamp Halogen Asm Rt	$268.40 Special Order
259	WB25T10063	Lens Oven	$69.80 Special Order
260	NLA ITEM	Burner Pan R/s Flange	Call for Availability
	WB02T10297	Clip Retainer Glass	$10.50 Special Order
261	WB07T10538	Brace Cavity Asm	$15.90 Special Order
277	WB10T10117	Receiver Hinge	$37.80 Special Order
280	WB20T10023	Probe Thermistor	$85.00 Special Order
282	WB28T10215	Tube Vnt Asm	$42.20 Special Order
	WB28T10216	Tube Vent Asm	$60.60 Special Order
489	WB49T10012	Pan Reflector	$83.70 Special Order
490	WB49T10013	Side Pan Reflector	$12.10 Special Order
578	WB27T10662	Capacitor Motor	$10.30 Special Order
594	WB18T10377	Harness Meat Probe	$94.60 Special Order
691	WB1K5162	Screw-black	$10.50 Special Order
752	WB1K5200	Screw	$10.50 Special Order
760	WB1X536	Screw	$12.00  In-Stock Retail: $11.66
809	WB1X1137	Screw	$10.50 Special Order
810	WB01T10072	Scr 10-16 Ab Ihw .625 Ni	$10.50 Special Order
875	WZ4X245D	Scr 8-18 Ab Hw 9/16 Blk	$25.30 Special Order
	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
1002	WB01T10017	Scr 8-18 Ab Ihw 3/8 S Ns	$10.50 Special Order
1005	WB01T10008	Scr 10-32 Tr T	$10.50 Special Order
