GE J2BP85WEL2WW Parts List

Popular Searches: (Click to search)    asm  blk  bracket  broiler  burner  cap  ckt  electrode  glowbar  gray  igniter  med  0  medium  orifice  sensor  small  temperature  top  trim


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

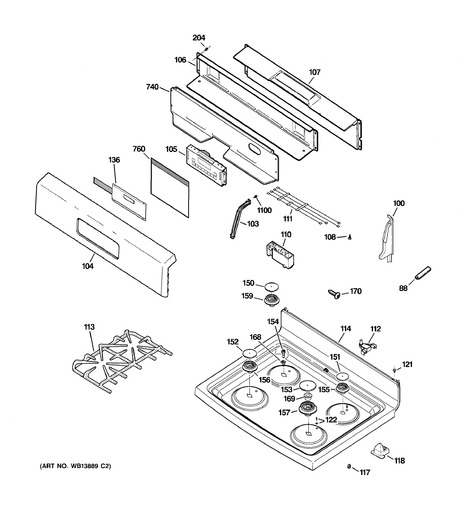

2 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
88	NLA ITEM	Pad Felt (2")	Call for Availability
	WB2K64	Pad Felt (bk)	$9.80 Special Order
	NLA ITEM	Pad Felt (wh)	Call for Availability
100	WB07K10212	End Support Left	Call for Availability
	NLA ITEM	End Support Lf	Call for Availability
	WB07K10209	End Support Rt	$17.80 Special Order
	WB07K10211	End Support Right	Call for Availability
103	WB02K10074	Bracket Control	Call for Availability
104	WB36K10612	Trim Control	$49.10 Special Order
	WB36K10611	Trim Control	$48.90 Special Order
105	NLA ITEM	Oven Cntrl Erc	Call for Availability
106	WB34K10003	Cover Back Upper	Call for Availability
107	NLA ITEM	Cover Back Lower	Call for Availability
108	WB01K10030	Screw	$9.80 Special Order
110	WB13X42446	Spark Module 4+0   (Replaces: WB13K10018)	$36.80  In-Stock Retail: $35.87
	WB18K10027	Harness Module	Call for Availability
111	WB18K10035	Harness Hv	$38.90  In-Stock Retail: $37.92
112	WB14K10003	Hinge Range Top	$10.50 Special Order
113	WB31K10135	Grate Cast (dd) Lf	$140.20 Special Order
	NLA ITEM	Grate Cast (dd) Rt	Call for Availability
	NLA ITEM	Grate Cast (dd) Rt	Call for Availability
	WB31K10133	Grate Cast (dd) Lf	$173.60 Special Order
114	WB62K10087	Rangetop & Brkt Asm	Call for Availability
	NLA ITEM	Rangetop & Brkt Asm	Call for Availability
117	WB14K10004	Pin Locator	$10.50 Special Order
118	WB14K10005	Pin Locator	Call for Availability
121	WB1K5119	Screw	$10.50 Special Order
122	WB01K10008	Screw Cktp	Call for Availability
136	WB27K10236	Support And Membrane Asm	$143.00 Special Order
	WB27K10235	Support And Membrane Asm	$81.20 Special Order
150	WB29K10001	Cap-burner Med (blk)	$55.50  In-Stock Retail: $60.65
	WB29K10004	Cap-burner Med (gray)	$38.80  In-Stock Retail: $37.79
151	WB29K10002	Cap-burner Small (gray)	$42.80 Special Order
	WB29K10009	Cap-burner Small (blk)	$10.80 Special Order
152	WB29K10007	Cap-burner Large (gray)	$43.60 Special Order
	WB29K10006	Cap-burner Large (blk)	$101.40  In-Stock Retail: $98.85
153	NLA ITEM	Cap Burner Asm (15k)	Call for Availability
	WB28K10213	Cap Burner Asm (15k)	Call for Availability
154	WB13K10014	Electrode Top	Call for Availability
155	WB16K10070	Burner-small (Replaces: WB16K10024)	$31.40  In-Stock Retail: $30.59
156	WB16T10046	Burner-large 12k	$40.30  In-Stock Retail: $39.26
157	WB16K10062	Vision Burner Xl	$60.50 Special Order
159	WB16K10055	Burner Medium (9500)	$42.90  In-Stock Retail: $41.82
168	WB01K10112	Clip-electrode (Replaces: WB01K10007)	$10.50  In-Stock Retail: $10.22
169	NLA ITEM	Venturi 15k Lp	Call for Availability
170	WB1X5874	Screw Wh	Call for Availability
	NLA ITEM	Screw (blk)	Call for Availability
204	WB1K5062	Screw (blk) (Replaces: WB1K42)	$10.50 Special Order
	WZ4X345D	Screw 8-18x5/8 Hxw	$22.70 Special Order
740	WB34K10073	Cover Back	$52.90 Special Order
760	NLA ITEM	Control Insulation	Call for Availability
1100	WB01T10016	Scr 8-18 Ab Hxw 5/8 S	$10.50 Special Order
