Whirlpool ACQ128XP0 Parts List

Popular Searches: (Click to search)    16``  2oz  36`  4``  access  adhesive  insulation  permagum  sealer  strips  tape  tube  valve  vinyl


Select a Diagram

01 - Unit Parts

02 - Air Flow And Control Parts

03 - Cabinet Parts

04 - Installation Parts

05 - Optional Parts (not Included)

Select Diagram ... 01 - Unit Parts 02 - Air Flow And Control Parts 03 - Cabinet Parts 04 - Installation Parts 05 - Optional Parts (not Included)

01 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT1185264	Literature Parts (wiring Diagram)	Call for Availability
	LIT1187361	Literature Parts (use & Care Guide)	Call for Availability
	LIT1187507	Energy Guide	Call for Availability

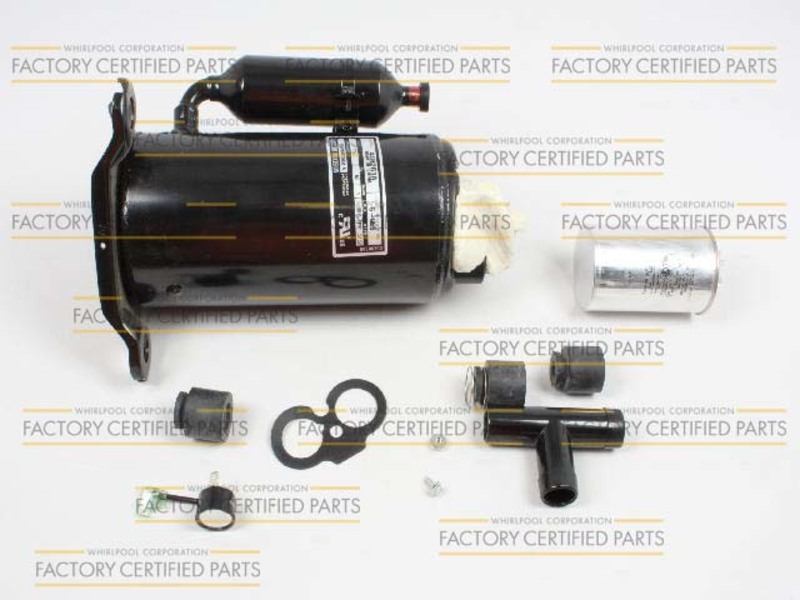

2	8201654	Compressor	$303.40 Special Order
3	WP1188381	Overload	$50.60 Special Order
5	WP489463	Screw	$4.80 Special Order
6	1185794	Gasket	$4.40 Special Order
7	WP950021	Grommet	$48.40 Special Order
8	1187606	Wiring Harness, Compressor	$7.80 Special Order
9	8011446	Clip, Compressor	$4.40 Special Order
10	1185793	Gasket, Terminal Cover	$29.10 Special Order
11	1185792	Cover, Terminal	$29.20 Special Order
12	W10833054	Nut, Hex	$4.40 Special Order

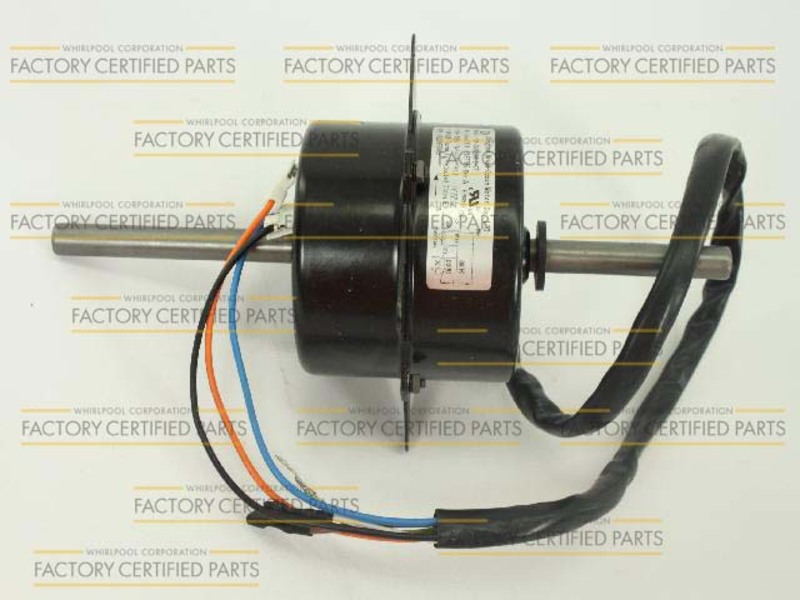

13	1187769	Motor, Fan (Replaces: 1187471)	$149.40 Special Order
14	WPW10109200	Screw	$4.80  In-Stock Retail: $4.59
16	1187494	Wheel, Blower	$6.40 Special Order
17	1187178	Blade, Fan	$48.50 Special Order
18	1187501	Evaporator	$143.50 Special Order
19	1187648	Tube, Restrictor	$15.50 Special Order
20	1187439	Condenser	$131.60 Special Order
21	1187604	Bend, Return	$4.30 Special Order
22	4388784	Bend, Return	$12.10 Special Order
24	1187660	Tube, Connecting	$4.90 Special Order
27	1187495	Grommet, Screw	$4.40 Special Order
28	4159456	Screw	$4.40 Special Order
29	1185337	Clip, Temperature Anticipator	$4.20 Special Order
30	1185795	Spring, Overload	$4.80 Special Order
31	WPW10339879	Tie, Cable	$4.80 Special Order
33	1187729	Tube, Suction (includes Item 34)	$12.20 Special Order
34	1161416	Seal, Suction Tube	Call for Availability
35	1162071	Tube, Flow Divider	$4.40 Special Order
36	484230	Tube, Outlet (includes Item 37)	$10.00 Special Order
37	49599	Strainer	$0.60 Special Order
38	WP855199	Bend, Returm	$4.40 Special Order
39	1187504	Tube, Discharge	$10.10 Special Order
40	1187184	Base	$23.00 Special Order
41	855644	Bend, Return	$4.40 Special Order
42	1187524	Manifold, Suction	$5.30 Special Order
