Whirlpool ACQ108XL1 Parts List

Popular Searches: (Click to search)    16``  2oz  36`  4``  access  adhesive  insulation  permagum  screw  sealer  strips  tape  vinyl  0  tube  valve


Select a Diagram

01 - Unit Parts

02 - Air Flow And Control Parts

03 - Cabinet Parts

04 - Optional Parts (not Included)

Select Diagram ... 01 - Unit Parts 02 - Air Flow And Control Parts 03 - Cabinet Parts 04 - Optional Parts (not Included)

02 - Air Flow And Control Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	1186569	Wire, Jumper	$28.20 Special Order
2	8031104	Wall, Dividing	$32.60 Special Order
3	1182851	Capacitor, Running	$60.00 Special Order
4	WP1160674	Bracket, Running Capacitor	$89.10 Special Order
5	1159222	Screw 8-18 X .295	$4.50 Special Order
6	1187047	Seal	$4.40 Special Order
7	8031570	Hood, Air Housing	$88.80 Special Order
8	WP854334	Seal, Hood	$7.90 Special Order
9	8031586	Housing, Air	$9.30 Special Order
10	8031109	Shroud, Evaporator	$15.30 Special Order
11	549193	Clamp-service Cord	$8.80  In-Stock Retail: $8.49
12	1186666	Cover, Control Box	Call for Availability
13	1158732	Seal, Condenser Shroud	$4.10 Special Order
14	8031110	Shroud, Condenser	$7.90 Special Order
15	1186766	Cover, Unit	$6.90 Special Order
16	4159456	Screw, 8-15 X .375	$4.40 Special Order
17	1184600	Box, Control	$29.40 Special Order

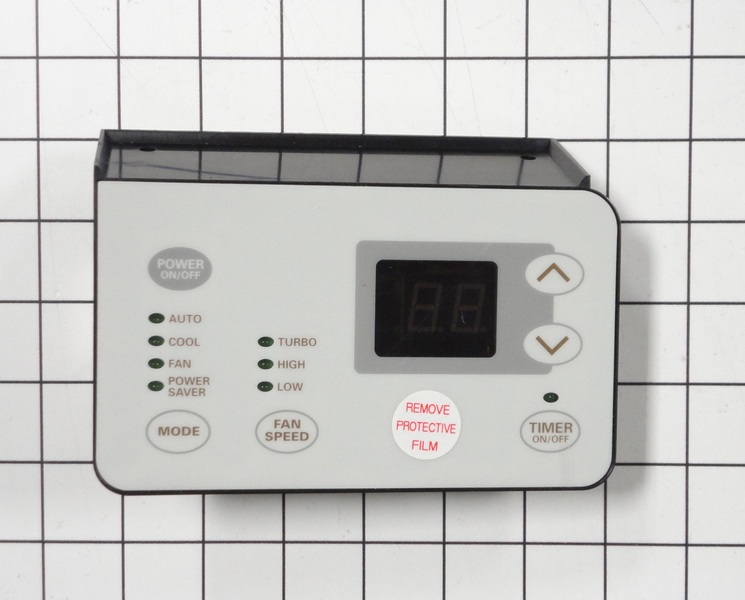

19	1186192	Control, Electronic	Call for Availability
20	8031111	Pan, Drain	$47.00 Special Order
26	1187511	Cable, Appliance	$36.50 Special Order
28	8031480	Insulation, Drain Pan	$4.40 Special Order
