GE MSK27DHXDWH Parts List

Popular Searches: (Click to search)    actuator  asm  cam  crank  def  door  fill  grommet  insert  nut  pad  plunger  recess  riser  slide  solenoid  spring  thermostat  union  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Fresh Food Section

5 - Fresh Food Shelves

6 - Unit Parts

7 - Icemaker Wr30x0303

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Fresh Food Section 5 - Fresh Food Shelves 6 - Unit Parts 7 - Icemaker Wr30x0303

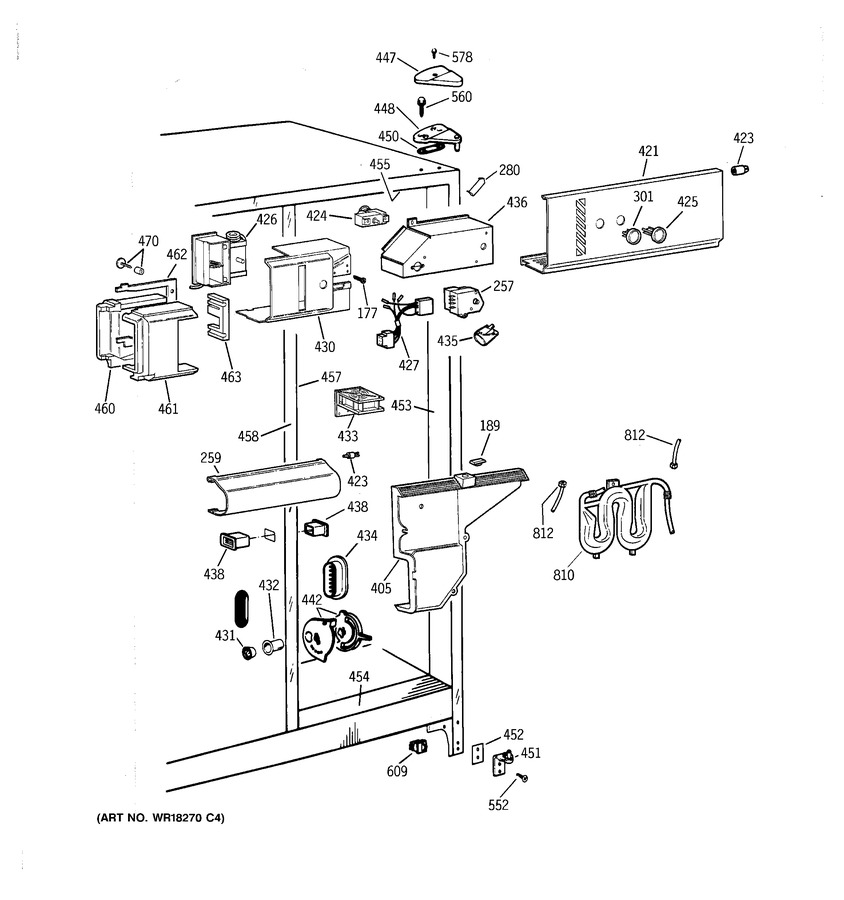

4 - Fresh Food Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
177	WR1X5034	Screw	$25.80 Special Order
189	WR1X2115	Plug Button	Call for Availability
257	NLA ITEM	Control Defrost	Call for Availability
259	WR17X4077	Shield Light Fan Ff	Call for Availability
280	WR2X8518	Cap Corner Oc (wh)	$4.10 Special Order
301	WR2X9215	Knob Damp Cont	$16.20 Special Order
405	WR17X3890	Duct Air Return Ff	$27.60 Special Order
421	WR17X4078	Shield Light Ff	Call for Availability
423	WR2X6347	Support Shield Top	$3.70 Special Order
424	WR2X8914	Sleeve Vinyl	$5.40 Special Order
	WR9X530	Control Temp Frz	$68.70 Special Order
425	NLA ITEM	Knob Frz Control	Call for Availability
426	WR9X522	Damper Control Ff	Call for Availability
427	WR23X444	Harness Control Mod	$48.10 Special Order
430	WR17X3416	Housing Control	$53.70 Special Order
431	WR2X9299	Cap Mullion Duct	$10.50 Special Order
432	WR2X8654	Duct Mullion	$5.40 Special Order
433	WR60X246	Fan Asm Ff	Call for Availability
434	WR2X9431	Duct Air Return Asm Ff	Call for Availability
435	WR02X12207	Lamp 40w 240 V	$13.10 Special Order
	WR2X9014	Socket & Term Asm	$22.40 Special Order
436	WR2X8909	Bracket Control Mod	Call for Availability
438	WR2X8655	Duct Mullion Fz	$10.40 Special Order
	WR2X7476	Duct Mullion Ff	$5.40 Special Order
442	NLA ITEM	Control Meat Pan Asm	Call for Availability
447	WR2X8333	Cover Hinge Wh	Call for Availability
448	WR13X747	Hinge Top Asm Ff	$11.40 Special Order
450	WR2X4194	Shim Hinge Top	$13.80  In-Stock Retail: $13.44
451	WR13X21523	Hinge Btm Pin & Cam Asm (Replaces: WR13X746)	$42.80 Special Order
452	WR2X4497	Shim Hinge	$26.10 Special Order
	WR2X9443	Shim Hinge	$26.10 Special Order
453	WR40X1734	Breaker Strip R/s Ff	$48.10 Special Order
454	WR40X1735	Breaker Strip Btm Ff	$21.30 Special Order
455	WR40X1736	Breaker Strip Top Ff	$16.90 Special Order
457	WR40X1737	Breaker Strip L/s Ff	$42.00 Special Order
458	WR2X4739	Nut U	Call for Availability
	WR2X7033	Bracket Mullion Btm.	Call for Availability
	WR2X8721	Bracket Mullion Top	$7.40 Special Order
	WR40X1738	Mullion Wh	Call for Availability
460	WR2X8911	Duct Air Rear	$40.70 Special Order
461	WZ06X0136	Scr 8-18 Ab Hxw 1/2 S	Call for Availability
	WR2X8910	Duct Air Front	$31.50 Special Order
462	WR14X442	Gasket Air Duct	$17.30 Special Order
463	WR82X338	Insulation Bellows	$23.40 Special Order
470	WR1X1929	Spacer Screw	Call for Availability
552	WR01X10600	Screw	$10.50 Special Order
560	NLA ITEM	Screw   (Replaces: WR1X2140)	Call for Availability
578	WZ02X0503	Screw	Call for Availability
609	WR23X10725	Switch Light Wh	$6.20  In-Stock Retail: $10.58
810	WR17X4358	Water Tank Disp Asm	$144.20 Special Order
812	WR17X2891	Tube Plastic	$28.20  In-Stock Retail: $27.42
