GE JSP34BW3BB Parts List

Popular Searches: (Click to search)    asm  bake  block  bowl  burner  cap  door  element  end  handle  hinge  holder  lamp  lock  motor  oven  screw  surface  terminal  wires


Select a Diagram

1 - Control Panel & Cooktop

2 - Body & Drawer Parts

3 - Door

4 - Door Lock

5 - Blower

Select Diagram ... 1 - Control Panel & Cooktop 2 - Body & Drawer Parts 3 - Door 4 - Door Lock 5 - Blower

1 - Control Panel & Cooktop   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB36K5667	Control Panel-black	Call for Availability
2	WB36K5379	End Cap Rt (blk)	$9.30 Special Order
	WB36K5378	End Cap Lt (blk)	Call for Availability
11	WB64K5038	Extension Burn Box Sde	$10.80 Special Order

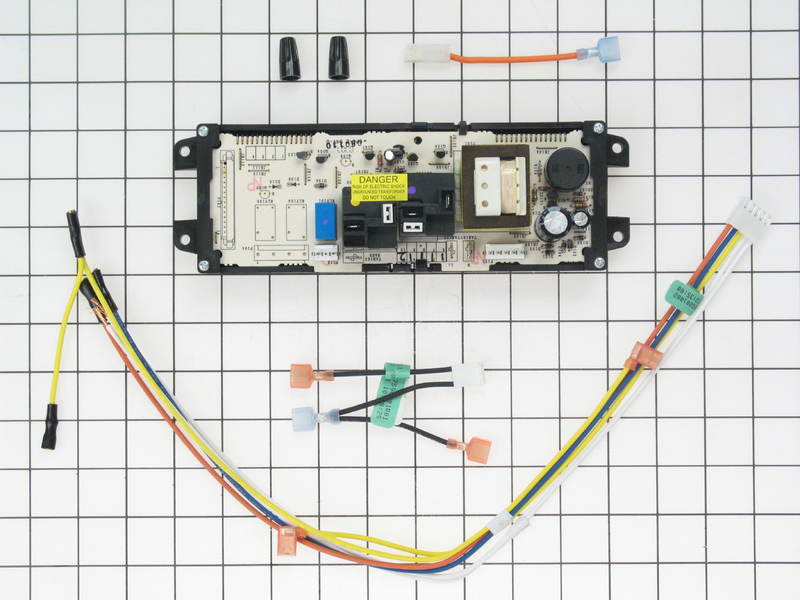

16	WB27X23660	Clock/oven Control (Replaces: WB27K5306)	Call for Availability
18	WB27K5337	Clock Plate-black	$58.50 Special Order
19	WB23M24	Element Control 1500w	$98.10 Special Order
	WB23K5027	Element Control 2350w	$98.20  In-Stock Retail: $119.96
21	NLA ITEM	Rocker Switch	Call for Availability
28	WB2K5333	Clock Bracket	$12.80 Special Order
29	WB3K5242	Infinte Knob-blk	$31.00 Special Order
33	WB25T10040	Indicator Light-oven (Replaces: WB25X93)	$10.50 Special Order
34	WB25T10042	Indicator Light Lens (Replaces: WB25X94)	$10.50 Special Order
37	NLA ITEM	Backsplash Filler	Call for Availability
42	WB34K5251	Control Panel Barrier-lt	$31.80 Special Order
	WB34K5128	Disconnect Shield	$11.80 Special Order
	WB34K5250	Control Panel Barrier-rt	Call for Availability
44	WB2X9725	Grommet Strip	$15.50 Special Order
46	WB34K5111	Extension Wire Cover	$15.50 Special Order
51	WB62K5144	Main Top-black	$497.50 Special Order
56	WB30M1	6" Surface Element (Replaces: WB30X5119)	$36.50  In-Stock Retail: $87.39
57	WB30M2	8" Surface Element (Replaces: WB30X5120)	$49.50  In-Stock Retail: $107.40
59	WB31T10014	Burner Bowl 6"	$7.80  In-Stock Retail: $15.79
60	WB31T10015	Burner Bowl 8"	$9.70  In-Stock Retail: $17.17
61	WB64T10007	Burner Box Bottom	$89.30 Special Order
69	WB2M87	Support Rod Clamp	$9.80 Special Order
76	WB38K5027	Vent Tube Asm	$24.20 Special Order
82	WB17T10006	Terminal Block W/wires (Replaces: WB17T10001)	$18.00  In-Stock Retail: $30.00
83	NLA ITEM	Terminal Block Clip	Call for Availability
90	WB2M84	Mt Support Rod	Call for Availability
91	WB14X109	Maintop Hinge-rt	$22.20 Special Order
	WB14X110	Maintop Hinge-lt	$20.70 Special Order
93	WB34T10008	Cover Wire	Call for Availability
95	WB10X255	Mt Hinge Bracket	$9.80 Special Order
158	WB24K5086	Limit Switch	$48.30 Special Order
159	NLA ITEM	Limit Switch	Call for Availability
691	WB1K5177	Trim Screw-black	$10.00 Special Order
	WB1K5162	Screw-black	$10.50 Special Order
699	WB1M1	Screw St10-16 X 7/16"	$10.10  In-Stock Retail: $9.83
761	WB1K5062	Screw-brt. Ni.	$10.50 Special Order
769	WB1X500D	Screw	$10.10 Special Order
801	WB1M1	Screw	$10.10  In-Stock Retail: $9.83
802	WB1K5123	Screw	$21.60 Special Order
803	WB1X1149	Screw-ni	$10.50 Special Order
805	WB1X1113	Screw	$5.80 Special Order
820	WB1X1424D	Screw	$9.60 Special Order
856	WB1X1293	Screw Tc10-32x.250hexni	$10.50  In-Stock Retail: $10.22
875	WH2X930	Screw 8-18 Ab Hxw 3/8	$10.50 Special Order
990	WB1X1432	Speed Nut	$11.50 Special Order
999	WB18T10101	Harness Wire Maintop	$72.90 Special Order
	WB18K5622	Main Wire Harness	Call for Availability
	31-10070	Installation Instruction	Call for Availability
	31-13285	Mini Manual W/wire Diag.	Call for Availability
	49-8868	Manual Use & Care	Call for Availability
	WB18K5363	Lock Mtr Wire Harness	$70.90 Special Order
