GE VLXR1020A0WO Parts List

Popular Searches: (Click to search)    air  asm  bell  coupling  damping  drain  external  hose  hub  mch  nut  pump  ring  scr  split  spring  strap  switch  tub  water


Select a Diagram

1 - Controls & Backsplash

2 - Cabinet, Cover & Front Panel

3 - Tub, Basket & Agitator

4 - Suspension, Pump & Drive Components

Select Diagram ... 1 - Controls & Backsplash 2 - Cabinet, Cover & Front Panel 3 - Tub, Basket & Agitator 4 - Suspension, Pump & Drive Components

1 - Controls & Backsplash   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-15416	Pm Sheet Mini Manual	Call for Availability
	31-1748	Instruction Install	Call for Availability
	39-9353	Manual Use & Care	Call for Availability
2	WH46X348	Support Switch	Call for Availability
3	NLA ITEM	End Cap Lh Bk	Call for Availability
4	NLA ITEM	End Cap Rh Bk	Call for Availability
6	NLA ITEM	Ring Compression	Call for Availability

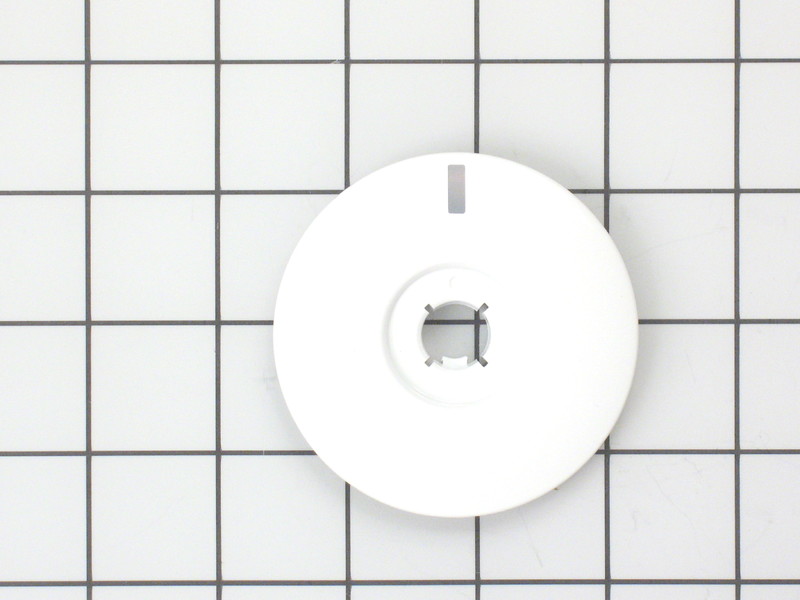

7	NLA ITEM	Dial Asm   (Replaces: WH11X141)	Call for Availability

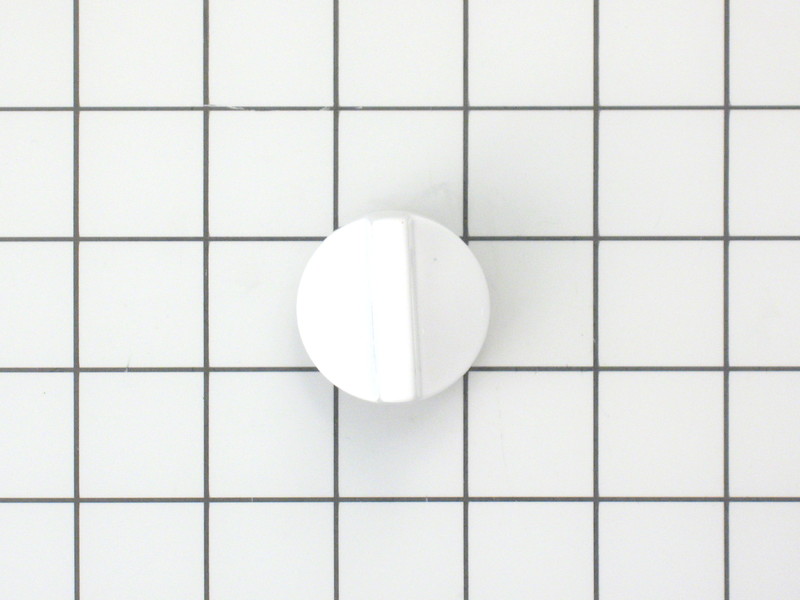

8	NLA ITEM	Knob Asm Control	Call for Availability
9	WH1X2117	Clip Spring	$10.50  In-Stock Retail: $10.22

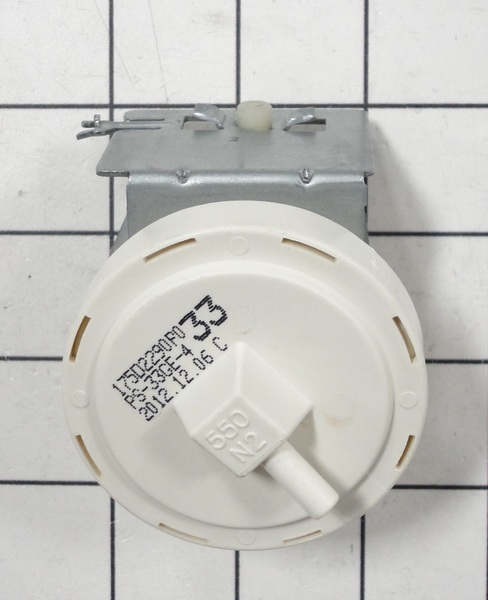

10	NLA ITEM	Switch Pressure	Call for Availability
11	WH02X10089	Scr 8-18 Ab Flt 9/16 Sn	$10.50 Special Order
13	WH42X2445	Switch Trim Asm	Call for Availability
18	WH12X10090	Relay	$25.00 Special Order
20	WE19X984	Cap Support Switch Rh	$11.10 Special Order
21	WH2X1185	Scr 8-18 B Ihw 5/16 S	$4.10 Special Order
22	WE19X983	Cap Support Switch Lh	$12.40 Special Order
71	WH2X1205	Scr 8-18 B 1/2 Hxw P	$10.50 Special Order
72	WH46X10035	Panel Back	$22.40 Special Order
73	WH46X10047	Cover Bottom	Call for Availability
100	WH12X1029	Timer Asm	$234.00 Special Order
151	WH2X1210	Scr 8-18 B Ihw 1/2 S N	$9.30 Special Order
546	NLA ITEM	Housing Terminal Bk	Call for Availability
556	NLA ITEM	Housing Terminal	Call for Availability
557	NLA ITEM	Cordset Asm	Call for Availability
627	WH12X10025	Strain Relief	$12.10 Special Order
769	WB1X500D	Scr 8-18 B Hxw 1/4 S	$10.10 Special Order
790	WH1X2036	Clamp Hose	$15.70 Special Order
803	WH41X10077	Hose & Water Inlet (Replaces: WH41X10037)	$14.80  In-Stock Retail: $14.42
805	WH13X10024	Valve Asm Water (Replaces: WH13X86)	$75.10  In-Stock Retail: $99.56
807	WH2X42D	Hose Washer	$10.50 Special Order
808	WH41X10207	Hose Asm Intake (Replaces: WH41X58)	$15.80 Special Order
811	WH41X365	Hose Pressure Switch	$14.50  In-Stock Retail: $14.11
935	WD1X1434	Terminal Special	$2.50 Special Order
