GE VISR309JTAAA Parts List

Popular Searches: (Click to search)    air  asm  bell  clip  coupling  damping  drain  external  hose  hub  mch  nut  ring  rod  scr  split  spring  strap  switch  tub


Select a Diagram

1 - Controls & Backsplash

2 - Cabinet, Cover & Front Panel

3 - Tub, Basket & Agitator

4 - Suspension, Pump & Drive Components

Select Diagram ... 1 - Controls & Backsplash 2 - Cabinet, Cover & Front Panel 3 - Tub, Basket & Agitator 4 - Suspension, Pump & Drive Components

1 - Controls & Backsplash   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-15099	Mini Manual	Call for Availability
	39-9350	Pm Manual Use Care	Call for Availability
	31-2817	Pm Instruction Install	Call for Availability
2	WH46X10019	Support Switch	$74.10 Special Order
3	WH42X2394	End Cap Lh	Call for Availability
4	WH42X2395	End Cap Rh	Call for Availability
6	NLA ITEM	Ring Comp	Call for Availability
7	WH11X140	Dial Asm	$19.30 Special Order
8	WH1X2755	Knob Asm Control	$22.90 Special Order
9	WH1X2117	Clip Spring	$10.50  In-Stock Retail: $10.22
10	NLA ITEM	Switch Pressure   (Replaces: WH12X1018)	Call for Availability
11	WE1X1270	Scr 8-18 Abflt 5/8 Sn	$5.40 Special Order
13	WH42X2525	Control Panel Asm	Call for Availability
14	WH12X10499	Switch Rotary X/rinse	$17.60 Special Order
15	NLA ITEM	Switch Rotary Speed	Call for Availability
17	NLA ITEM	Switch Rotary Temp.	Call for Availability
19	WH1X2721	Knob & Clip Asm Ad (Replaces: WE1X1208)	$11.60  In-Stock Retail: $18.48
41	WH01X10106	U Clip (Replaces: WE1X980)	$10.00 Special Order
71	WH2X1205	Scr 8-18 B 1/2 Hxw P	$10.50 Special Order
72	WH42X2513	Panel Back	Call for Availability
73	WH46X341	Cover Bottom	Call for Availability
74	WH8X379	Gasket Backsplash	$26.30 Special Order

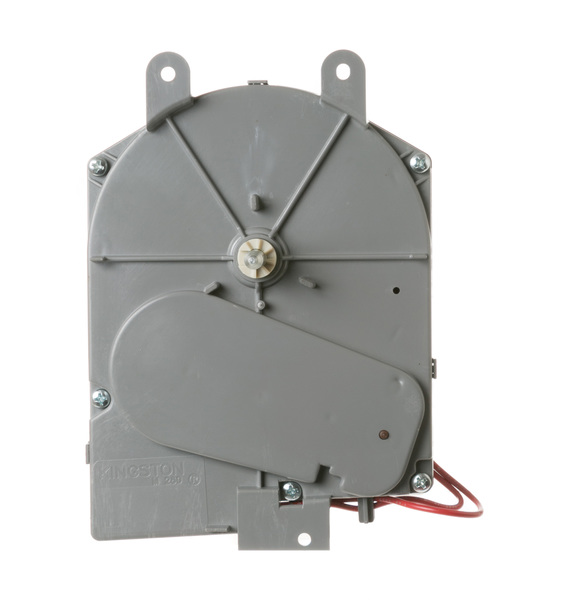

100	WH12X1082	Timer Washer	$250.60 Special Order
151	WH2X1210	Scr 8-18 B Ihw 1/2 S N	$9.30 Special Order
546	NLA ITEM	Housing Terminal Bk	Call for Availability
555	WB17X5053	Terminal	$12.30 Special Order
556	NLA ITEM	Housing Terminal	Call for Availability
557	WH19X308	Cord Power Asm	$56.20 Special Order
627	NLA ITEM	Strain Relief	Call for Availability
741	WR1X1779	Stud Mtg Compr	$10.50 Special Order
769	WB1X500D	Scr 8-18 B Hxw 1/4 S	$10.10 Special Order
790	WH1X2036	Clamp Hose	$15.70 Special Order
803	WH41X10077	Water Inlet Hose (Replaces: WH41X10037 WH41X366)	$14.80 Special Order
805	NLA ITEM	Insulation Noise	Call for Availability

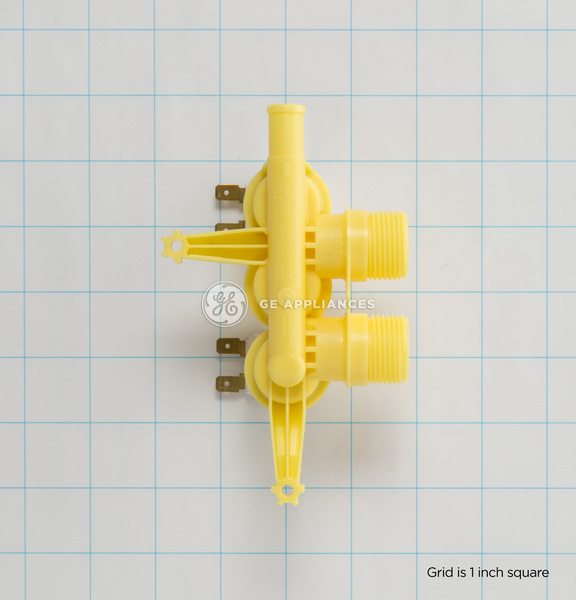

	WH12X1075	Valve Water 220/240,50hz	$65.70 Special Order
807	WH2X42D	Hose Washer	$10.50 Special Order
808	NLA ITEM	Hose Inlet Hot Metric	Call for Availability
	NLA ITEM	Hose Inlet Cold Metric	Call for Availability
811	WH41X365	Hose Pressure Switch	$14.50  In-Stock Retail: $14.11
935	WD1X1434	Terminal Special	$2.50 Special Order
