GE RS780GN1 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    screw  unknown

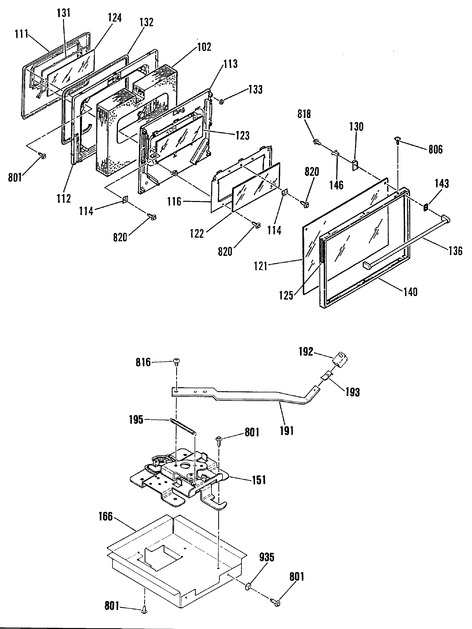

Select a Diagram


1 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
102 WB2X9144 Ov Dr Insulaton $78.50
Special Order
111 WB55K5011 Ov Dr Lining Plug $59.00
Special Order
112 WB56K5026 Ov Dr Lining Call for Availability
113 WB2M56 Ov Dr Ins Retainer Call for Availability
116 WB2M1 Door Glass Retainer Call for Availability
WB2X9178 Glass Mounting Plate Call for Availability
121 WB57M29 Ov Dr Outer Glass Call for Availability
122 WB56X1906 Ov Dr Intermediate Glass Call for Availability
123 NLA ITEM Ov Dr Center Glass Call for Availability
124 WB57M1 Ov Dr Inner Glass Call for Availability
125 WB35M11 Ov Dr Overlay $17.60
Special Order
130 WB2M45 Handle Spacer $33.90
Special Order
131 WB2X9168 Ov Dr Inner Glass Seal $15.70
 In-Stock
Retail: $15.30
132 WB2X9373 WB2X9373 Ov Door Gasket $88.10
Special Order
133 WB1X1159 Washer $22.20
Special Order
136 WB15M4 Ov Door Handle Call for Availability
140 WB56M9 Ov Dr Asm W/overlay Call for Availability
143 WB2M44 Dr Handle Spacer Call for Availability
146 WB2M46 Spacer $20.10
Special Order
151 WB10X268 Latch Asm Call for Availability
166 WB58M2 Latch Mounting Box Call for Availability
191 WB15M6 Ov Dr Lock Handle $20.60
Special Order
192 WB3K5154 Lock Knob $34.90
Special Order
193 WB2X9404 WB2X9404 Clip Knob $4.50
Special Order
202 WB63M49 Front Frame Call for Availability
222 WB56M11 Lower Front Panel $31.80
Special Order
252 WB44X232 WB44X232 Broil Element 240v $87.30
 In-Stock
Retail: $85.13
256 WB8M3 Ov Lamp Holder Call for Availability
257 BUY LOCAL Oven Light Bulb Call for Availability
291 WB2X9152 Cover Call for Availability
801 WB1M1 WB1M1 Screw $10.10
 In-Stock
Retail: $9.83
804 WB1X681 WB1X681 Screw $10.50
Special Order
806 WB1X1164 WB1X1164 Screw $4.20
Special Order
816 WB1X1125 Screw Call for Availability
818 WB1X1250 Screw Call for Availability
820 WB1X1424D Screw $9.60
Special Order
935 WB1X1201 Washer $8.90
Special Order
999 WB18M77 Sensor Wire Harness Call for Availability
WB18M75 Main Wire Harness Lt $117.10
Special Order
WB18M76 Relay Wire Harness Call for Availability
WB18K5200 Main Wire Harness-rt Call for Availability
WB18K5199 Main Wire Harness-lt Call for Availability
31-0889 Installation Instruction Call for Availability
31-0919 Installation Instruction Call for Availability
39-4658 Owners Manual Call for Availability
