GE RGJ736GEP1 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    asm  cab  fan  screw  top  unknown

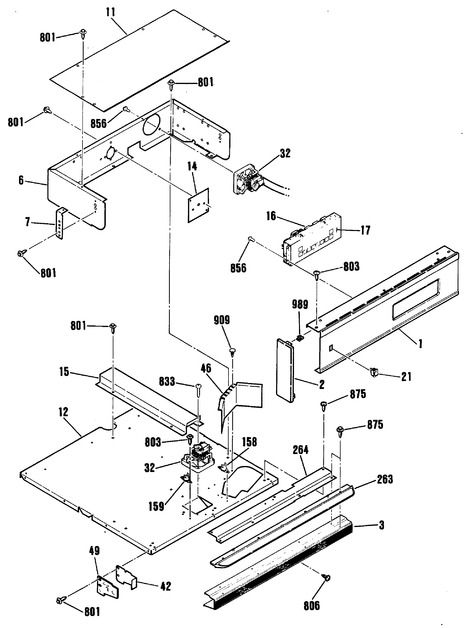

Select a Diagram


1 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WB36K5134 Control Panel Call for Availability
2 WB36K5129 Cont Pnl End Cap-rt-blk $36.50
Special Order
WB36K5128 Cont Pnl End Cap-lt-blk $36.50
Special Order
3 WB7K5115 Vent Trim-blk Call for Availability
6 WB36M7 Control Housing Call for Availability
7 WB2X9658 Cont Panel Bracket $11.10
Special Order
11 WB63K5100 Cont Housing Top Call for Availability
12 WB63K5198 Cabinet Top $55.00
Special Order
14 WB2X9662 Cover Plate $8.90
Special Order
15 WB2X9665 Wire Cover Call for Availability
16 WB50K5013 Clock/oven Control Kit Call for Availability
17 WB27K5036 Clock Plate Call for Availability
21 WB24K5035 WB24K5035 Rocker Switch $14.80
Special Order
32 WB26X114 WB26X114 Fan Asm-to Cab Top $143.40
Special Order
WB26K5047 Fan Kit Call for Availability
42 WB34K5101 Heat Shield-rt $8.50
Special Order
WB34K5102 Heat Shield-lt $8.20
Special Order
46 WB34K5099 Wire Shield $15.50
Special Order
49 WB35K5060 Insulation-heat Shield $14.90
Special Order
81 WB1K5191 WB1K5191 Trim Screw $10.50
Special Order
158 WB24K5085 WB24K5085 Limit Switch-erc $57.20
Special Order
159 NLA ITEM Limit Switch Call for Availability
224 WB2K5201 Bridge Spacer Call for Availability
263 WB7K5109 Trim-i-brow Blk $44.00
Special Order
WB2X9634 Bottom Channel $16.70
Special Order
264 WB7K5108 Vent Trim Extension $38.90
Special Order
801 WB1M1 WB1M1 Screw $10.10
 In-Stock
Retail: $9.83
803 WB1X1149 Screw $10.50
Special Order
806 WB1X1164 WB1X1164 Screw $4.20
Special Order
833 WB1X1131 Screw $10.00
Special Order
856 WB1X1293 WB1X1293 Screw $10.50
Special Order
858 WB1X1413 Wood Screw Call for Availability
875 WB1K5057 Screw Call for Availability
909 WB1X1173 Rivet $10.00
Special Order
989 WB1K5209 Nut $16.00
Special Order
999 31-13062 Mini Manual/wire Diagram Call for Availability
WB18K5241 Sensor Wire Harness Call for Availability
WB18K5240 Main Wire Harness Call for Availability
WB18K5239 Cnt Valve Wire Harness Call for Availability
39-4692 Use & Care Manual Call for Availability
31-0970 Installation Instruction Call for Availability
