Whirlpool ACQ062XH0 Parts List

Popular Searches: (Click to search)    16``  2oz  36`  4``  access  adhesive  insulation  permagum  sealer  strips  tape  tube  valve  vinyl


Select a Diagram

01 - Unit, Literature

02 - Airflow And Control

03 - Cabinet

04 - Optional

Select Diagram ... 01 - Unit, Literature 02 - Airflow And Control 03 - Cabinet 04 - Optional

03 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8011107	Cabinet	$48.90 Special Order
2	855841	Gasket, Meeting Rail	$5.50 Special Order
4	8011307	Channel, Top	$16.20 Special Order
5	WP489069	Screw, 8-15 X 1/2 (8)	$4.80 Special Order
6	8011113	Front, Cabinet Assembly	$36.60 Special Order
7	WP308685	Screw, (2)	$4.80  In-Stock Retail: $4.59
8	8011311	Curtain (l.s.)	$9.20 Special Order
	8011308	Curtain (r.s.)	$7.70 Special Order
9	8031132	Door, Control	$54.90 Special Order
10	8011385	Insulation, Top	$29.10 Special Order

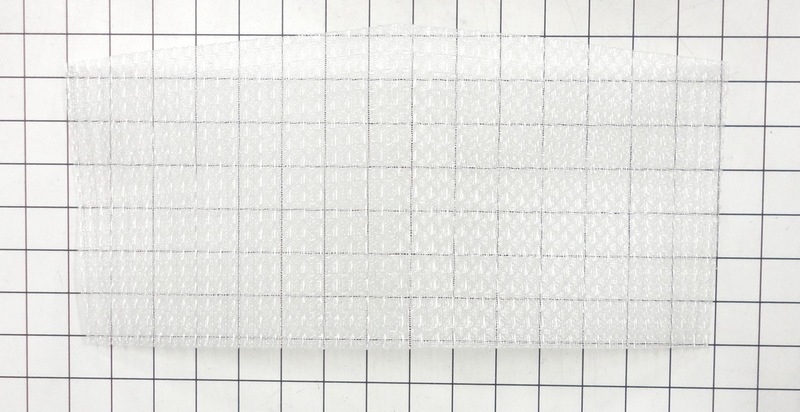

11	8011314	Filter	$7.20 Special Order
12	8011100	Grille, Front	$55.70 Special Order
14	853915	Foam, Condenser	$28.90 Special Order
15	644228	Bracket, Window	$11.20 Special Order
16	47435	Screw, 8 X 3/4	$4.50 Special Order
17	8011189	Louver, Assembly	$49.80 Special Order
23	1161561	Screw, (2)	$4.50 Special Order
25	8031159	Escutcheon	Call for Availability
27	476180	Bag, Accessory	$3.80 Special Order

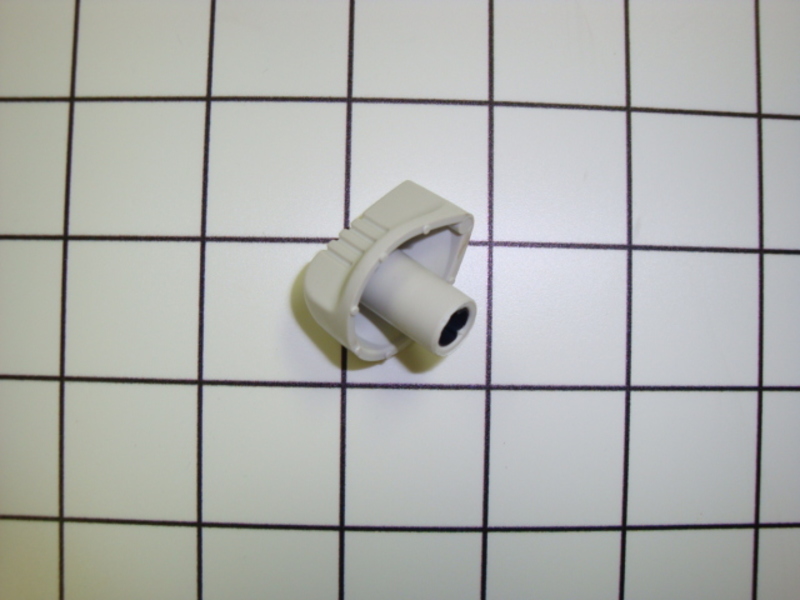

29	WP8031121	Knob (2)	$41.80 Special Order
