GE RGB528BEA1WH Parts List

Popular Searches: (Click to search)    2+0  asm  burner  burners  cap  double  end  handle  igniter  module  oven  overlay  pressure  regulator  safety  spark  thermostat  timer  top  valve


Select a Diagram

1 - Gas & Burner Parts

2 - Control Panel & Cooktop

3 - Body Parts

4 - Door & Drawer Parts

Select Diagram ... 1 - Gas & Burner Parts 2 - Control Panel & Cooktop 3 - Body Parts 4 - Door & Drawer Parts

1 - Gas & Burner Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WB28K10564	Conversion Kit L.p. Gas (Replaces: WB28K10042)	$17.10 Special Order
	31-20622	Manual-mini/elec. Diag.	Call for Availability
	49-5584	Manual-use & Care	Call for Availability
	WB2K20	Bracket Asm Anti-tip	$35.90  In-Stock Retail: $34.94

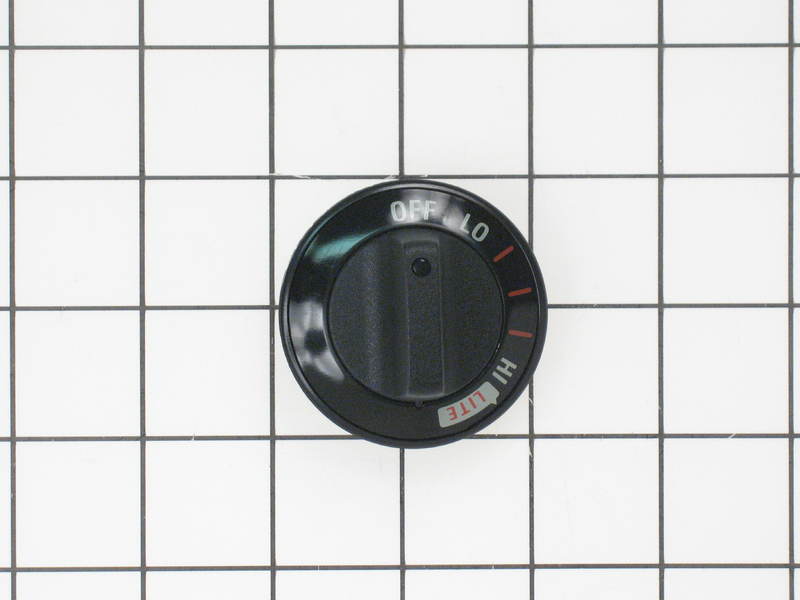

2	NLA ITEM	Knob-top Burners (blk)	Call for Availability
3	WB28K10033	Orifice Nat Gas	$19.90 Special Order
	WB28K85	Orifice Lp Gas (Replaces: WB28K8)	Call for Availability
4	WB16K10026	Double Burner (Replaces: WB16K10003)	$53.50  In-Stock Retail: $78.89
5	WB36K10141	Panel Manifold (blk)	$42.50 Special Order
6	WB2K9	Grommet	Call for Availability
8	WB01K10002	Screw 8-32	$20.80 Special Order
9	WB64K10001	Burner Box	$62.30 Special Order
10	NLA ITEM	Nut	Call for Availability
11	WB18X26988	Spark Electrode Top (Replaces: WB19K10075 WB19K20)	$14.50  In-Stock Retail: $14.11
14	WB28K10013	Manifold	Call for Availability
15	WB21K39	Valve-top Burners	$92.00 Special Order
16	WB19K10055	Regulator Pressure (Replaces: WB19K27)	$66.70  In-Stock Retail: $65.01
17	WB20K8	Thermostat	$177.10  In-Stock Retail: $281.96
18	NLA ITEM	Cover Thermostat	Call for Availability
19	WB1K8	Screw Thermostat	$10.50 Special Order
20	WB28K10010	Tube-burner Lft Front	$73.70 Special Order
	WB28K10009	Tube-burner Rt Front	$29.00 Special Order
	WB28K10012	Tube-burner Rt Rear	$20.50 Special Order
	WB28K10011	Tube-burner Lft Rear	$73.70 Special Order
21	WB1K83	Screw Mtg Valve Burner	$10.50 Special Order
25	NLA ITEM	Switch Rocker (blk)   (Replaces: WB24K3)	Call for Availability
28	WB1X1293	Screw Mtg Igniter (Replaces: WB1K50)	$10.50  In-Stock Retail: $10.22
214	WB19K31	Valve Safety Asm	$135.50  In-Stock Retail: $166.56
215	WB2K65	Bracket Safety Valve	$10.50 Special Order
216	NLA ITEM	Nut Lock	Call for Availability
217	WB16K10043	Oven Burner (Replaces: WB16K27)	$44.20 Special Order
218	WB13K21	Igniter Oven	$53.40  In-Stock Retail: $127.32
219	NLA ITEM	Flame Spreader	Call for Availability
237	WB28K147	Tube Valve Supply	$56.10 Special Order

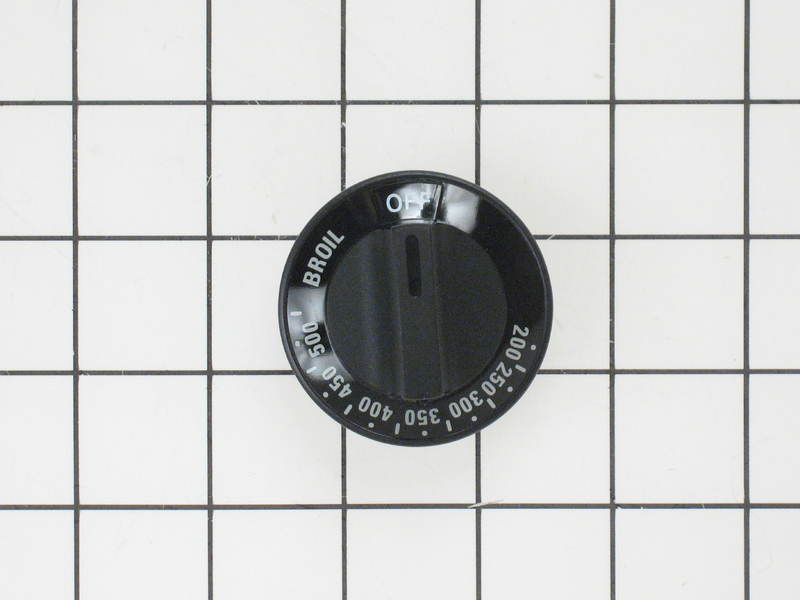

711	NLA ITEM	Knob-thermostat (blk)	Call for Availability
712	WB1K37	Screw	Call for Availability
