GE NVLR223GF1WO Parts List

Popular Searches: (Click to search)    asm  bearing  conv  door  drum  filter  gas  grey  idler  kit  lint  motor  orifice  pulley  safety  sleeve  slide  start  switch  top


Select a Diagram

1 - Controls, Backsplash, Blower & Motor

2 - Front Panel & Door

3 - Cabinet

4 - Drum

5 - Gas Valve & Burner Assembly

Select Diagram ... 1 - Controls, Backsplash, Blower & Motor 2 - Front Panel & Door 3 - Cabinet 4 - Drum 5 - Gas Valve & Burner Assembly

1 - Controls, Backsplash, Blower & Motor   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-16077	Instr Install (gas)	Call for Availability
	39-90289	Use & Care Manual	Call for Availability
	31-16112	Mini-manual Wiring	Call for Availability
2	WH46X10046	Support Switch	Call for Availability
3	WE19M1418	End Cap Lh Snow Wh	$21.80 Special Order
4	WE19M1419	End Cap Rh Snow Wh	Call for Availability
7	WE1M491	Timer Knobs Asm.	$15.00 Special Order
11	WH02X10089	Scr 8-18 Ab Flt 9/16 Sn	$10.50 Special Order
13	WE19M1472	Switch Trim "ge"	$69.40 Special Order
35	WE4M416	Start Switch (Replaces: WE4M367 WE4M352)	$16.40  In-Stock Retail: $24.32
41	WE1X980	U Clip	Call for Availability
72	NLA ITEM	Rear Panel	Call for Availability
75	WE2M173	Screw	$10.50 Special Order
100	NLA ITEM	Timer	Call for Availability
199	WE2M98	Screw	$10.50 Special Order
200	WE1X688	Clamp (Replaces: WE00M112)	$21.10 Special Order
	WE1X688	Clamp (Replaces: WE00M111)	$21.10 Special Order
201	WE16M15	Blower Wheel	$60.90  In-Stock Retail: $66.44
203	WE13X200	Strap Motor	$10.50 Special Order
204	WE1X921	Strap Motor	$41.50 Special Order
205	WE13M39	Motor Support	$39.00  In-Stock Retail: $38.02
213	WE03X29897	Belt Drive   (Replaces: WE12M29 WE12M22)	$34.70  In-Stock Retail: $48.14
215	WE03X20434	Idler Arm	$86.70  In-Stock Retail: $84.53
216	WE12X83	Pulley Idler (Replaces: WE12M8)	$16.10  In-Stock Retail: $20.44
218	WE14M93	Blower Housing	$31.00 Special Order
	WE1M473	Gasket Seal, Hsng Exh	$3.70 Special Order
228	WE14X20421	Pipe Exaust	$29.60 Special Order

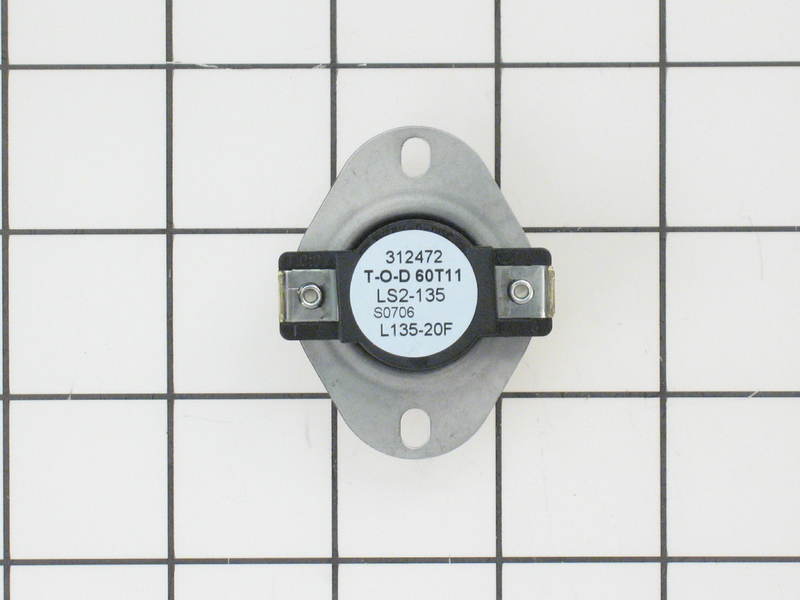

230	WE4M127	Thermostat Drum Out	$19.80  In-Stock Retail: $19.28
231	WD02X10057	Screw	$10.50  In-Stock Retail: $10.22
232	WE2M202	Screw	$10.60 Special Order
233	WE13M65	Motor Plate (e-coat)   (Replaces: WE13M35)	Call for Availability
234	WE2M96	Cap Nut	$10.20 Special Order
235	WE1M280	Screw	$10.50 Special Order
237	WD02X10057	Screw (Replaces: WE2M154)	$10.50  In-Stock Retail: $10.22
239	WR2X9260	Screw	$25.10  In-Stock Retail: $24.48
502	WE2M174	Screw #10	$10.60 Special Order
630	WE17X10010	Motor & Pulley Asm. (Replaces: WE17M22)	$191.50  In-Stock Retail: $208.88
631	WE1M650	Connector Motor	Call for Availability
803	WD21X10261	Switch Interlock (Replaces: WD21X557)	$21.80  In-Stock Retail: $21.25

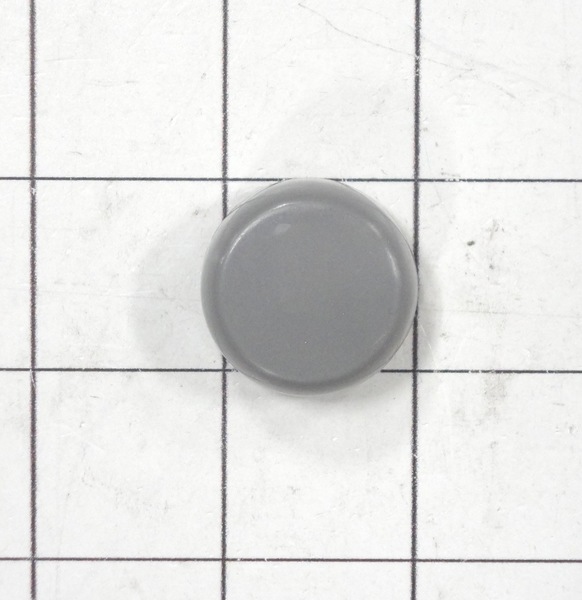

2232	WE1M551	Push Button & Clip Asm.	$9.30 Special Order
