GE NVL333EB3CC Parts List

Popular Searches: (Click to search) belt door drum dryer felt glide limiter lite lower start switch thermal

Select a Diagram

1 - Controls & Top Panel

2 - Front Panel & Door

3 - Cabinet & Drum

4 - Motor

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	31-15496	Mini Manual	Call for Availability
	49-9996	Use & Care Manual	$5.90 Special Order
7	WE02X10009	Clip-top Front/panel	$32.30 Special Order
8	WE02X10021	Scr 8-18 X .50 Flt Hd/sn	$5.00 Special Order
9	WE20X10010	Panel Back	$76.60 Special Order
15	WE4X881	Switch-start (Replaces: WE04X10033)	$50.20 In-Stock Retail: $60.48
18	WE19X10063	Trimplate	Call for Availability
19	WE19X10060	End Cap R.h.	$58.00 Special Order
20	WE19X10061	End Cap L.h.	$35.20 Special Order
23	WE08X10048	Harness	$287.90 Special Order
26	WE19X10035	Console Bottom	Call for Availability

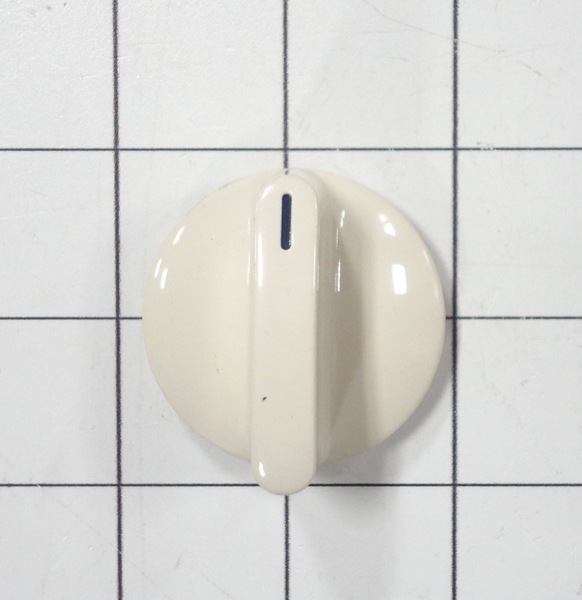

29	WE01X10149	Knob-selector	$37.60 Special Order
30	WE01X10034	Cover Plate	Call for Availability
31	WE01X10148	Knob-timer	$44.00 Special Order
36	WH02X10007	Scw #8 Pan Hd 10-10bx.50	$14.70 Special Order
50	WE08X10006	Ground Wire	$6.60 Special Order
53	WE20X10048	Panel-top	$93.50 Special Order

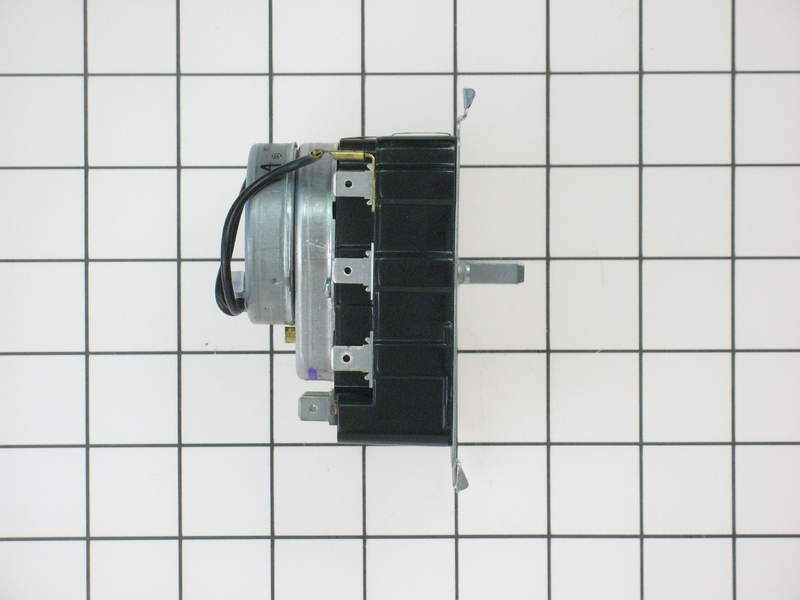

100	WE04X10042	Timer	$253.60 In-Stock Retail: $247.40
221	NLA ITEM	Screw, 8-18 X 1/2	Call for Availability
	NLA ITEM	Screw, 8-18ab X 0.375	Call for Availability
1113	WE4X744	Resistor,3.0k	$78.10 Special Order
1114	NLA ITEM	Resistor-power, 4.4k	Call for Availability
