Maytag ACS7270AS (BOM: PACS7270AS0) Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    67``  door  gasket  ground  hinge  infinite  oven  strap  switch


Select a Diagram

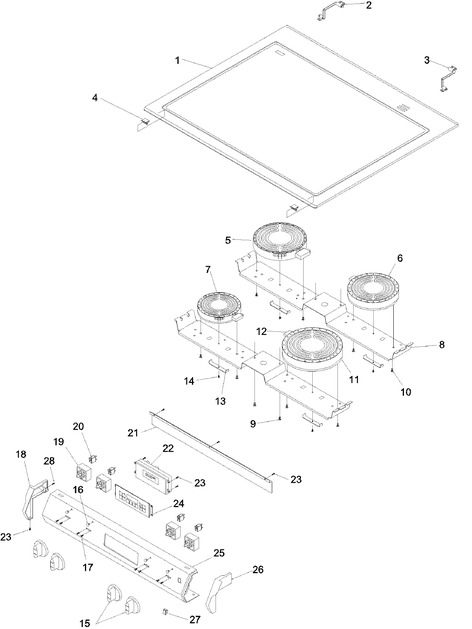

03 - Main Top And Backguard   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 32059907SS Main Top Assy (ss) Call for Availability
2 31769702 Hinge, Main Top (lt) Call for Availability
3 31769701 Hinge, Main Top (rt) Call for Availability
4 Y0316394 Clip, Spring Call for Availability
5 W10823710 W10823710 Element, Ribbon 8`` 240v/2000w Call for Availability
6 W10823699 W10823699 Element, Ribbon 7`` 240v/1500w Call for Availability
7 31938901 Element, Ribbon 6`` 240v/1200w Call for Availability
8 Y0316165 Bracket, Element Call for Availability
9 31750422 Screw, No.8-18 X 1/4 P Trs Hd Call for Availability
10 31750715 Screw, Shoulder Ab 6-20 X .825 Call for Availability
11 W10823726 Element, Dual Radiant Call for Availability
12 0316689 Limiter-dual Call for Availability
13 74008213 Spring, Element Call for Availability
14 W11245710 Screw, No.8-18x.406-.344 Waferhd Call for Availability
15 31926618B Knob, Switch (blk) Call for Availability
16 31780502 Lens, Indicator Light Call for Availability
17 31750714 Screw, No.8-32 X 1/4 Call for Availability
18 31742701B End Cap, Cont Pnl (lt-blk) Call for Availability
19 WP74011243 WP74011243 Switch, Infinite
(Replaces: 74008214 32069501) 		Call for Availability
20 WP903115 WP903115 Light, Indicator (125v) Call for Availability
21 0316650 Heat Shield, Control Panel Call for Availability
22 77001242 77001242 Erc, Control Module (Series: 01) Call for Availability
31949201 31949201 Control, Electronic Range (Series: 00) Call for Availability
23 31750315 Screw, No.6-20 X .375 Panhd(blk) Call for Availability
24 32061701B 32061701B Panel, Membrane Switch (blk) Call for Availability
25 77001172 Panel, Control-plain (ss) Call for Availability
77001173 Panel, Control-screened (ss) Call for Availability
32053301B Panel, Control-screened (blk) Call for Availability
26 31742704B End Cap, Cont Pnl (rt-blk) Call for Availability
27 WP31986601B WP31986601B Switch, Rocker (blk) Call for Availability
28 W11245710 Screw, No.8-18x.406-.344 Waferhd Call for Availability
NI Y0316164 Harness, Wire (radiant Top) Call for Availability
77001027 Harness, Wire Infinite/radiant Call for Availability
