GE ZISS48DCASS Parts List

Popular Searches: (Click to search)    arm  asm  bracket  crescent  damper  defrost  disp  door  drain  evap  heater  motor  pan  plunger  recess  solenoid  thermostat  timer  valve  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Freezer Section

5 - Ice Bucket Assembly

6 - Fresh Food Section

7 - Fresh Food Section

8 - Unit Parts

9 - Icemaker Wr30x0327

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Freezer Section 5 - Ice Bucket Assembly 6 - Fresh Food Section 7 - Fresh Food Section 8 - Unit Parts 9 - Icemaker Wr30x0327

8 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
257	WR9X502	Timer Defrost (Replaces: WR9X587)	$101.60  In-Stock Retail: $116.12
398	NLA ITEM	Nut Cond. Motor	Call for Availability
626	WR23X10300	Power Cord (Replaces: WR23X108)	$25.10 Special Order
650	WR60X187	Motor Cond Fan (Replaces: WR60X179)	$326.90  In-Stock Retail: $318.89
651	WR60X167	Fan Blade	Call for Availability
725	WR87X10226	High Side Asm (Replaces: WR87X464)	$730.80 Special Order
729	WR55X24065	Capacitor (Replaces: WR62X80)	$51.10  In-Stock Retail: $49.76
731	WR2X7226	Clamp-cover	$2.00 Special Order
733	NLA ITEM	Relay (ptcr)   (Replaces: WR7X253)	Call for Availability
734	WR2X7834	Cover Relay	Call for Availability
735	WR8X157	Overload	Call for Availability
740	WR86X25269	Dryer Filter Asm   (Replaces: WR86X96)	$63.10 Special Order
1063	NLA ITEM	Washer Rubber	Call for Availability
1330	WR1X1825	Screw Cond Hsg	Call for Availability
1551	WR1X5645	Screw Im Strap, Pan	$10.50 Special Order
1552	WR29X5175	Screw Cond. Shroud	$13.30 Special Order
1556	NLA ITEM	1/4 X 3/4 Flat Washer Ty	Call for Availability
1566	NLA ITEM	Washer Comp Mtg.	Call for Availability
2363	WR1X5684	Screw-housing	$9.30 Special Order
2969	WR1X5653	Screw-hinge, Pan	$5.00 Special Order
5550	NLA ITEM	Pan Refrigerator	Call for Availability

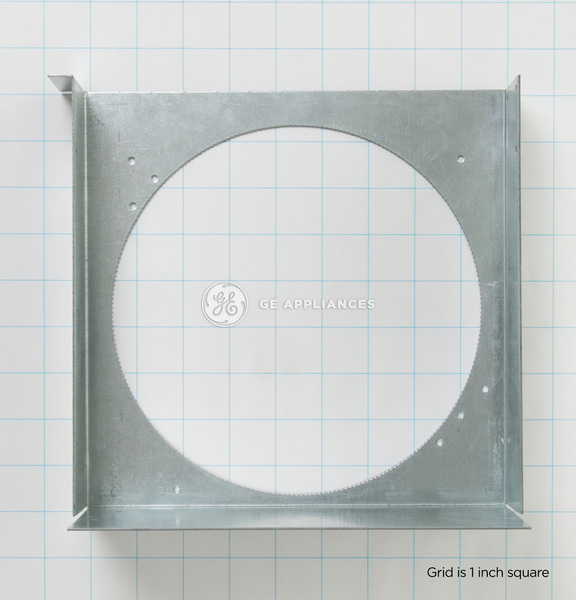

5551	WR17X3048	Shroud Cond	$47.60 Special Order
5555	WR17X3043	Pan Hot Gas	Call for Availability
5557	WR17X3044	Baffle Lh W/fg	$7.10 Special Order
5559	WR17X3045	Baffle Front W/fg	$95.00 Special Order
5573	WR2X8610	Bracket Roller Mtg	$10.40 Special Order
7344	WR14X313	Foam Strip	$21.10  In-Stock Retail: $20.58

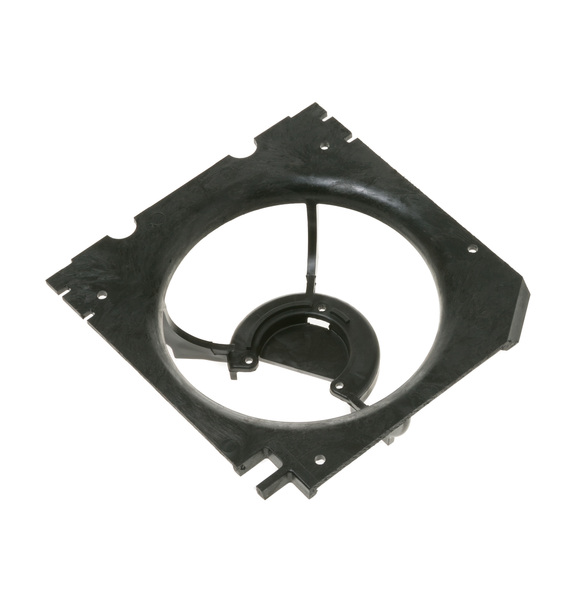

7439	WR17X3047	Housing Cond Fan	$456.20 Special Order

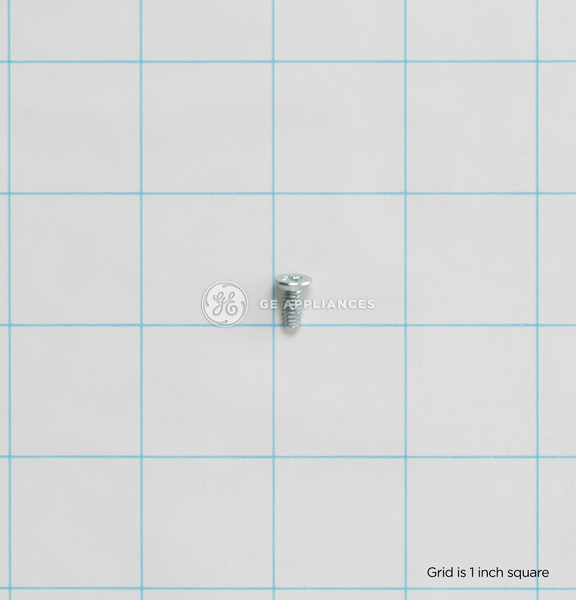

7758	WR1X1840	Screw Slide Mtg.	$7.40 Special Order
7795	WR2X7238	Grommet Comp Mtg	$10.50 Special Order
7796	WR1X5648	Steel Collar	$3.70 Special Order
8086	NLA ITEM	Harness Capacitor	Call for Availability

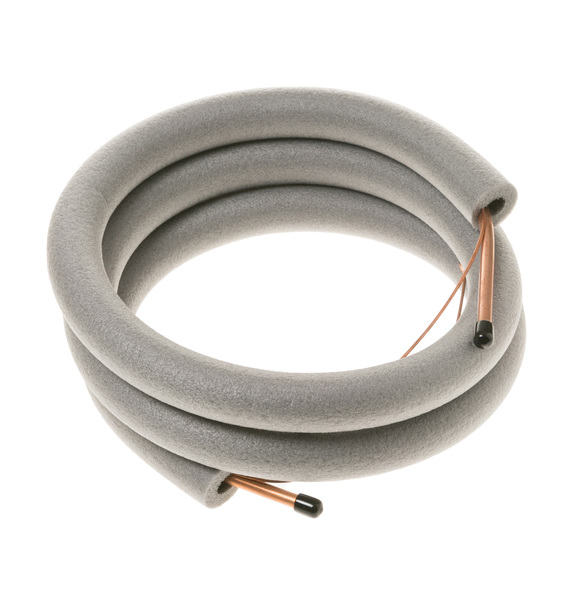

8644	WR86X105	Suction Capillary Tube	$338.70 Special Order
8649	WR84X212	Condenser Asm	$456.90 Special Order
