GE ZISS48DCASS Parts List

Popular Searches: (Click to search)    arm  asm  bracket  crescent  damper  defrost  disp  door  drain  evap  heater  motor  pan  plunger  recess  solenoid  thermostat  timer  valve  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Freezer Section

5 - Ice Bucket Assembly

6 - Fresh Food Section

7 - Fresh Food Section

8 - Unit Parts

9 - Icemaker Wr30x0327

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Freezer Section 5 - Ice Bucket Assembly 6 - Fresh Food Section 7 - Fresh Food Section 8 - Unit Parts 9 - Icemaker Wr30x0327

5 - Ice Bucket Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
87	WZ04X0241	Screw Im Brkt	Call for Availability
320	WR1X1585	Nut Auger	Call for Availability
321	WR1X1367D	Retainer Ring E (Replaces: WR1X1367)	$15.70 Special Order
325	WR17X2061	Housing Crusher Disp	$40.90  In-Stock Retail: $39.85
326	WR1X1366D	Washer (Replaces: WR1X1366)	$34.50  In-Stock Retail: $33.62
328	NLA ITEM	Spring Ice Deflector	Call for Availability
	NLA ITEM	Deflector Ice Disp	Call for Availability
	WR2X4143	Pin Deflector Disp	Call for Availability
329	WR17X2060	Wire Actuator Disp	$31.30 Special Order
330	NLA ITEM	Spring	Call for Availability
331	NLA ITEM	Retainer Actuator Wire	Call for Availability
332	WR17X1361	Blades Moving Disp	$16.00 Special Order
333	WR17X1362	Blades Moving Disp	$18.50  In-Stock Retail: $17.96
334	WR17X1363	Blades Moving Disp	$14.20  In-Stock Retail: $13.78
335	WR2X4139	Spacer	Call for Availability
336	WR17X2216	Blade Stationary Disp (Replaces: WR17X1009)	Call for Availability
337	WR2X4138	Spacer Crusher Stationar	$17.50 Special Order
338	WR2X4140	Blade Rest Disp	$13.80 Special Order
339	WR2X4141	Pin Spiral	$6.90 Special Order
340	WR17X2058	Blade Stationary Disp	$15.70  In-Stock Retail: $15.30
345	NLA ITEM	Plate Front Disp	Call for Availability
346	WR17X4207	Helix Front Disp	$38.60 Special Order
348	NLA ITEM	Blade In Disp   (Replaces: WR2X7351)	Call for Availability
349	WR2X4550	Cup Drive Dispenser	$21.80 Special Order
350	NLA ITEM	Auger Helix Disp   (Replaces: WR17X4309)	Call for Availability
352	WR30X256	Bucket Ice	$103.60 Special Order
353	WR2X7905	Bucket Seal Disp	$13.40 Special Order
354	WR17X4312	Bucket & Auger Asm Disp	$286.80  In-Stock Retail: $279.72
360	WR71X5728	Shelf Bucket Btm Disp.	$20.70 Special Order
361	NLA ITEM	Cover Motor Solenoid	Call for Availability
363	NLA ITEM	Support Twist	Call for Availability
364	WR2X7310	Supp0rt Twist	$22.40 Special Order
365	NLA ITEM	Drive Auger Dispenser	Call for Availability
366	NLA ITEM	Nut J   (Replaces: WR1X1547)	Call for Availability
367	WR2X8459	Bracket Im Mtg	$41.50 Special Order
368	WR01X10618	Scr Mtr Mnt 8-18 Tpt 1/4	$10.50 Special Order
369	WR60X10262	Motor Crusher Disp (Replaces: WR60X10236 WR60X202)	$200.50  In-Stock Retail: $195.56
376	WR23X189	Receptacle-harness	Call for Availability
377	WR2X7309	Saddle Solenoid	$10.50 Special Order
378	WR62X23154	Solenoid Arm Asm (Replaces: WR62X58)	$94.50  In-Stock Retail: $115.68
379	WR17X1063	Shroud Solenoid	$42.60 Special Order
380	WR62X23154	Plunger Solenoid (Replaces: WR17X1064)	$94.50  In-Stock Retail: $115.68
381	WR62X26536	Pin Spiral (Replaces: WR2X4257)	$57.70  In-Stock Retail: $56.25
382	WR62X26536	Spring Solenoid Linkage	$57.70  In-Stock Retail: $56.25
383	WR62X26536	Collar Solenoid Disp (Replaces: WR17X1065)	$57.70  In-Stock Retail: $56.25
384	WR62X26536	Stirrup Solenoid Disp (Replaces: WR17X1066)	$57.70  In-Stock Retail: $56.25
385	WR62X26536	Pin Spiral (Replaces: WR2X4259)	$57.70  In-Stock Retail: $56.25

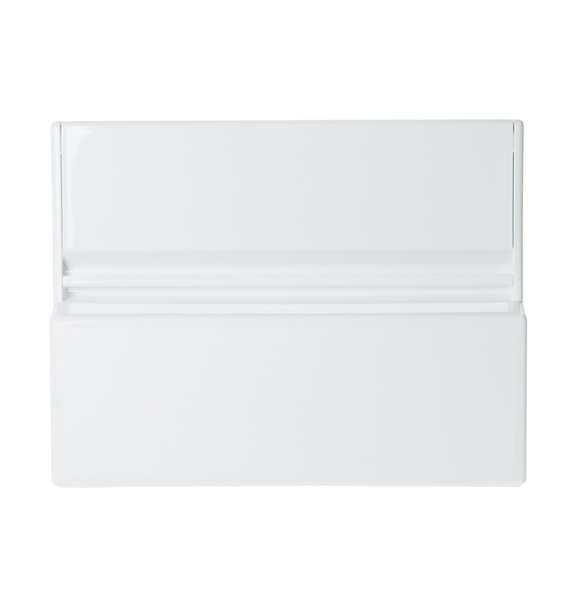

387	WR17X3439	Cover & Door Asm	$72.90 Special Order
1313	WR30X10093	Im Crescent (Replaces: WR30X327)	$206.20  In-Stock Retail: $288.05

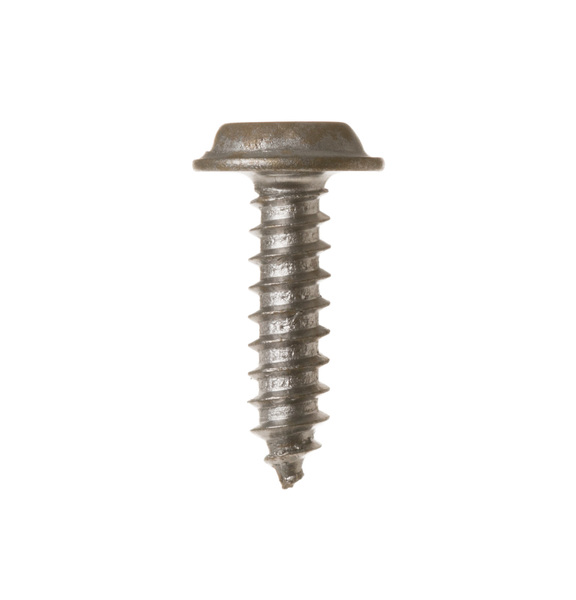

2612	WR1X1937	Screw Cover Bucket Asm.	$10.00 Special Order
7648	WR2X8964	Auger Mtr Wire Harness	$14.80 Special Order
