Maytag ACF3335AB (BOM: PACF3335AB1) Parts List

Popular Searches: (Click to search)    bake  blk  broil  burner  degree  0  ignitor  knob  module  spark


Select a Diagram

01 - Cabinet

02 - Cavity And Backguard

03 - Maintop And Gas Supply

04 - Oven Door And Storage Drawer

Select Diagram ... 01 - Cabinet 02 - Cavity And Backguard 03 - Maintop And Gas Supply 04 - Oven Door And Storage Drawer

04 - Oven Door And Storage Drawer   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

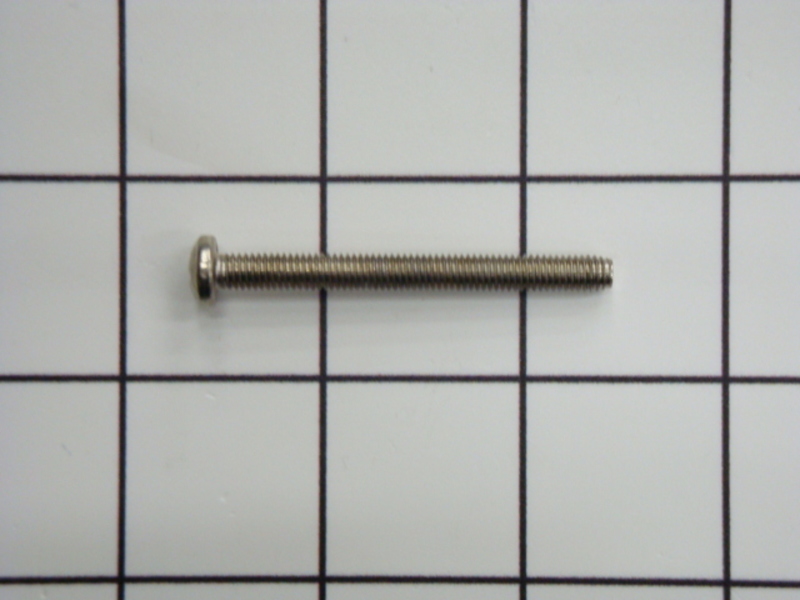

1	31750529	Screw, 10-32 X 2.00``	Call for Availability
2	31932204CG	Backer, Oven Door (xxl)	Call for Availability
3	31750530	Screw, 10-24x .500 Trhdwh(blk)	$4.40 Special Order
4	31750434	Screw, 8-32 X .312 Trhdwh(blk)	$4.40 Special Order
5	31942001	Frame, Window Pack (xxl)	Call for Availability
6	32050701	Window Brkt, Dr Ht Shield	Call for Availability
7	32050601	Window Brkt, Dr Ht Shield	Call for Availability
8	31942201	Glass, Window (xxl)	Call for Availability
9	77001126	Heat Shield, Backer	$26.20 Special Order
10	WP98008545	Screw, No.8-18 X .500``	$11.60  In-Stock Retail: $11.31
11	31946401B	Trim, Top Door (blk)	$67.80 Special Order
12	31944507B	Trim, Side Door Lt (blk)	Call for Availability
13	32035001	Cushion, Glass (3/8 X 3/8)	Call for Availability
14	31947901	Bushing, Door Handle (blk)	$4.40 Special Order
15	31941302B	Shield, Heat Dr Glass	Call for Availability
16	31946701B	Glass, Oven Door (blk)	Call for Availability
17	31935501B	Handle, Door (blk)	Call for Availability
18	W11245710	Screw, No.8-18 X 3/8 P Trs Hd Lp	$8.70 Special Order
19	31944603B	Angle, Glass Support (blk)	Call for Availability
20	31944503B	Trim, Side Door Rt (blk)	Call for Availability
21	31946302	Hinge, Oven Door (xxl)	Call for Availability
22	Y12528501	Nameplate, Amana Plus	$37.70 Special Order
23	31942902W	Wrapper, Storage Drwr-gas(wht)	Call for Availability
24	22004193	Nut, Lock (center) No.10-32 (zn)	$4.40 Special Order
25	31733401	Roller, Drawer	$4.50 Special Order
26	31750717	Bolt, Shoulder 10-32	$4.40 Special Order
27	31733301	Track, Storage Drawer	Call for Availability
28	Y0063661	Bumper, Oven Door	$0.50 Special Order
29	31750706	Screw, No.8 X .375 Wafer Hd(blk)	Call for Availability
30	31937702B	Drawer Panel-gas (blk)	Call for Availability
31	31942702B	Liner, Storage Drwr-gas (blk)	Call for Availability
32	Y0097822	Rivet, Pop	$4.40 Special Order
NI	31947603	Insulation, Door (xxl) Window	$4.40 Special Order
	31750016	Washer, Fiber (.188 Id/.500 Od	$4.40 Special Order
	31750706	Screw, No.8 X .375 Wafer Hd(blk)	Call for Availability
	31947602	Insulation, Door (xxl) Window	Call for Availability
