GE WHRE5260E0CC Parts List

Popular Searches: (Click to search)    air  asm  bearing  bell  coupling  damping  drain  external  hose  hub  mch  nut  pump  ring  rod  scr  seal  split  strap  tub


Select a Diagram

1 - Controls & Backsplash

2 - Cabinet, Cover & Front Panel

3 - Tub, Basket & Agitator

4 - Suspension, Pump & Drive Components

Select Diagram ... 1 - Controls & Backsplash 2 - Cabinet, Cover & Front Panel 3 - Tub, Basket & Agitator 4 - Suspension, Pump & Drive Components

1 - Controls & Backsplash   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-15533	Pm Sheet Mini Manual	Call for Availability
	49-90197	Pm Manual U&c P49-90197	Call for Availability
	31-15441	Pm Instruction Install	Call for Availability
2	WH46X10096	Support Switch   (Replaces: WH46X10048)	$48.30 Special Order
3	WH42X10311	End Cap Lh	$14.20 Special Order
4	WH42X10312	End Cap Rh	$11.40 Special Order

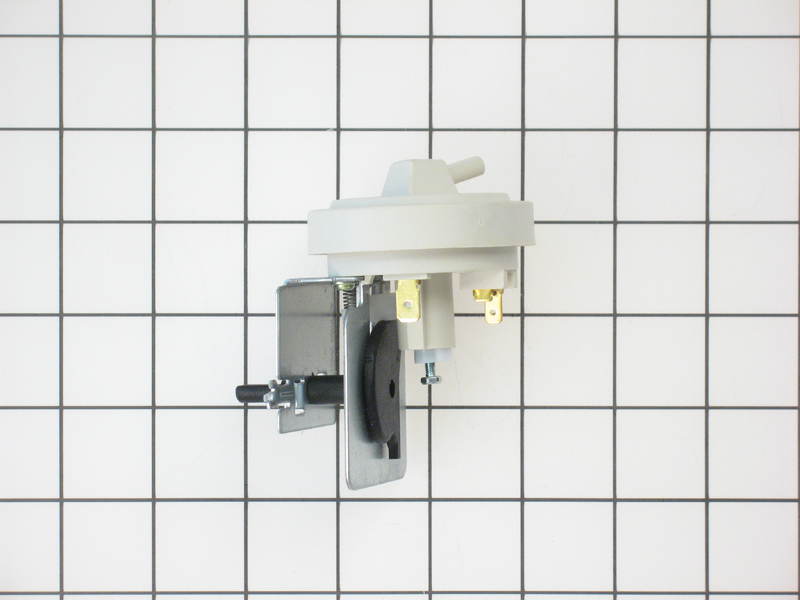

10	WH12X10093	Switch Pressure	$56.60 Special Order
11	WH02X10089	Scr 8-18 Ab Flt 9/16 Sn	$10.50 Special Order
13	WH42X10541	Control Panel Asm	$75.80 Special Order
19	WH01X10060	Knob & Clip Asm Bq	$15.30  In-Stock Retail: $20.48
	WH01X10060	Knob & Clip Asm. Bq/chr (Replaces: WH01X10135)	$15.30  In-Stock Retail: $20.48
21	WH01X10088	Switch Start/stop	$15.70 Special Order
25	WH12X10268	Thermistor Probe Atc	Call for Availability
29	WH02X10054	Wire Saddle	$20.50 Special Order

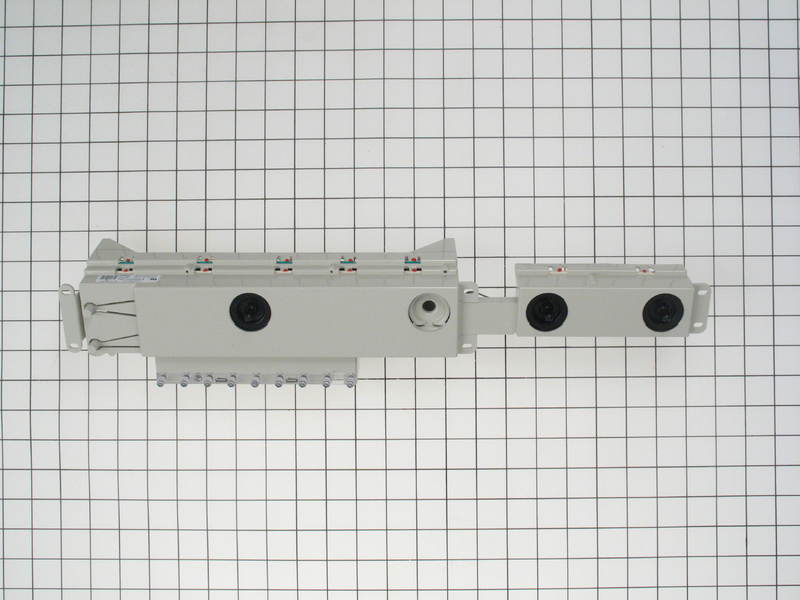

35	WH12X10323	Control Asm (Replaces: WH12X10270)	Call for Availability
36	NLA ITEM	Connector, Model Select	Call for Availability
41	WH01X10106	Clip Knob (Replaces: WE1X980)	$10.00 Special Order
	WH01X10106	Clip Knob	$10.00 Special Order
71	WH2X1205	Scr 8-18 B 1/2 Hxw P	$10.50 Special Order
72	WH46X10083	Panel Back	Call for Availability
151	WH02X10126	Scr 8-18 B 1hw 1/2 Sn	$10.50 Special Order
556	NLA ITEM	Housing Terminal	Call for Availability
557	NLA ITEM	Cordset Asm	Call for Availability
627	WH12X10208	Self Locking Strain Relf	$10.50 Special Order
769	WB1X500D	Scr 8-18 B Hxw 1/4 S	$10.10 Special Order
790	WH1X2036	Clamp Hose	$15.70 Special Order

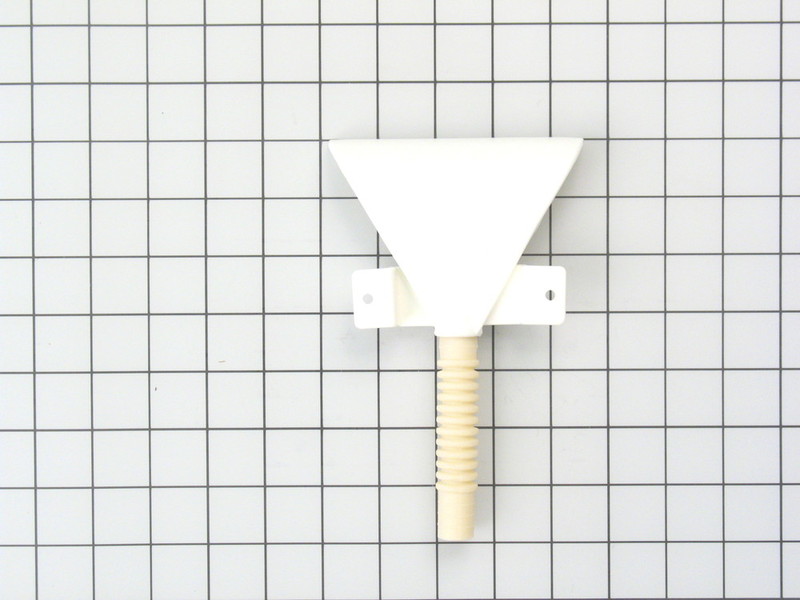

803	WH41X10078	Hose & Water Inlet	$17.10 Special Order
805	WH13X10024	Valve Asm Water (Replaces: WH13X86)	$78.70  In-Stock Retail: $99.56
807	WH2X42D	Washer Flat (Replaces: WH02X10161)	$10.50 Special Order
808	WH41X10207	Hose Inlet Asm (Replaces: WH41X10095)	$15.80 Special Order
	WH41X10207	Hose Inlet Asm	$15.80 Special Order
811	WH41X365	Hose Pressure Switch	$14.50  In-Stock Retail: $14.11
