GE TBXY14SPHLWH Parts List

Popular Searches: (Click to search)    40w  asm  cap  cond  control  cover  defrost  door  fan  foam  frt  frz  gasket  lamp  low  motor  pan  shelf  spacer  stationary


Select a Diagram

1 - Component Group

2 - Component Group

3 - Component Group

Select Diagram ... 1 - Component Group 2 - Component Group 3 - Component Group

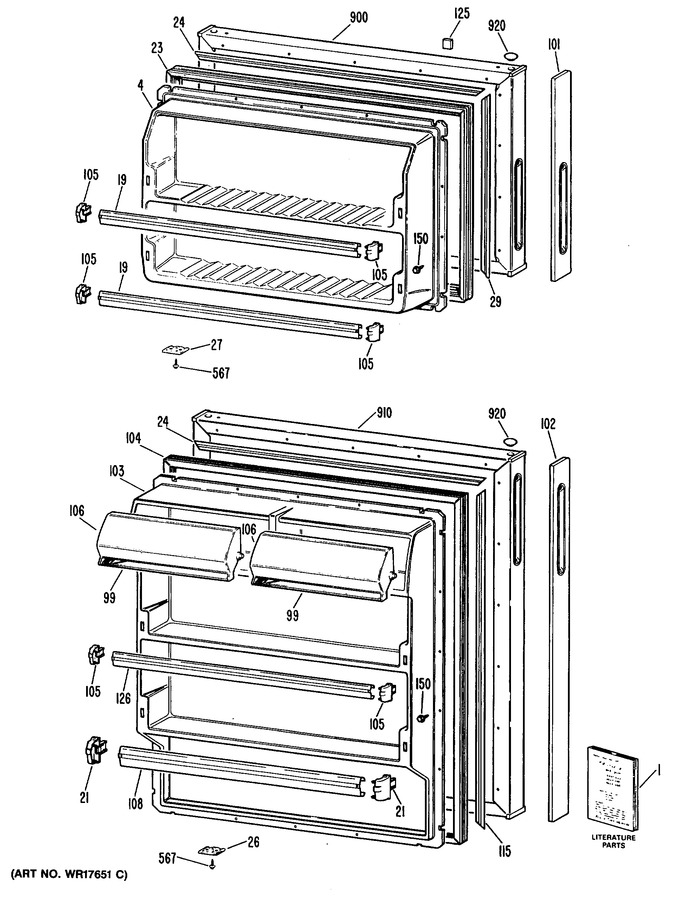

1 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31-5036	Attention Installer	$10.30 Special Order
	49-6598	Owners Guide	Call for Availability
	SR2695	Mini Manual	Call for Availability
4	WR77X550	Door Inner Fz	Call for Availability
19	WR17X2296	Front Door Shelf Ge Sm   (Replaces: WR71X1999)	$23.90 Special Order
21	WR2X8345	Cap Shelf Frt	$26.10 Special Order
23	WR24X10228	Frz Door Gasket (Replaces: WR24X484)	$73.50  In-Stock Retail: $92.81
24	WR2X8235	Retainer Strip H	Call for Availability
26	WR2X8241	Stop Door	Call for Availability
27	WR2X8264	Stop Door Fz	$13.50 Special Order
29	WR2X8236	Retainer Strip V	$32.80 Special Order
99	WR38X1411	Trim Bright	$8.80 Special Order
101	WR38X1533	Handle Pocket Door Fz Wh	$28.70 Special Order
102	WR38X1540	Handle Pocket Door Ff	$27.30 Special Order
103	WR77X549	Door Inner Ff	$76.60 Special Order
104	WR24X10231	Ff Door Gasket (Replaces: WR24X10049 WR24X485)	$77.20  In-Stock Retail: $94.29
105	WR2X9162	Cap Shelf Frt (Replaces: WR2X8413)	$15.20 Special Order
106	WR22X432	Door Dairy	Call for Availability
108	WR71X1998	Front Door Shelf Ge Lg	Call for Availability
115	NLA ITEM	Retainer Strip V	Call for Availability
125	WR4X194	Nameplate Door Ge Wh	$22.60 Special Order
126	WR71X2000	Front Door Shelf Ge Sm	$17.60 Special Order
150	WR1X1791D	Screw	$24.60 Special Order
566	WR01X10590	Screw	$10.50  In-Stock Retail: $10.22
750	WR1X1786	Screw	$10.50 Special Order
900	WR78X8244	Fz O.door Wh W/o Trim	$143.70 Special Order
910	WR78X8242	Ff O. Door Wh W/o Trim	$218.30 Special Order
920	WR2X8233	Plug Button (wh)	$10.50 Special Order
