GE TBX22RKBR Parts List

Popular Searches: (Click to search)    40w  asm  blade  cond  cord  defrost  evap  fan  heater  lamp  motor  power  screw  socket  terminal


Select a Diagram

1 - Component Group

2 - Component Group

3 - Component Group

4 - Component Group

5 - Component Group

Select Diagram ... 1 - Component Group 2 - Component Group 3 - Component Group 4 - Component Group 5 - Component Group

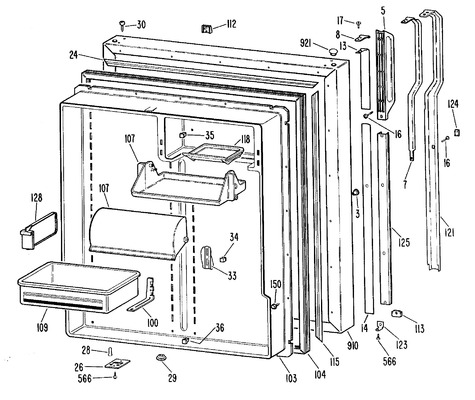

2 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
3	WR2X3757	Fastener Tubular	Call for Availability
5	WR12X561	Handle Door	$92.50 Special Order
7	WR12X555	Stiffener Handle	$131.40 Special Order
8	WR2X7693	Shim Door Handle	$4.10 Special Order
13	WR2X7787	Shim Handle Door	$19.00 Special Order
14	WR1X1551	Nut Pal	Call for Availability
	WR2X7789	Shim Handle Door	Call for Availability
	WR38X1043	Trim Recess Asm Disp(sl)	Call for Availability
16	WR1X1724D	Screw   (Replaces: WR1X1724)	$21.60 Special Order
18	WR1X1740	Screw Black	$2.50 Special Order
24	WR17X2237	Retainer Strip H	$21.20 Special Order
26	WR2X9016	Stop Door	Call for Availability
28	WR2X7627	Door Thimble	Call for Availability
29	WR2X7618	Plug Button White	Call for Availability
30	WR1X5475	Screw	$20.70 Special Order
33	WR51X253	Heater Recess & Duct Asm	Call for Availability
	WR72X102	Track Module Ff	Call for Availability
34	WR2X3951	Spring-recess Duct	$5.00 Special Order
35	WR2X4822	Plunger Screw & Sleeve	$19.20 Special Order
	WR12X577	Insert & Nameplate Asm	Call for Availability
100	WR2X7688	Hook Module	$23.90 Special Order
103	WR77X495	Ff Inner Door	Call for Availability
104	WR24X444	Gasket Door Ff	$157.50 Special Order
107	WR22X350	Dairy Door Asm	Call for Availability
	WR22X351	Dairy Door Extension	$58.50 Special Order
109	WR71X1807	Module Asm	Call for Availability
112	WR4X180	Nameplate Dr Rsv(wh)	Call for Availability
113	WR2X7611	Cap Trim Handle Btm	Call for Availability
115	WR17X2238	Retainer Strip V	$29.40 Special Order
118	WR19X29	Dish Butter	$14.50 Special Order
121	WR12X635	Insert Door Handle	Call for Availability
123	WR2X7615	Trim Handle Btm	$17.80 Special Order
124	NLA ITEM	Plug Button Insert Blk	Call for Availability
125	WR12X575	Channel Handle	Call for Availability
128	WR2X7687	Divider Module	Call for Availability
150	WR1X1791D	Screw	$24.60 Special Order
566	WZ4X288D	Screw	$22.40 Special Order
910	WR78X7970	Ff O.door (ha)	Call for Availability
	WR78X7969	Ff O.door (ad)	Call for Availability
	WR01X21159	Ff O.door (wh)   (Replaces: WR78X7968)	$10.50 Special Order
921	WR2X7624	Plug Button White	$4.10 Special Order
