GE TBX18ZRBRWH Parts List

Popular Searches: (Click to search)    asm  blade  cap  cond  control  cord  defrost  door  evap  fan  frt  gasket  heater  motor  pan  power  screw  shelf  slide  veg


Select a Diagram

1 - Component Group

2 - Component Group

3 - Component Group

Select Diagram ... 1 - Component Group 2 - Component Group 3 - Component Group

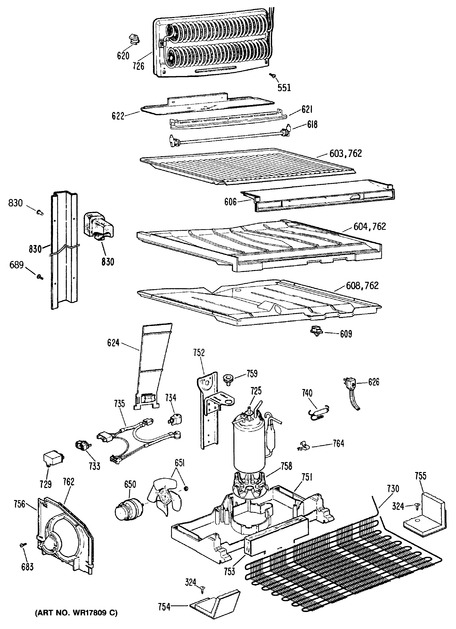

3 - Component Group   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
603	WR17X2275	Liner Btm Fz	$143.50 Special Order
604	WR17X2773	Insul Divider	$60.80 Special Order
606	WR17X2385	Front Liner Fz	$71.10 Special Order
608	WR17X2774	Liner Top Ff	Call for Availability
609	WR23X37285	Switch Light Wh   (Replaces: WR23X10143 WR23X10725 WR23X193)	$26.20  In-Stock Retail: $10.22
618	WR51X464	Defrost Heater (Replaces: WR51X367 WR51X319)	$153.00 Special Order
620	WR50X60	Thermostat Def	$9.80  In-Stock Retail: $36.13
621	WR2X7846	Bracket Def Htr	Call for Availability
622	WR17X2283	Trough Drain	$80.70 Special Order
	WR14X357	Gasket Trough	$28.10 Special Order
624	WR17X2270	Cover Ff Supply	Call for Availability
626	WR23X10300	Power Cord Asm (Replaces: WR23X108)	$25.10 Special Order
	WR1X5278	Clamp Cable	$10.50 Special Order
650	WR60X187	Motor Cond Fan	$326.90  In-Stock Retail: $318.89
651	WR60X193	Blade Cond Fan	Call for Availability
	NLA ITEM	Nut	Call for Availability
	NLA ITEM	Washer	Call for Availability
683	WR1X1825	Screw	Call for Availability
729	WR62X51	Capacitor (Replaces: WR62X46)	$90.80 Special Order
733	WR7X222	Relay (Replaces: WR7X203)	$42.00 Special Order
735	WR8X87	Guardette Asm.	Call for Availability
751	WR17X2088	Unimount High Side	Call for Availability
752	WR17X2087	Brace Comp.	$55.00 Special Order
753	WR17X2084	Baffle Center Asm	Call for Availability
754	WR17X2523	Baffle Asm Lh	$9.40 Special Order
755	WR17X2268	Baffle Asm Rh	$16.90 Special Order
756	WR17X3005	Housing Cond Fan Asm	Call for Availability
758	WR17X2091	Pad-comp.	$36.50 Special Order
762	WR14X313	Foam Strip	$21.10  In-Stock Retail: $20.58
764	WR2X7667	Clip Cond	Call for Availability
830	WR17X3056	Cover Suct Line	$24.50 Special Order
	WR1X1841	Pop Rivet	$5.00 Special Order
