GE PTS22LBMARAA Parts List

Popular Searches: (Click to search) 60w appl asm blade comp cond def defrost evap fan grommet heater lamp lid motor sanyo sensor temperature thermostat tubes

Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Fresh Food Section

6 - Shelves

7 - Case Parts

8 - Sealed System & Mother Board

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
10	WR1X2084	Screw	Call for Availability
11	WR12X10166	Handle Door Asm Ff Ad	$43.80 Special Order
12	WR01X10036	Scr 10-14 Pl Pnp 3/4 Szn	Call for Availability
13	WR02X10917	Stop Door Ad	Call for Availability
14	WR12X10479	Tail & Bracket Asm	Call for Availability
15	WR12X10474	Trim Handle Ff	$24.70 Special Order
18	WR1X1726D	Scr 10-16 Ab 3/4 Ss (Replaces: WR1X1726)	$34.50 In-Stock Retail: $33.62
24	WR24X10077	Gasket Ltm Ff Door	$184.00 Special Order
28	WR02X10918	Thimble Door Plastic Ad	Call for Availability
31	WR02X10919	Thimble Door Plastic Ad	Call for Availability
36	WR02X10916	Cap Door Bottom Ad	Call for Availability
37	WR02X10915	Cap Door Bottom Ad	Call for Availability
40	WR02X10912	Cap Corner Top Ad	Call for Availability
41	WR02X10911	Cap Corner Top Ad	Call for Availability
106	WR22X10028	Door Dairy Clear 22	Call for Availability
109	WR71X10317	Module Shelf Ff	Call for Availability
111	WR71X10319	Module Shelf Insert	Call for Availability
112	WR2X8697	Plug Door Rvsbl Ad	$7.40 Special Order
118	WR19X10002	Dish Butter	$8.40 Special Order
124	WR12X10168	Plug Button Handle Ad	$1.40 Special Order

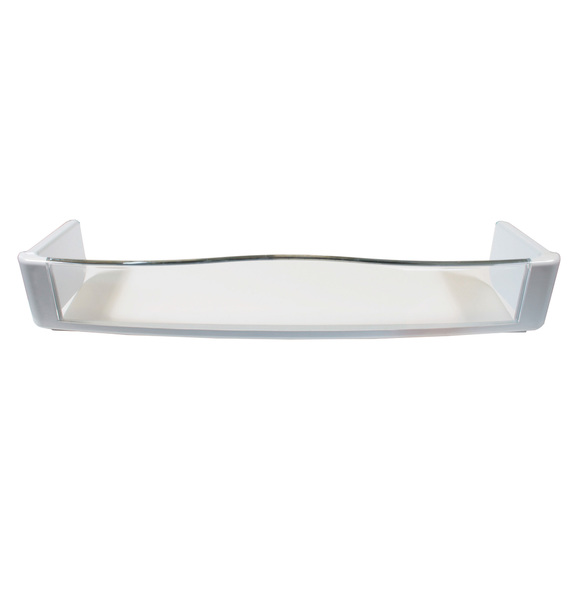

127	WR71X10316	Module Shelf Fixed Ff	Call for Availability
128	WR02X10582	Snugger (Replaces: WR02X10639)	$15.70 Special Order
904	WR01X10610	Scr 10-32 Pnt 1.0 S Lw	$10.50 Special Order
910	WR78X10490	Door Foam Asm Ff Ad	Call for Availability
921	WR02X10921	Plug Button Thimble Ad	Call for Availability
