3 - Fresh Food Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
7	WR12X10430	Handle Sxs Asm Bk	$112.50 Special Order
12	WR02X13425	Stop Door Bk (Replaces: WR02X10814)	$15.70 Special Order
16	WR02X10779	Cam Closure Ff Bk	$13.80 Special Order
100	WR17X10806	Rack Beverages	Call for Availability
101	WR02X10040	Fastener Rectangular	$10.00 Special Order
102	NLA ITEM	Fastener Tubular	Call for Availability
103	WR24X20456	Gasket Door Ff Bk (Replaces: WR24X10157)	$85.60  In-Stock Retail: $83.49
104	WR04X10111	Nameplate Profile	$15.20 Special Order
106	WR22X10046	Door Dairy Clear	$79.20 Special Order
107	WR22X10045	Compartment Dairy	$75.20 Special Order
109	WR71X10979	Module Shelf Ff (Replaces: WR71X10244)	$58.10  In-Stock Retail: $56.67
112	WR02X10582	Snugger   (Replaces: WR02X10639)	$15.70 Special Order
113	NLA ITEM	Trim Asm Cmk Bk	Call for Availability

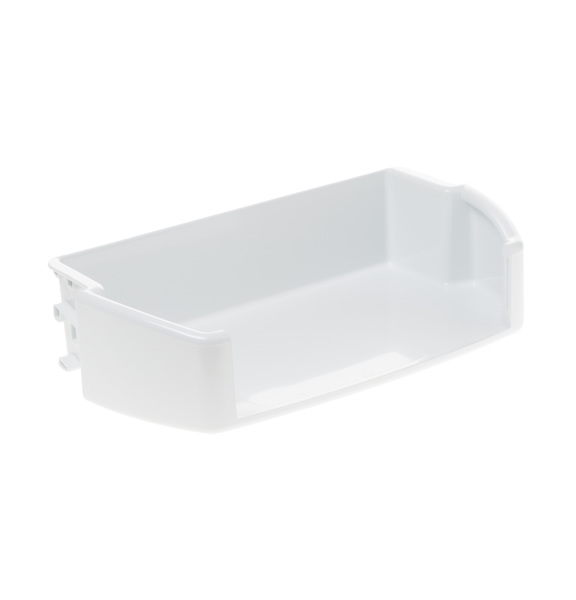

115	WR71X10245	Module Shelf Ff	$101.20 Special Order
116	WR22X10047	Trim Diary Compartment	$17.50 Special Order
120	NLA ITEM	Door Foam Asm Cmk Bk	Call for Availability
121	WR12X10430	Trim Handle Lower Bk	$112.50 Special Order
126	WR24X10085	Gasket Cmk Door	$16.60 Special Order
127	WR71X10764	Module Shelf Insert (Replaces: WR71X10380)	$34.40 Special Order
128	WR13X10005	Hinge Arm Asm Cmk	$78.50 Special Order
129	WR02X10035	Cap Hinge Arm	$9.30 Special Order
130	WR02X10032	Bracket Switch Cmk	$23.40 Special Order
131	NLA ITEM	Scr 10-24 Tx 11/16	Call for Availability
132	WR02X10037	Stop Hinge Arm	$24.00 Special Order
133	WR02X10033	Trigger Cmk Door	$13.40 Special Order
134	WR01X10019	Scr 6-10 Pl Flp 1/2 S	$10.50 Special Order
136	NLA ITEM	Handle Cmk Door Bk	Call for Availability
138	WR02X10840	Latch Cmk Door	$12.00 Special Order
139	WR02X10659	Spring Leaf Lh	$9.30 Special Order
140	WR02X10660	Spring Leaf Rh	$9.80 Special Order
141	WR02X10652	Bracket Retainer Rh	$9.30 Special Order
	WR02X10651	Bracket Retainer Lh	$9.30 Special Order
142	WR02X10045	Bushing Cmk Door Bk	$10.50 Special Order
143	WR02X10041	Stud Hinge Arm	$13.10 Special Order
152	NLA ITEM	Scr 8-18 Ab Fltr 5/8 S	Call for Availability
154	NLA ITEM	Scr 8-18 Ab Rnt20 5/8 S	Call for Availability
155	WR02X10643	Bracket Handle Lock	$15.70 Special Order
158	WR02X10646	Tail Mtng Hndl Retnr	$10.50  In-Stock Retail: $10.22
299	WR71X10353	Retainer Bottle	$44.20 Special Order
600	WR23X10027	Micro Switch	Call for Availability
601	WR02X11459	Trim Inner Door Cmk	$18.70 Special Order
603	WR02X11483	Tape Foam Large	$10.50 Special Order
604	WR02X11484	Tape Foam Short	$9.30 Special Order
904	WR01X10611	Screw Door Stop T20	$10.50  In-Stock Retail: $10.22
910	WR78X10576	Door Foam Asm Ff Ss	$780.90 Special Order
911	WR01X10956	Thimble Door Top Bk (Replaces: WR01X10233)	$10.50 Special Order
912	WR01X10232	Thimble Door Btm Bk	$10.50 Special Order
